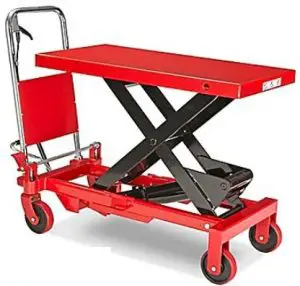

ULINE H-1783 Lift Table 40×20″ User Manual

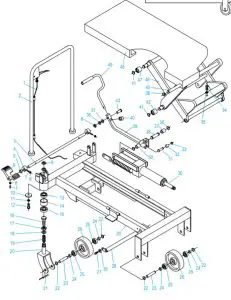

Product overview
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Pull Rod | 1 | H-1783-PLROD | SP800-PT#1 |
| 2 | Handle Bar | 1 | ———– | SPA101 |
| 3 | Rod | 1 | H-1783-ROD15 | SP700-15 |
| 4 | Cam | 2 | H-1783-CAM14 | SP700-14 |
| 5 | Retaining Ring | 1 | H-1783-RR13 | SP-700-13 |
| 6 | Pedal | 1 | H-1783-PEDAL | SP700-12 |
| 7 | Screw M8x20 | 3 | ———– | GB77-85 |
| 8 | Nut M8 | 4 | H-1783-NUTM8 | GB41-86 |
| 9 | Nut | 4 | H-1783-9 | SP700-11 |
| 10 | Washer | 4 | H-1783-10 | SPA002 |
| 11 | Washer 12 | 2 | H-1783-11 | GB93-1986 |
| 12 | Bolt M12x30 | 2 | H-1783-12 | GB5781-2000 |
| 13 | Bearing 105 | 2 | H-1783-13 | GBT276-94 |
| 14 | Bush | 2 | H-1783-14 | SP700-10 |
| 15 | Bearing 7205 | 2 | H-1783-15 | GB297-64 |
| 16 | Bolt M10x35 | 2 | H-1783-16 | GB5781-2000 |
| 17 | Nut M10 | 2 | H-1783-17 | GB41-86 |
| 18 | Washer 10 | 1 | H-1783-18 | GB95-1985 |
| 19 | Spring | 1 | H-1783-19 | SP707-01 |
| 20 | Rack of Wheel | 1 | H-1783-20 | SP707-03 |
| 21 | Brake Piece | 1 | H-1783-21 | SP707-02 |
| 22 | Retaining Ring for Axle 17 | 8 | H-1783-22 | GB8941-86 |
| 23 | Shaft | 4 | H-1783-23 | SP700-05 |
| 24 | Washer | 8 | H-1783-24 | SP800-PT#24 |
| 25 | Bearing 60203 | 8 | H-1783-25 | SP800-PT#25 |
| 26 | Wheel | 4 | H-1783-RIGID | SP700-03 |
| 27 | Bolt M8x12 | 1 | H-1783-27 | GB5781-2000 |
| 28 | L-Pin | 1 | ———– | SP700-02 |
| 29 | Frame | 1 | ———– | SP703-00 |
| 30 | Pump | 1 | H-1783-PUMP | YQ00-700 |
| 31 | Shaft | 1 | H-1783-SHAFT | SP011 |
| 32 | Bush | 1 | H-1783-BUSH | SP012 |
| 33 | Retaining Ring for Axle 10 | 1 | H-1783-33 | GB8941-86-10 |
| 34 | Screw M8x10 | 1 | ———– | GB70-85 |
| 35 | Washer 8 | 3 | H-1783-WSHR8 | GB93-19986 |
| 36 | Retaining ring for Axle 20 | 4 | H-1783-36 | GB8941-86-20 |
| 37 | Retaining Ring | 1 | H-1783-RRING | YQ7-700 |
| 38 | Shaft | 1 | H-1783-70007 | SP700-07 |
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 39 | Pedal Rod | 1 | H-1783-PROD | SP70201B |
| 40 | Cushion | 1 | H-1783-CUSHN | SP303 |
| 41 | Retaining Ring for Axle 22 | 4 | H-1783-22 | GB8941-86 |
| 42 | Roller | 2 | ———– | SPC704-13 |
| 43 | Bolt M8x30 | 1 | ———– | GB5781-2000 |
| 45 | Shaft | 1 | ———– | SP700-01 |
| 46 | Arm | 1 | ———– | SP704-00 |
| 47 | Roller | 2 | ———– | SP704-15 |
| 48 | Table | 1 | ———– | SP705-00 |
| 49 | Pedal Bar | 1 | ———– | SP302-01 |
| 51 | Washer 8 | 1 | H-1783-WASHR | GB95-1985 |
| 58 | Retaining Ring | 1 | H-1783-RING | YQ8-700 |
| 59 | Swivel Wheel (Complete) (Not Shown) | 2 | H-1783SWIVEL | ———– |
