H-3934, H-3935 1-800-295-5510
ELECTRIC LIFT TABLE

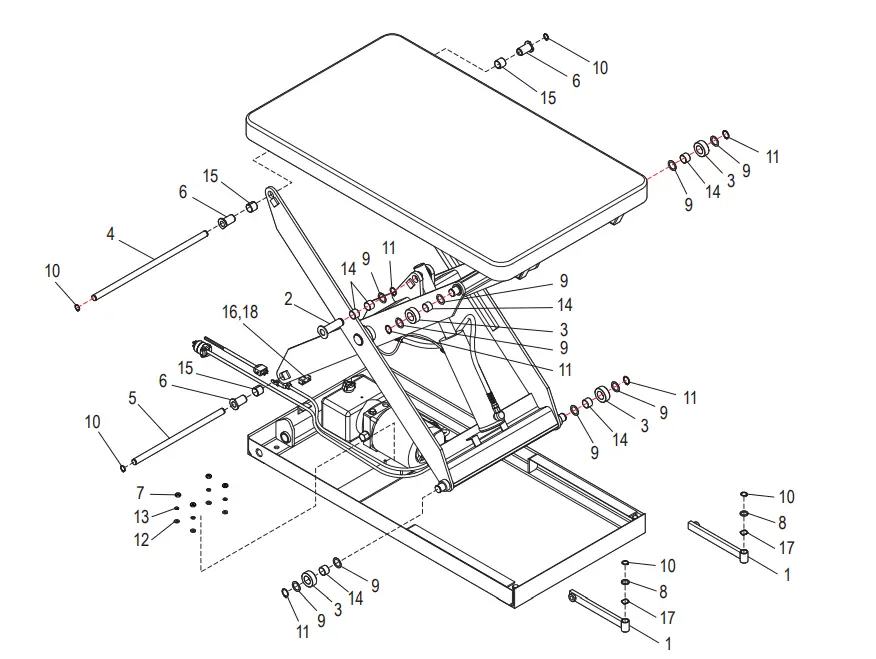

PRIMARY ASSEMBLY
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Maintenance Bar | 2 | ———————— | L2K-B7004321 |
| 2 | Upper Cylinder Pin Weldment | 1 | ———————— | L2K-B7004335 |
| 3 | Scissor Roller | 4 | H-3934-SCRRL | EZL-B5000096 |
| 4 | Platform Shaft | 1 | ———————— | EZ35-B5004968 |
| 5 | Base Shaft | 1 | ———————— | EZ35-B5004969 |
| 6 | Bearing Insert | 4 | ———————— | EZ35-B5004970 |
| 7 | Hex Nut | 4 | ———————— | MEC-B2000013 |
| 8 | Thrust Washer | 2 | ———————— | MEC-B2000020 |
| 9 | Thrust Washer | 9 | ———————— | MEC-B2000021 |
| 10 | Retaining Ring | 6 | ———————— | MEC-B2000043 |
| 11 | Retaining Ring | 5 | ———————— | MEC-B2000045 |
| 12 | Flat Washer | 4 | ———————— | MEC-B2000070 |
| 13 | Lock Washer | 4 | ———————— | MEC-B2000076 |
| 14 | Bushing | 6 | ———————— | MEC-B2000080 |
| 15 | Bushing | 4 | ———————— | MEC-B2000093 |
| 16 | Button Head Cap Screw | 1 | ———————— | MEC-B2000263 |
| 17 | Wave Spring | 2 | ———————— | MEC-B2000336 |
| 18 | Strain Relief | 1 | ———————— | MEC-B2001968 |

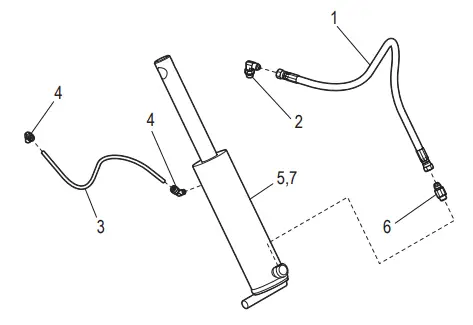

HYDRAULICS ASSEMBLY
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Hose Assembly | 1 | ———————— | HYD-B8001733 |
| 2 | Elbow | 1 | H-3934-ELBOW | HYD-B4000035 |
| 3 | Nylon Tube (Per Inch) | 32 | ———————— | HYD-B4000056 |
| 4 | Elbow | 2 | ———————— | HYD-B4000115 |
| 5 | Cylinder Pump | 1 | H-3992 | HYD-B4000213 |
| 6 | Flow Limiter Valve | 1 | H–3934–FL | HYD-B4000215 |
| 7 | Cylinder Seal Kit | 1 | ———————— | RKT3.000-1055 |

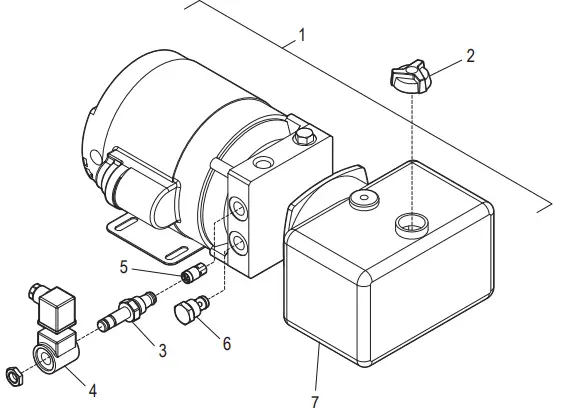

AC UNIT ASSEMBLY
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Power Unit | 1 | H-5570 | ELEC-B3000838 |
| 2 | Cap | 1 | ———————— | 8060-CC |
| 3 | Stem | 1 | ———————— | VF-4009 |
| 4 | Coil | 1 | H-3934COIL | EF-1092 |
| 5 | Flow Control | 1 | ———————— | FC-2.2 |
| 6 | Check Valve | 1 | ———————— | 2507-AA |
| 7 | Reservoir | 1 | H-3934-RESVQ | 2007937 |

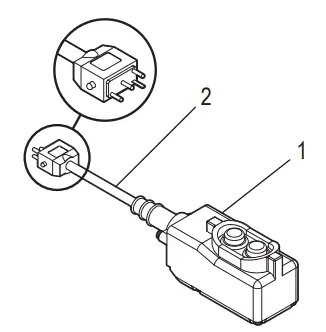

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Hand Control | 1 | H-3993 | ELEC-B3000827 |
| 2 | Cord Set | 1 | H-3994 | ELEC-B8001563 |
