Uline H-5823 3 Door Enclosed Cork Board Installation Guide

H-5823

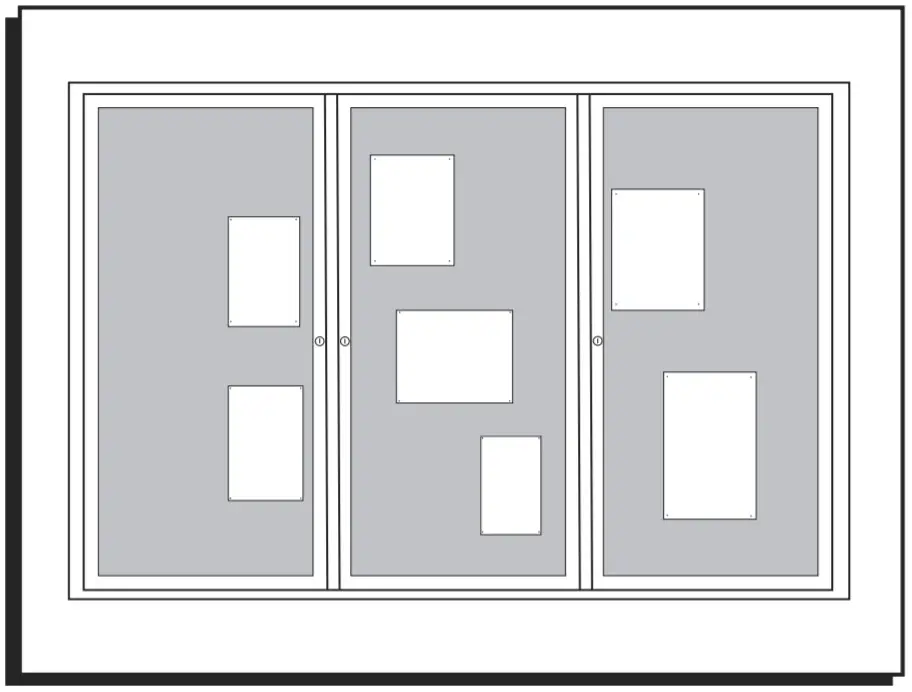

3 DOOR ENCLOSED CORKBOARD

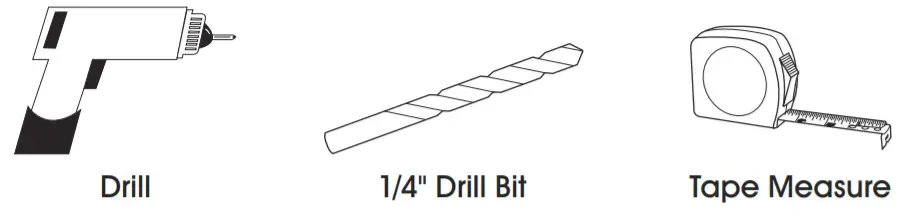

TOOLS NEEDED

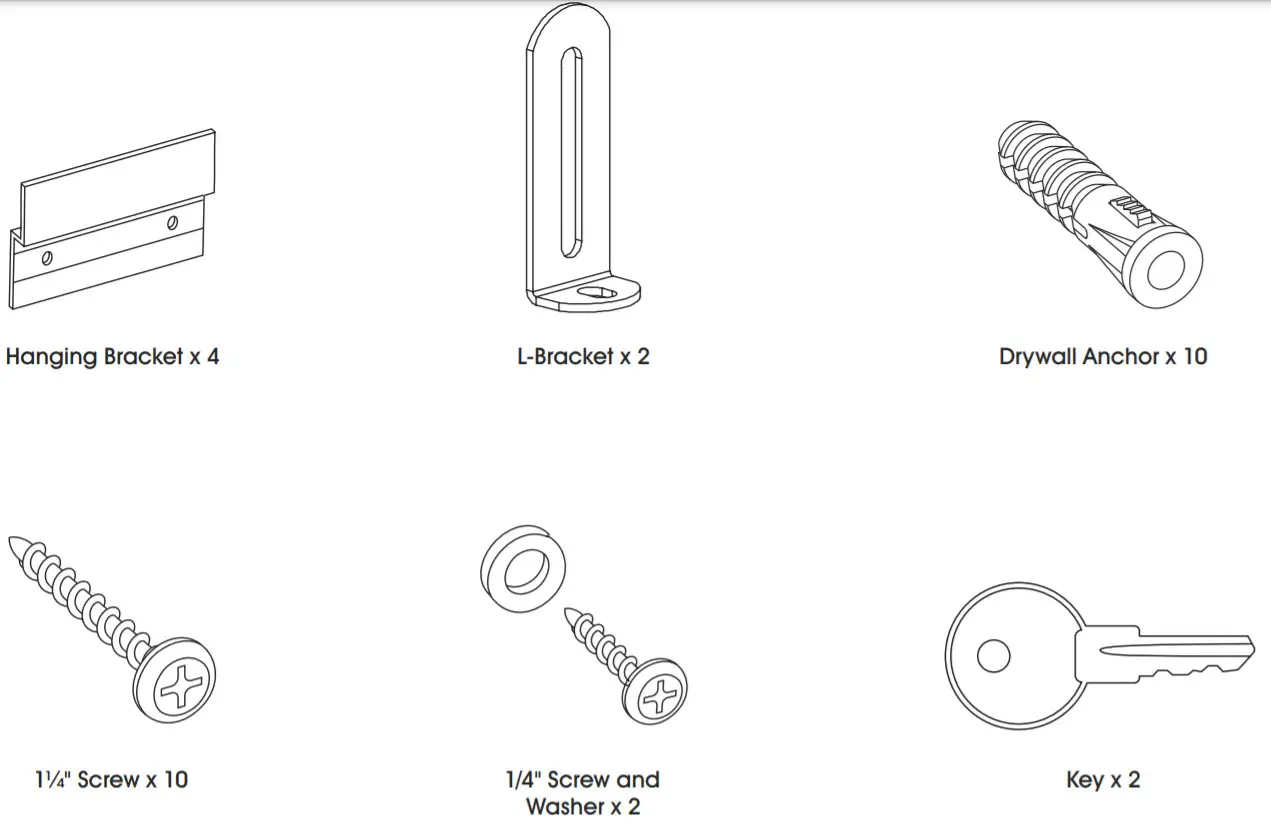

PARTS

TOP HANGING BRACKET MOUNTING

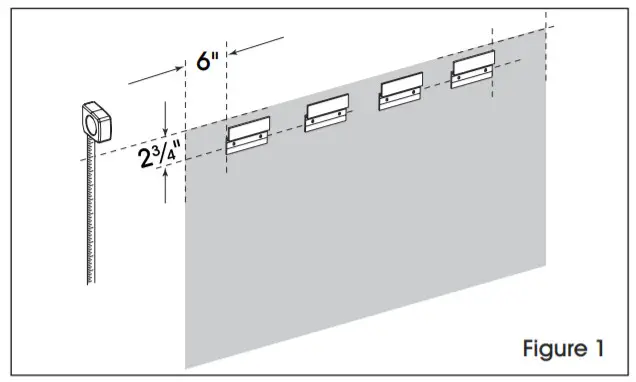

1. Determine board location. Position top hanging brackets 6″ from the outside edge of the board with bracket holes 2 ” from top of the board. (See Figure 1)

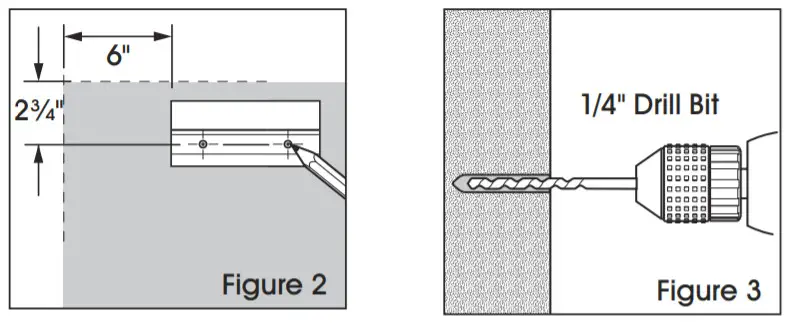

2. Mark wall at centers of bracket holes. (See Figure 2)
3. Drill holes for each hanger in marked locations using a 1/4″ drill bit. (See Figure 3)

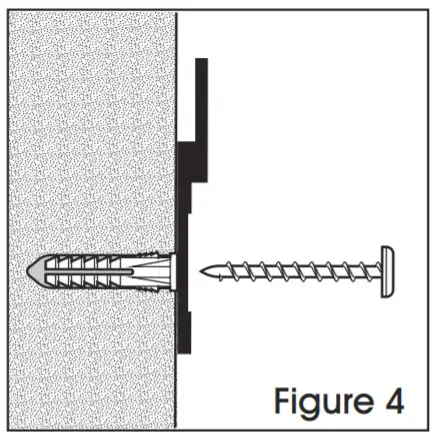

4. Insert wall anchors into holes, flush with the wall. Insert 1 ” screws through hanging brackets, into the wall anchors. Tighten firmly. (See Figure 4)

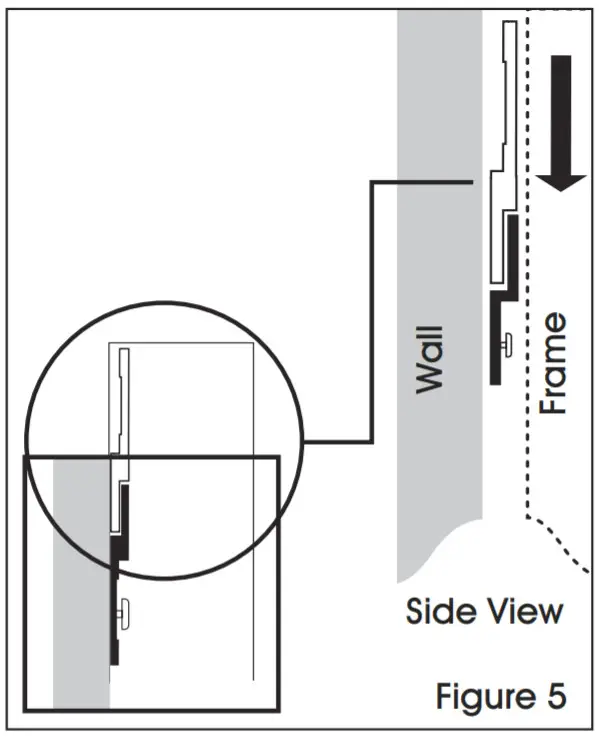

5. Lower board onto the top hanging brackets so built-in brackets on the upper board frame are engaged. (See Figure 5)


BOTTOM L-BRACKET MOUNTING

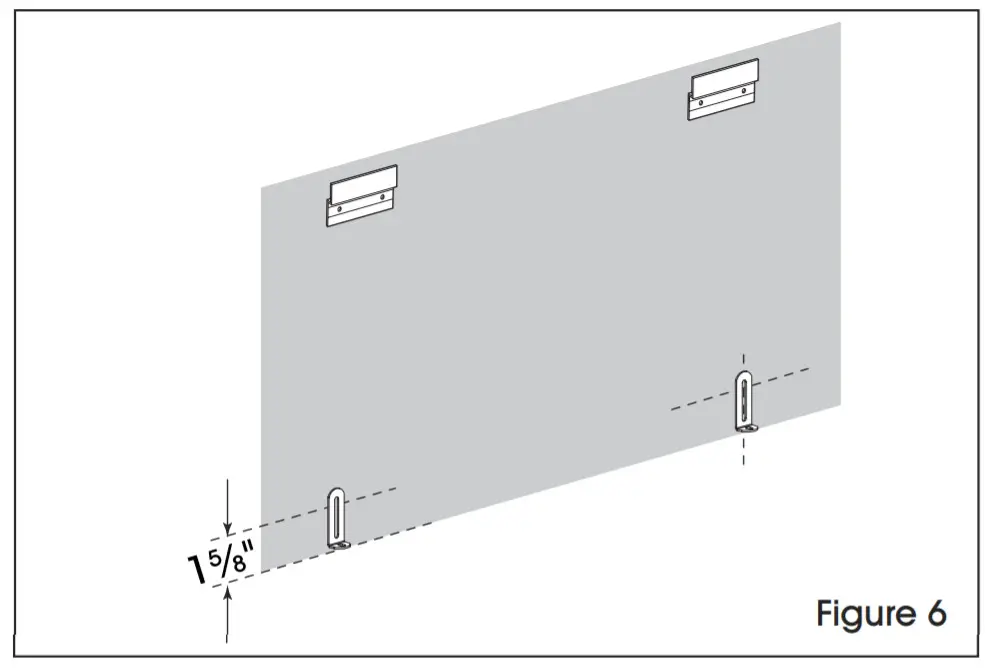

1. With the board hanging on top brackets, align L-brackets with pre-drilled holes (located on the bottom of the frame) and mark position. (See Figure 6)

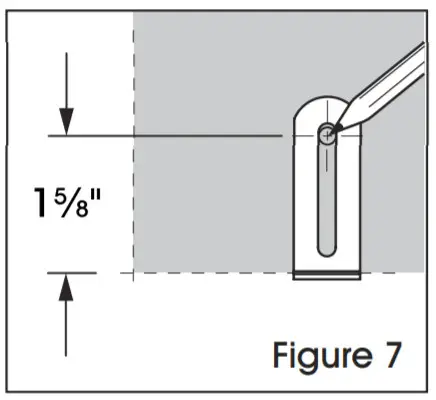

2. Remove board and mark wall 1 ” from the bottom of L-brackets. (See Figure 7)

3. Drill holes in marked locations using 1/4″ drill bit. Insert wall anchors into holes flush with wall.

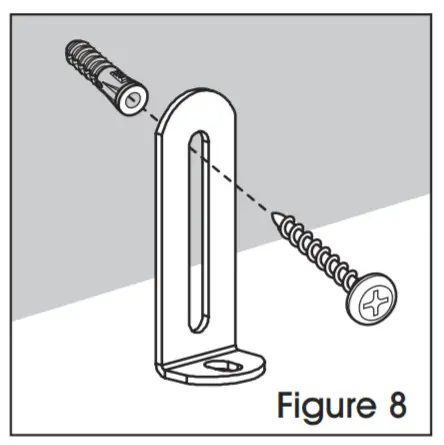

4. Insert 1 ” screws through L-brackets into wall anchors. Secure, but don’t overtighten. (See Figure 8)

5. Hang board and insert 1/4″ screw and washer through each L-bracket and into a predrilled hole in the frame.

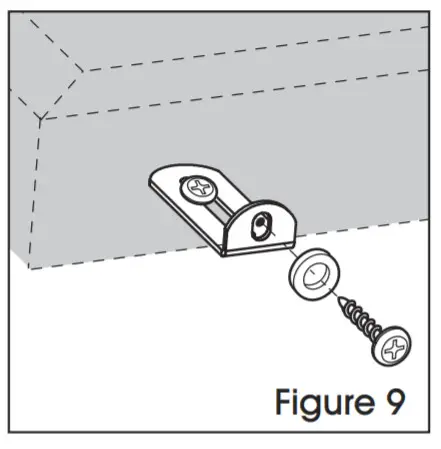

   Tighten firmly. (See Figure 9)
