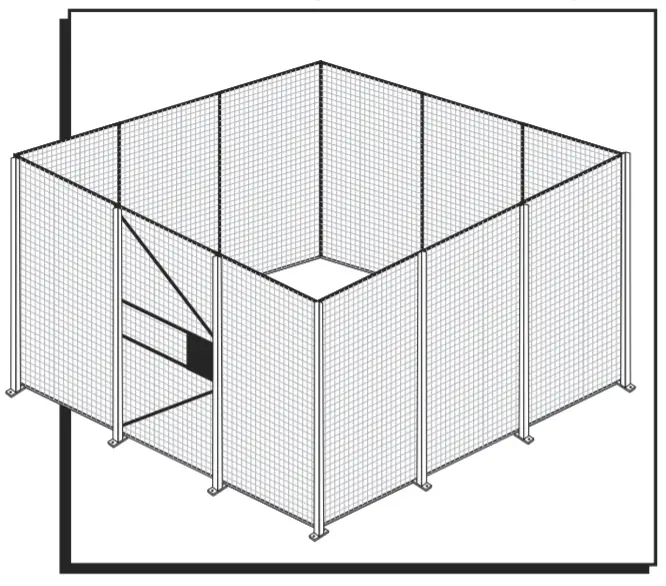

Uline Wire Security Room Sliding Door Installation Guide

WIRE SECURITY ROOM ­-SLIDING DOOR

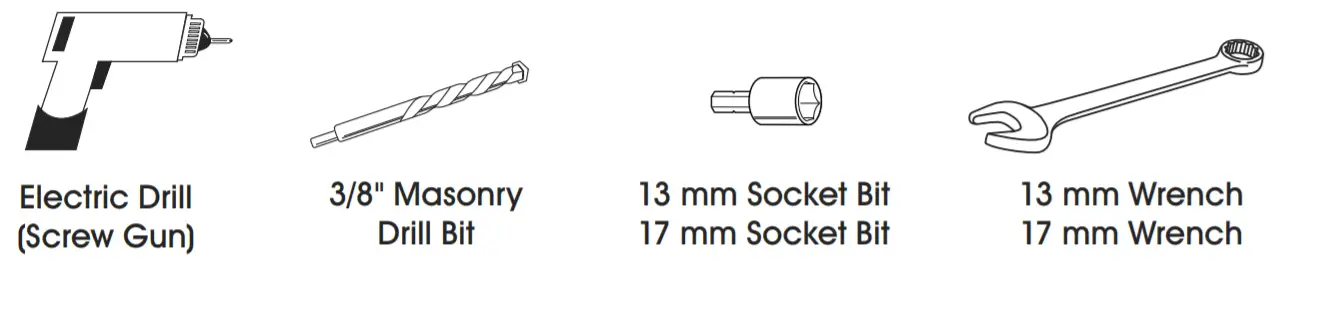

TOOLS NEEDED

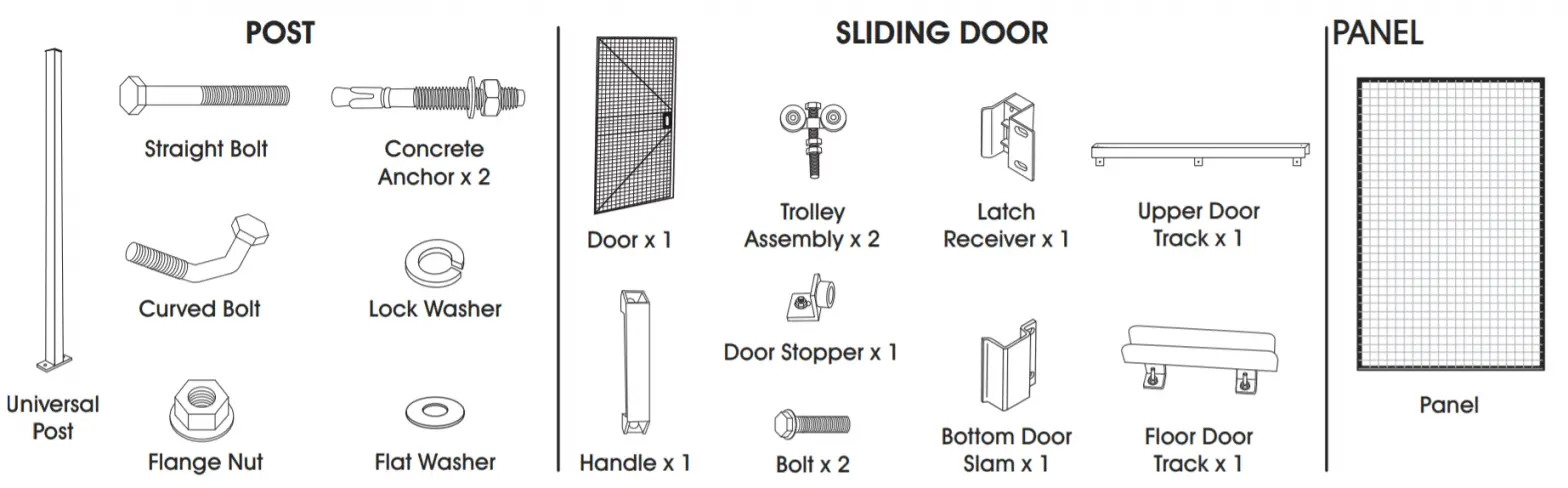

PARTS

INSTALLATION

Prior to installation, read instructions all the way through and determine room placement.
NOTE: Be sure to include the additional width of the posts and mounting plate dimensions when determining placement.
MOUNTING THE POSTS

1. Verify that the first post is positioned in the desired location. Mark the floor where the holes will be drilled.

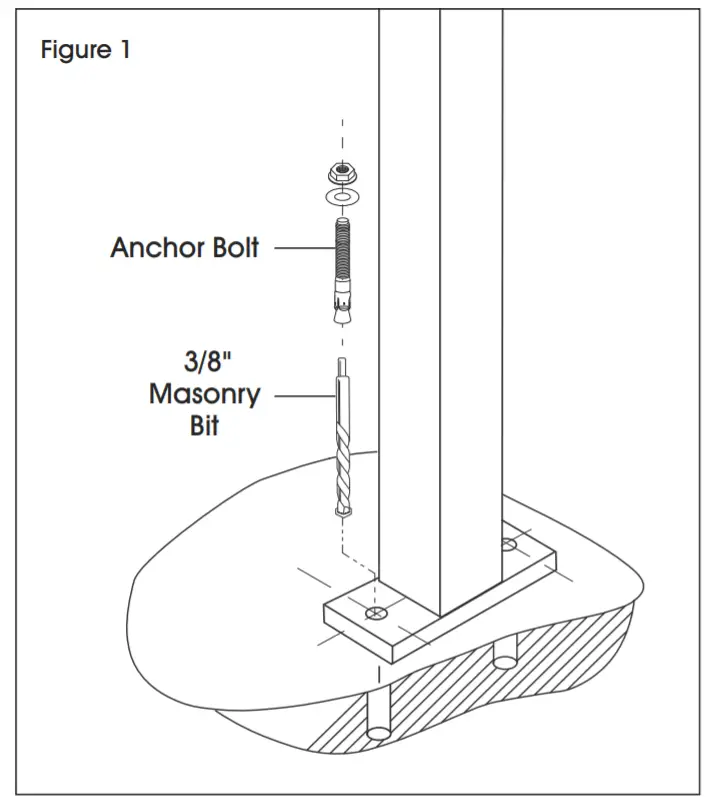

2. Using a 3/8″ masonry drill bit, drill a hole approximately 3″ deep into the floor. (See Figure 1)
3. Clean out debris and dust from inside the hole, and fully insert anchor bolt through the mounting plate and into the hole.
4. Tap down the anchor bolt with a hammer. Slide a washer onto the anchor bolt. Using a 17 mm wrench, tighten the hex nut until the anchor bolt is secure. Repeat for the remaining anchor.

ATTACHING PANELS TO POSTS

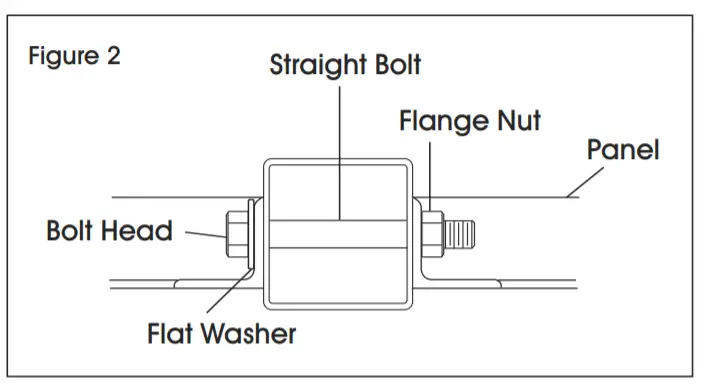

1. For a straight run, end to end, use straight bolts and flat washers. (See Figure 2) Use a 13 mm wrench to tighten.
   NOTE: Safe installation requires two people.

2. For a 90° corner, use curved bolts and lock washers. (See Figure 3)

3. Attach the opposite end of the panel to the second post.

ATTACHING SLIDING DOOR TO POSTS

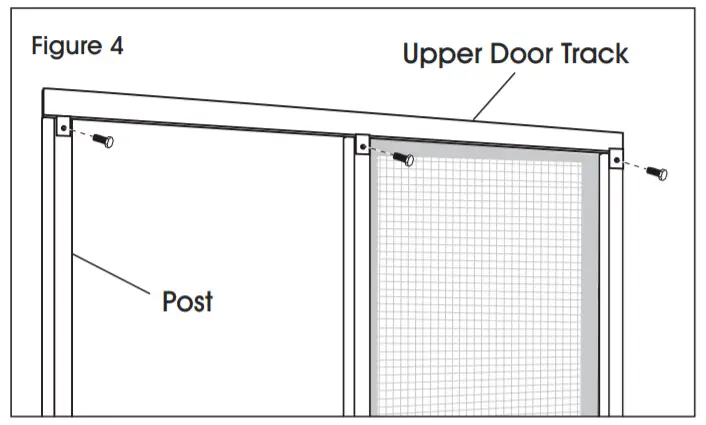

1. Using straight bolts, washers and nuts, install upper door track onto posts. Door track installs on top hole of the post. (See Figure 4)

2. Insert and attach trolley assembly to the top of the door. (See Figure 5)

3. Slide the assembled door into the upper door track. (See Figure 6)

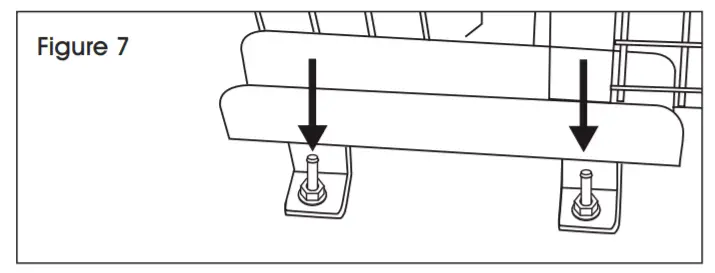

4. Mount floor door track using concrete anchors. (See Figure 7)

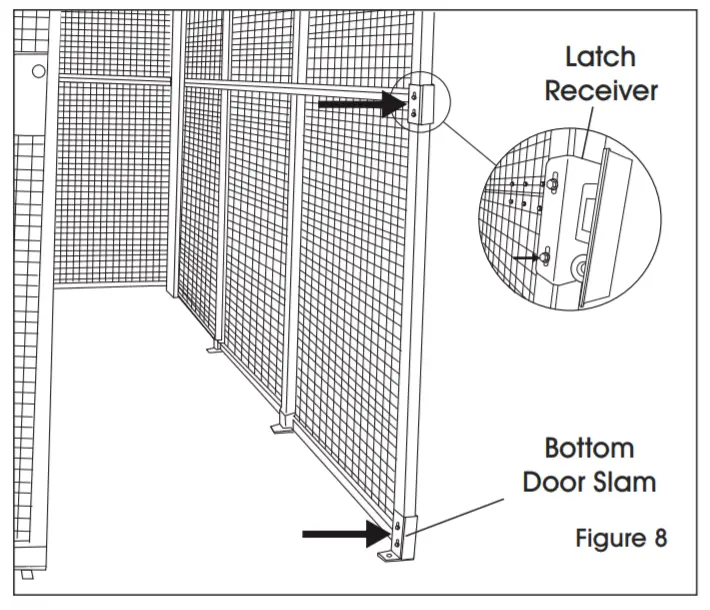

5. Attach latch receiver and bottom door slam using self-tapping screws. (See Figure 8)
   NOTE: Use a screw gun with an adjustable clutch, and take care not to over tighten and strip the threads. DO NOT USE IMPACT-TYPE GUNS.
   NOTE: Holes are not pre-drilled. Apply pressure with self-tapping screws to puncture the post.
6. Mount door stopper to opposite/receiving post. (See Figure 9)

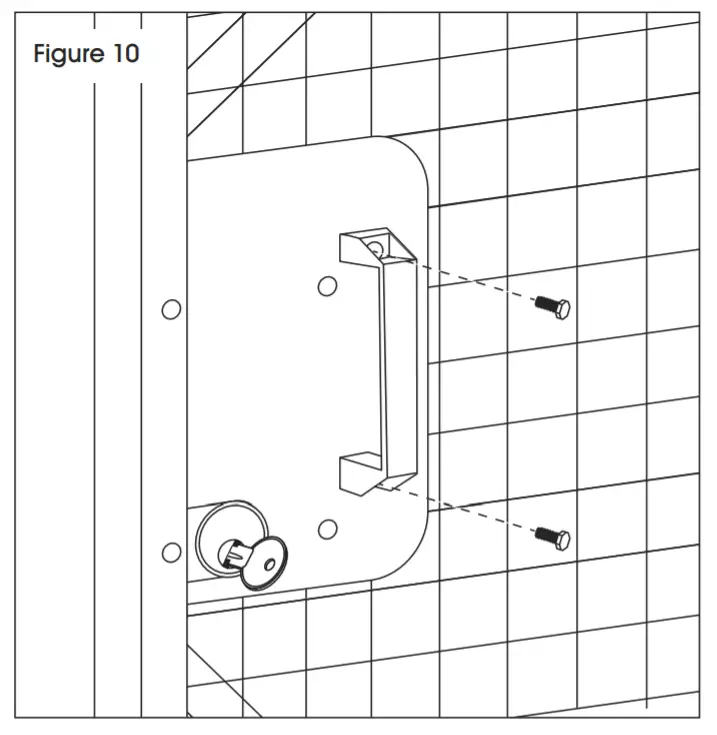

7. Attach handle to door using the provided handle and bolts. (See Figure 10)
