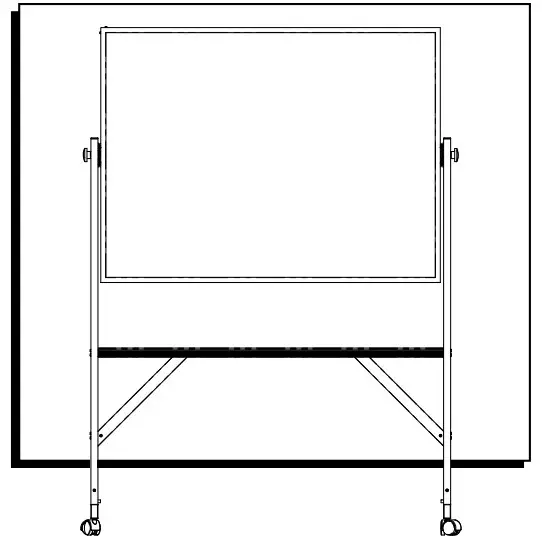

MOBILE DRY ERASE BOARD
1-800-295-5510
uline.com

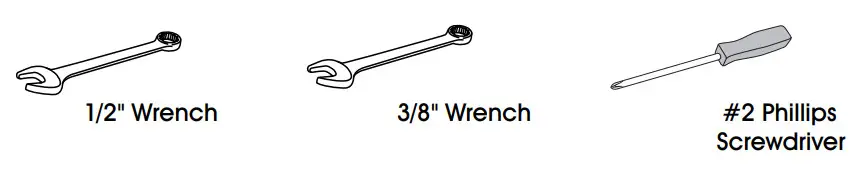

TOOLS NEEDED

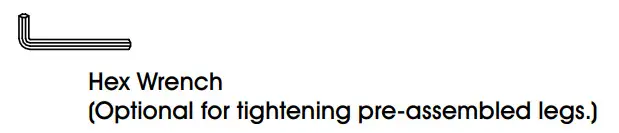

TOOL INCLUDED

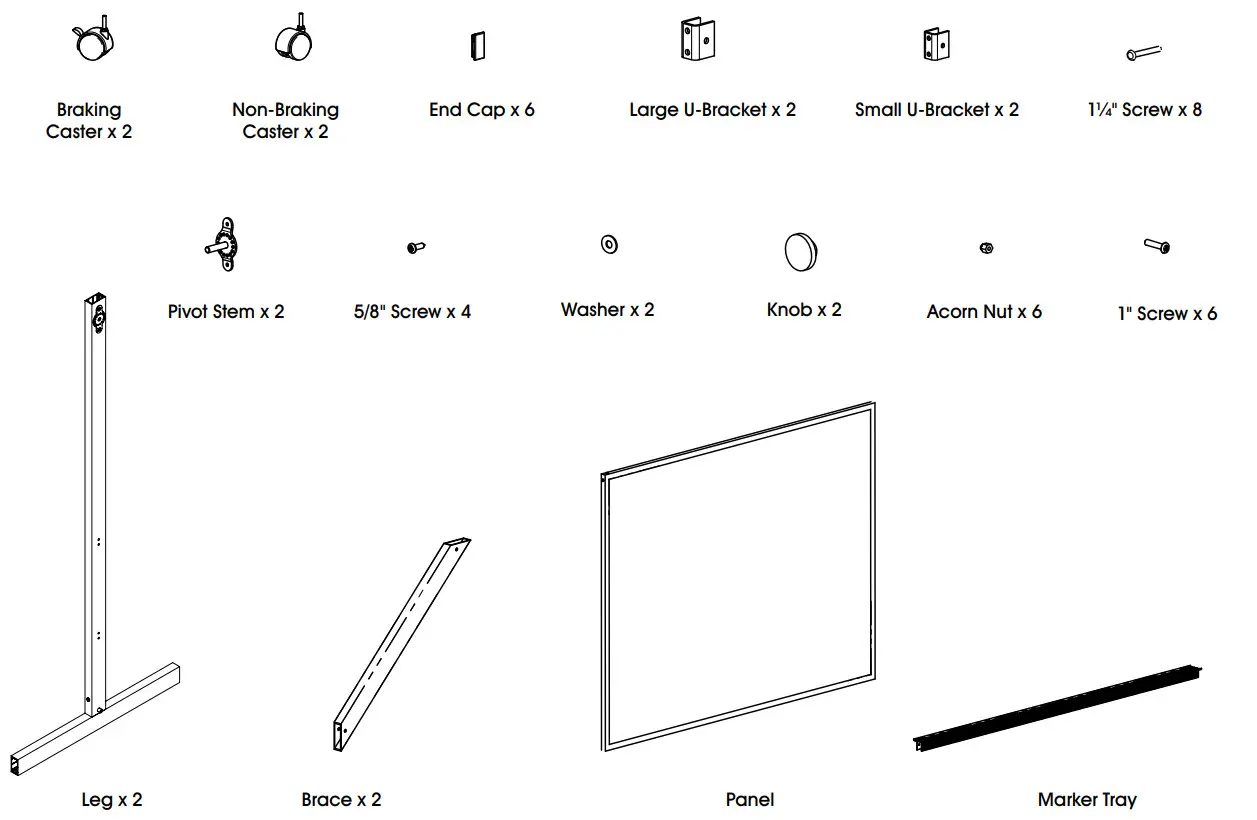

PARTS LIST
ASSEMBLY INSTRUCTIONS

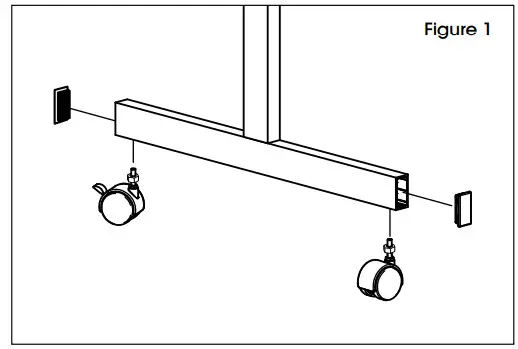

- Screw one braking and one non-braking caster into each foot. Fully tighten the nuts that accompany each caster. Insert one plastic end cap to the ends of each foot. (See Figure 1)
- Insert one plastic end cap to the top end of each leg.

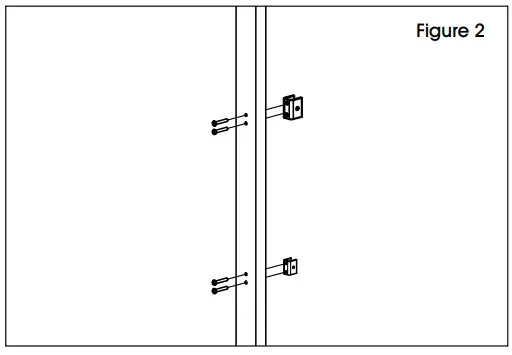

- Attach one small U-bracket to each leg at the lower set of holes using 1¼” screws. Attach one large U-bracket to each leg at the upper set of holes, using 1¼” screws. (See Figure 2)
NOTE: Do not tighten screws until Step 9 is completed.

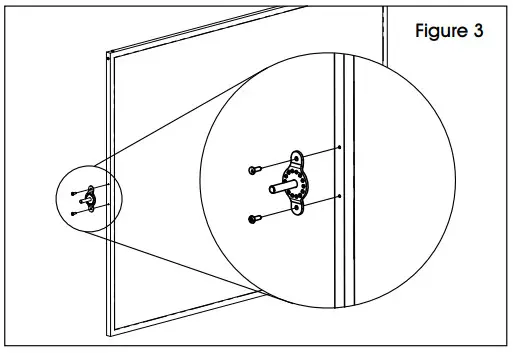

- Attach one pivot stem to both sides of the panel using two 5/8″ screws for each pivot stem. Fully tighten screws. (See Figure 3)
- Lay the leg and feet assemblies on a table. Position the legs so that the U-brackets face each other.

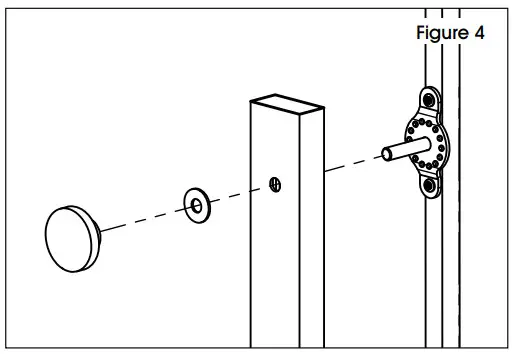

- Place the panel between the legs, and insert the pivot stems through the top hole in each leg. Place a washer and knob on each stem. (See Figure 4) NOTE: Do not fully tighten the knobs.

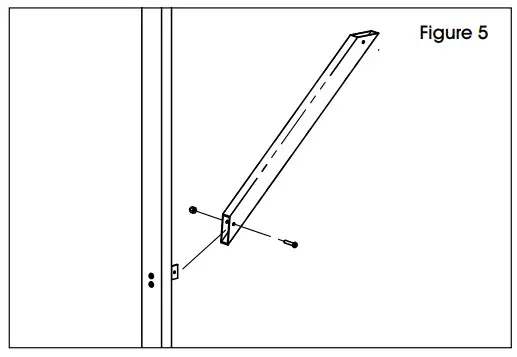

- Attach one brace to each leg using one 1″ screw and one acorn nut. The brace slides over the small U-bracket. Repeat for the other leg. (See Figure 5)

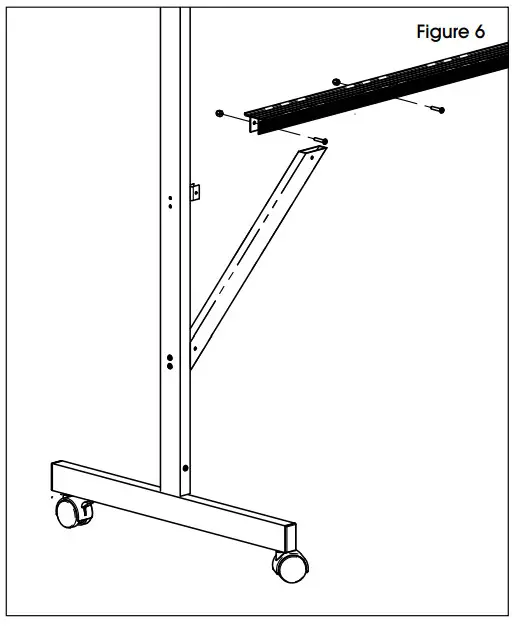

- Attach the marker tray to the leg assemblies by setting the marker tray on top of the large U-brackets and the braces. Align the holes and install one 1″ screw and one acorn nut through each of the four holes. (See Figure 6)
- Place the unit upright and insert an end cap in the top of each leg. Tighten all screws and nuts to complete the assembly.
NOTE: Do not tighten screws until Step 9 is completed.
MOBILE DRY ERASE BOARD
