ELK3629BB Pex 3 Inch Round Adjustable Gimbal
User Manual
Project name:………..
Fixture type:…………
Date:…………………..
ELK3629BB Pex 3 Inch Round Adjustable Gimbal

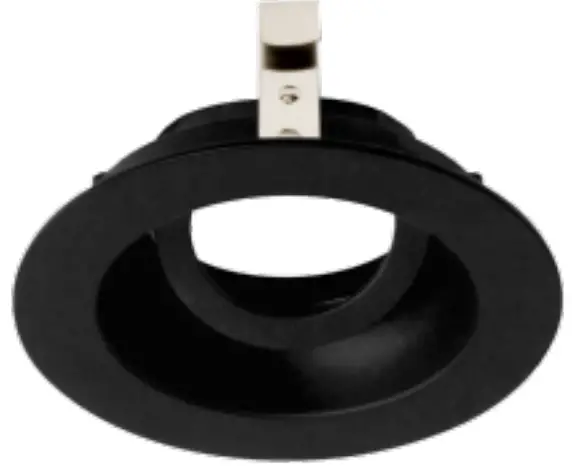

Pex™ 3″ Round Adjustable Gimbal
Pex™ Precision die-cast adjustable trims with twist-&-lock system for easy Koto™ Module installation
Features
- 3″ Round Gimbal.
- 358° Rotation.
- 30° tilt (for EL386ICA), 15° tilt (for EL390 Series)
- 30° tilt (with Architectural Koto™ LED Module & Housings)
- Convenient twist-lock design for easy installation.
- Lamp: Koto™ LED Module.
- 4 3/8″ O.D.
Technical Details
Construction: Diecast aluminum with a powder coated finish.
Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
Lamp: Koto™ LED Module.

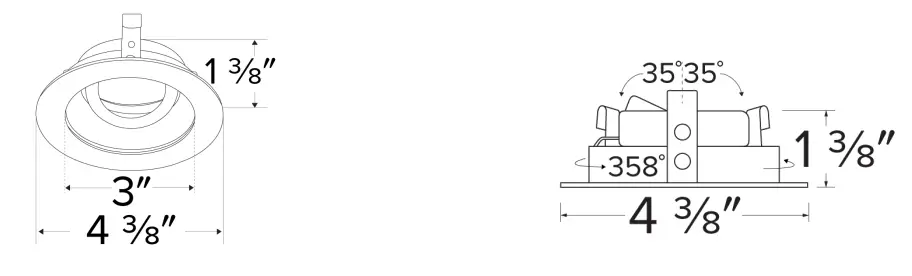

Dimensions:
Options
Product Number Builder
Example: ELK3629W
Pex™ 3″ Round Gimbal
ELK3629

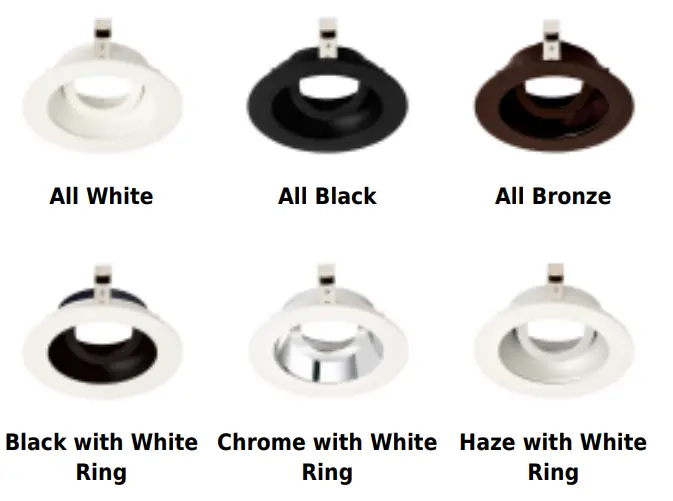

Finish
W All White
BB All Black
BZ All Bronze
B Black with White Ring
C Chrome with White Ring
H Haze with White Ring
Koto” LED Module
Koto”LED Module ELKO7- ELKO9
PRODUCT NUMBER BUILDER
| Koto LED Module | Lumens | Color Temperature | Beam Angle |
| ELK | 07……………7501m 09…………….9501m | 27…….. 2700K 30 ……….3000K 3S………… 3500K 40 ……4000K so ……..Sunset Dimming ELKO9 Only] | (blank 38° lens (Standard S………..18° lens -N…………..25° lens -W……………….. 60° lens |
ACCESSORIES
 | Lens EP731C…………….. 18° Lens EP732C……………….. 25°Lens EP733C ……………….38° Lens EP734C………………. 60 Lens EP73C ER733C BP7 3MC blooded |
 | Reflectors EP735C…………………. 15° EP736C…………………. 25° EP737C………………….. 38° EP738C……………………….. 60° |
 | Secondary Optics L45 ……………………..Hex Louver L46 ………………………..Linear Louver L47 ………………………………Spread Louver |
3″ Koto” Dedicated LED ICA Housings

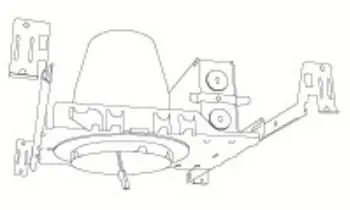

3ICA Maximum Adjustability Housing
New Construction
| CAT NO | SPECIFICATIONS |
| EL386ICA | Maximum Adjustability |

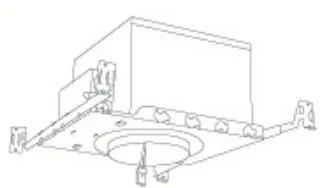

3ICA Housing Remodel
| CAT NO. | SPECIFICATIONS |
| EL390RICA |
3ICA Housing New Construction
| CAT NO | SPECIFICATIONS |
| EL39OICA EL390ICA-EMS | Emergency Battery Back-up (90 minutes) |

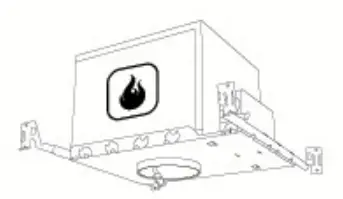

2-Hour Fire Rated 3 ICA Housing
New Construction
| CAT NO | SPECIFICATIONS |
| EL39FICA | 7%Height – Sound Rated |

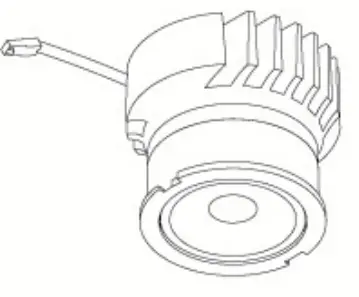

Koto” Architectural LED Light Engine
Kot” LED Light Engine ELK19 – ELK21
PRODUCT NUMBER BUILDER
| Koto LED Light Engine | Lumens | Color Temperature | Beam Angle |
| ELK | 19 ….750-850 Im 21….. 100-1500 m | 270 ……………..2700K 300………………. 3000K 350 ……………3500K 400 ………………4000K SO …………….Sunset Dimming ELK19 Only) | (blank) …..38° lens (Standard) S………. 18°lens N……….. 25lens -W…………60° lens |
ACCESSORIES
| Lens EP731C…………….. 18° Lens EP732C……………….. 25°Lens EP733C ……………….38° Lens EP734C………………. 60 Lens EP73C ER733C BP7 3MC blooded |
| Reflectors EP735C…………………. 15° EP736C…………………. 25° EP737C………………….. 38° EP738C……………………….. 60° |
| Secondary Optics L45 ……………………..Hex Louver L46 ………………………..Linear Louver L47 ………………………………Spread Louver |
3″ Koto” Architectural Recessed Housings
3High Lumen Maximum Adjustability ICA Housing
1500 lm (18.9W) w£UK21 Series Module
Not for use with ELK19 Series Module
New Construction
| CAT NO. | SPECIFICATIONS |
| E3LK8SICAD | 120/2770-0-10V/Trac/ELV |
3″ Shallow Maximum Adjustability CA Housing
850 lm (14.7NW wELK19 Series Module
1100 lm (14.7MW wELK2I Series Module
New Construction
| CAT NO | SPECIFICATIONS |
| E3LK76ICA | 120V- Tlac/ELV |
| E3LKT7ICAD | 120/277V- 0-10V/Tac/ELV |
Standard ICA Housing
750 lm (10.5W) wELK19 Series Module
950 Im (10.5W wELK2?1 Series Module
New Construction
| CAT NO | SPECIFICATIONS |
| E3LK65ICA | 120V- Tac/ELV |
| E3LK65CA-EMI | Emergency Battery Back-Up |
| E3LK66ICAD | 120/277V-0-10V/Trac/ELV |
| E3LK66CAD-EMT | Emergency Battery Back-Up |
3″ Standard ICA Housing
750 Im (10.5W wELK19 Series Module
950 lm (10.5W) wELK21 Series Module
Remodel
| CAT NO. | SPECIFICATIONS |
| E3LK65RICA | 120V – Triac/ELV |
2-Hour Fire Rated 3 ICA Housing
750 lm (10.5W) wELK19 Series Module
950 lm (10.5 wELK21 Series Module
New Construction
| CAT NO. | SPECIFICATIONS |
| ELK72FICA | 120V – Tac/ELV |
| ELK73FICAD | 120/277V-0-10V/Trac/ELV |
