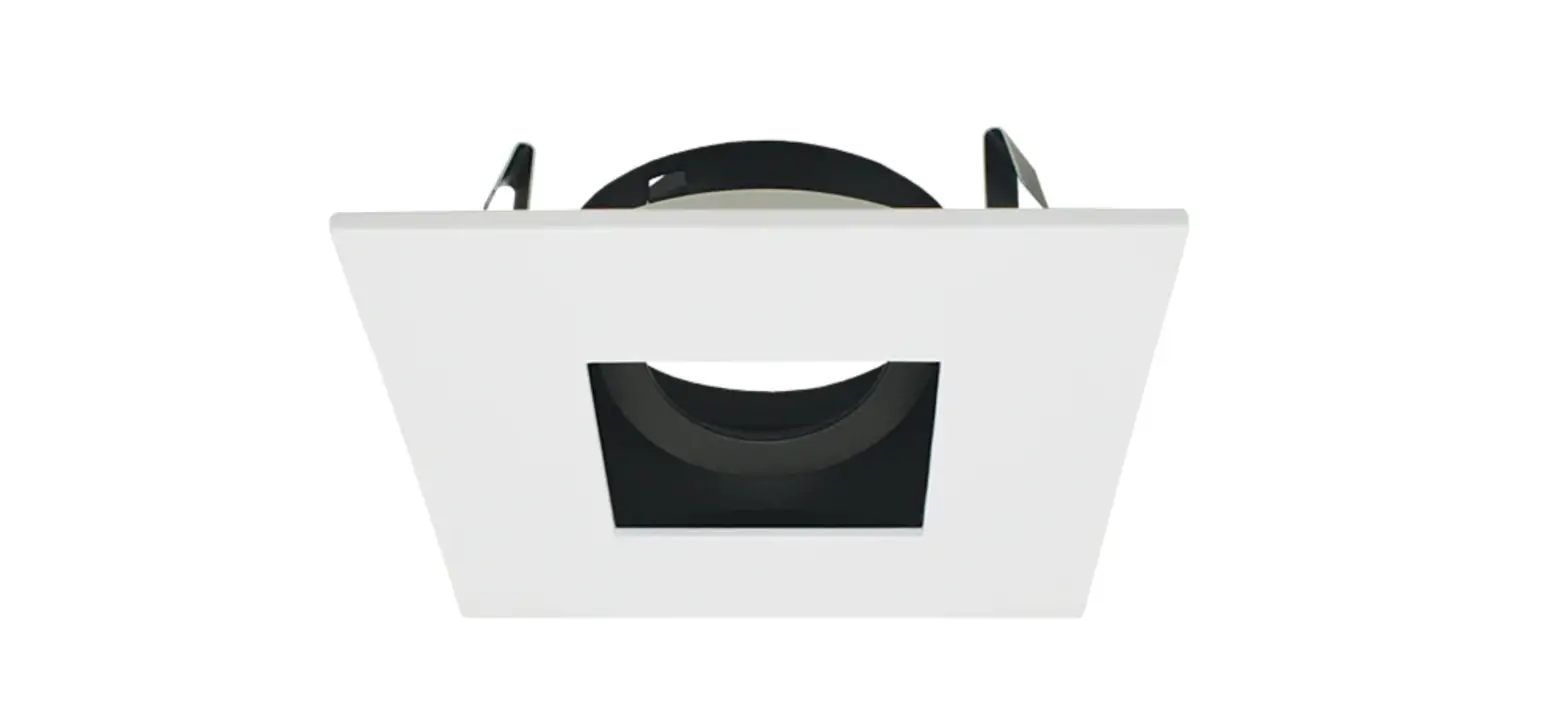

Pex™ 3″ Square Adjustable Pinhole
Pex™ precision die-cast adjustable trims with twist-&-lock system for easy Koto™ Module installation
Features
- 3″ Square Adjustable Pinhole.]
- 358° Rotation.
- 30° tilt (for EL386ICA), 15° tilt (for EL390 Series).
- Convenient twist-lock design for easy installation.
- Lamp: Koto™ LED Module.
- 4 3/8″ Sq.
Technical Details
Construction: Diecast aluminum with a powder coated finish.
Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
Lamp: Koto™ LED Module only.
Dimensions:
Options
Black Reflector with White Ring
All Black All Bronze
Black Reflector with Nickel Ring
All White Haze/White Ring
Product Number
Item Finish
ELK3327W All White
Product Number Builder Example: ELK3327W
Pex™ 3″ Square Adjustable Pinhole
ELK3327
Finish
W All White
B Black Refl. / White Ring
BB All Black
BZ All Bronze
N Black Refl. / Nickel Ring
H Haze/White Ring
Compatible Products
For use with Koto™ System 3″ Trims
Koto™ Commercial Construction LED Light Engine
ELK19 ELK21
Koto™ LED Light Engine
PRODUCT NUMBER BUILDER
Koto™ LED Light Engine
ELK
Lumens
19 850 lm
21 1100 lm
Color Temperature
27D 2700K
30D 3000K
35D 3500K
40D 4000K
SDD Sunset Dimming
Beam Angle
(blank) 38° lens (Standard)
-S 18° lens
-N 25° lens
-W 60° lens
ACCESSORIES
Lens
EP731C 18° Lens
EP732C 25° Lens
EP734C 60° Lens
Reflectors
EP735C 15°
EP736C 25°
EP737C 38°
EP738C 60°
Hex Louver
L45
For a better glare shield
Linear Louver
L46
For a wide rectangular illumination pattern
Spread Louver
L47
For a symmetrical broadening of light beams
Clear Lens
L48
Protective clear glass lens
3″ Commercial Construction Koto™ Dedicated LED ICA Housings
2-Hour Fire Rated 3″ ICA Housing – 7 1/2′ Height
New Construction
| CAT NO. | SPECIFICATIONS |
| ELK39FICA | 120V – Triac/ELV |
| ELK39FICAD | 120/277V – 0-10V/Triac/ELV |
3″ ICA Shallow Maximum Adjustability Housing – 4° Height
New Construction
| CAT NO. | SPECIFICATIONS |
| E3LK76ICA | 120V – Triac/ELV |
| E3LK77ICAD | 120/277V – 0-10V/Triac/ELV |
3″ ICA Housing – 5 1/2′ Height
New Construction
| CAT NO. | SPECIFICATIONS |
| E3LK65ICA | 120V – Triac/ELV |
| E3LK65ICA-EM1 | 120V – Triac/ELV Emergency Battery Back-up (90 min) |
| E3LK66ICAD | 120/277V – 0-10W Triac/ELV |
| E3LK66ICAD-EM1 | 120/277V – 0-10V/ Triac/ELV Emergency Battery Back-up (90 minute) |
3″ ICA Housing – 5 1/2″ Height
Remodel
| CAT NO. | SPECIFICATIONS |
| E3LK65RICA | 120V – Triac/ELV |
