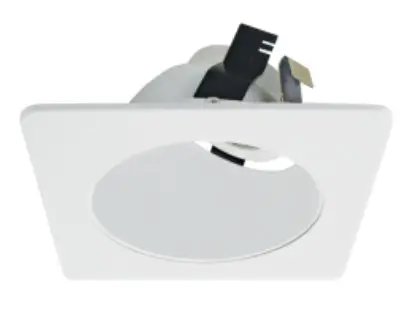

Elco Lighting Elk4222w 4 Inch Pex Square Adjustable Wall Wash Instructions

Pex™ 4″ Square Adjustable
Wall Wash
Pex™ Precision die-cast adjustable trims with twist-&-lock system for easy Koto™ Module installation

Features

• 4″ Square Adjustable Reflector Wall Wash
• 45° Adjustability
• 5″ Sq.
• Convenient twist-lock design for easy installation
• Lamp: Koto™ LED Module
  Recommended to be used with Maximum Adjustability Housings

Technical Details

Construction: Diecast aluminum with a powder coated finish.
Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
Lamp: Koto™ LED Module.

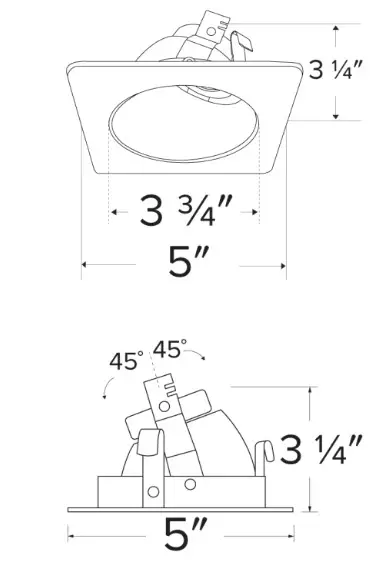

Dimensions

Product Number

Product Number Builder Example: ELK4222W

Compatible Products
For use with 4″ Koto Twist-&-Lock Trims

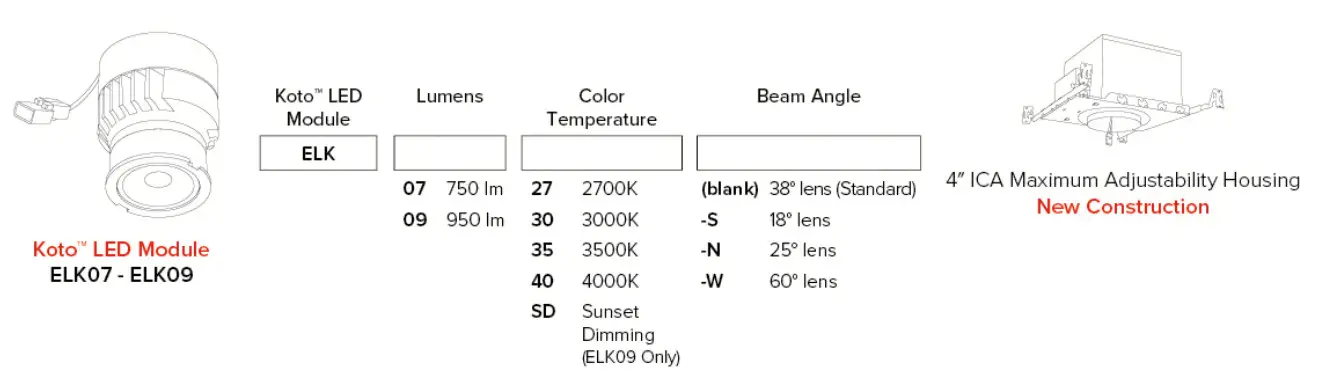

Kotom LED Module & 4″ D c icatcd LED ICA Housing

PRODUCT NUMBER BUILDER

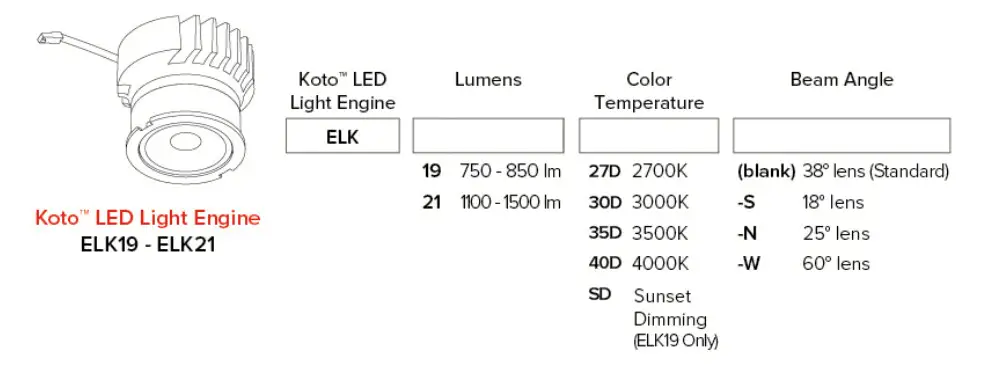

KotoTM Architectural LED Light Engine & 4″ Architectural ICA Housings
PRODUCT NUMBER BUILDER

4″ High Lumen Maximum Adjustability ICA Housing 1500 Im (18.9141 w/ELK21 Series Module Not for use with ELK19 Series Module New Construction

 4″ Shallow Maximum Adjustability ICA Housing 850 lm (147141 w/ELK19 Series Module 1100 Im (14.7W) w/ELK21 Series Module New Construction

ACCESSORIES FOR KOTO LED MODULE & KOTO ARCHITECTURAL LED LIGHT ENGINE

Lens

EP732C, EP733C, EP734C hcluded

Reflectors

Secondary Optics

2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600 Fax (323) 231-3200
elcolighting.com
© ELCO Lighting 2022. All rights reserved
Rev. 03 Feb 2022
ELCO Lighting reserves the right to make specification and design changes without notice.
