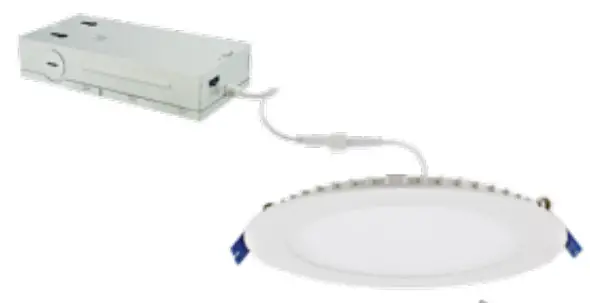

ERT81DXCT5W 8 Inch 120-277-347V Ultra Slim LED Round Panel Light
Instructions Manual
These unique 8″ ultra slim panel light designed for quick and easy installation without housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K, or 5000K. This IC-rated fixture can be installed indoor or outdoors.
Features
- IC Airtight for use with direct contact to insulation.
- Designed to fit in plenums as shallow as 2″.
- Eliminates the need for housing.
- Not for use with E8LF1
- Remodel applications require no additional accessories.
- Wet Location allows for use indoors or outdoors.
- CA Title 24 and ENERGY STAR Compliant.
- Includes driver and Jbox.
Specifications
| Wattage | 20W |
| Lumens | 1200 lm |
| Voltage | 120/277/347V |
| Color Temp. | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimmable | Triac/ELV/0-10V |
| Lamp Type | LED |
| CRI | 90+ |
| Wet Location | Listed |
Technical Details
Optics: Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.
Construction: IC-rated driver and fixture are tested and approved for direct contact with insulation. Aluminum die-cast trim ring with durable powder coat finish preventing rust and paint cracking. Plenum-rated cable connector to connect from module to remote driver box. Isolated driver integrated inside the aluminum remote box with two 7/8″ knockouts with slots for payout.
Installation: Designed for super shallow ceiling plenums without any housing. High-strength steel spring clip for easy installation. A hole cut-out template was provided for accurate hole size for proper trim installation.
The maximum hole size should not exceed 8 1/4″ for this product. Can be used with a maximum of one layer of 5/8″ thick drywall. Suitable installation for t-grid and drop ceiling applications.
Electrical: The driver connects directly to the 120/277/347V power supply. The standard input wattage is 15W, 63 lumens per watt. Replaces 100W incandescent.
Dimmability: Works with 120/277/347V dimmers. Dims down to 10%. For a full list of dimmers, refer to the ELM System Dimmer Compatability List.
Listings: ETL Listed for Wet Locations. IC-Rated for direct contact with insulation. Air Tight certified in accordance with ASTM E283-2004. Califonia Title 24 compliant (JA8-2016-E) Warranty: 5-year limited warranty.

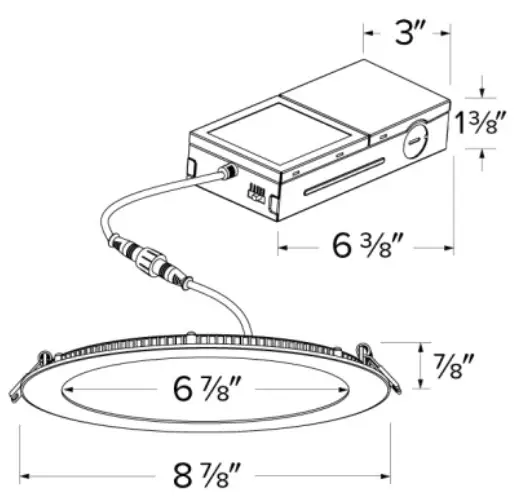

Dimensions
Product Number
| Item | Lamp type | Lumens | CCT | Watts | Voltage | Dimming | Finish |
| ERT81DXCT5W | LED | 1200 lm | 2700K, 3000K, 3500K, 4000K, 5000K | 20W | 120/277/347V | Triac/ELV/0-10V | White |
Product Number Builder
Example: ERT81DXCT5W
2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600 Fax (323) 231-3200
elcolighting.com
© ELCO Lighting 2022. All rights reserved
Rev. 25 Jan 2022
ELCO Lighting reserves the right to make specification and design changes without notice.
