ERT495CT5DXW 4 Inch LED
Recessed Downlights
Instructions

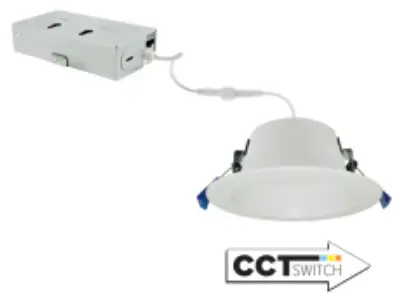

ERT495CT5DXW 4 Inch LED Recessed Downlights
Our 4″ LED Recessed Downlights are designed for quick and easy installation without housing for both new constructions and remodel applications, giving you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K, or 5000K. IC-Rated for use with direct contact with insulation.
Features
- IC Airtight for use with direct contact to insulation.
- Designed to fit in plenums as shallow as 3″.
- Eliminates the need for housing.
- New Construction application requires a mounting plate or frame.
- Remodel applications require no additional accessories.
- Wet Location allows for use indoors or outdoors.
- Energy Star Certified
- Title 24 JA8-2019 Compliant
- Includes driver and Jbox.
Specifications
| Wattage | 11W |
| Lumens | 750 lm |
| Voltage | 120/277/347V |
| Color Temp. | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimmable | Triac/ELV/0-10V |
| Lamp Type | LED |
| CRI | 90+ |
| Wet Location | Listed |
Technical Details
Optics: Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.
Construction: IC-rated driver and fixture are tested and approved for direct contact with insulation. Plenum-rated cable connector to connect from module to remote driver box. Isolated driver integrated inside the aluminum remote box with two knockouts with slots for payout.
Installation: Designed for super shallow ceiling plenums without any housing. High-strength steel spring clip for easy installation. A hole cut-out template was provided for accurate hole size for proper trim installation.
The maximum hole size should not exceed 4 1/4″ for this product. Suitable installation for t-grid and drop ceiling applications.
Electrical: Standard input wattage is 11W, 68 lumens per watt. Replaces 75W incandescent.
Dimmability: Works with 120V Triac/ELV type dimmers. Or 120/277V with 0-10V dimming ability on 120/277V and Triac/ELV on the 120V side. Dims down to 10%. For a full list of dimmers, refer to the Dimmer Compatability List.
Listings: ETL Listed for Wet Locations. IC-Rated for direct contact with insulation. Energy Star Certified. Title 24 JA8-2019 Compliant
Warranty: 5-year limited warranty.

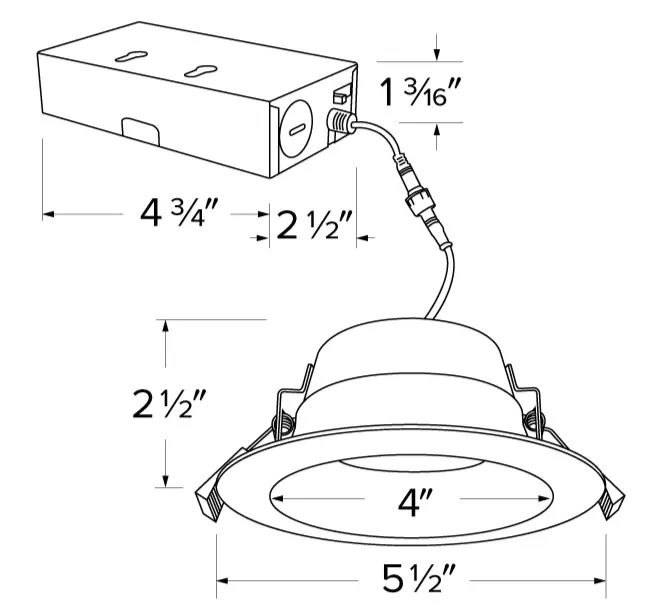

Dimensions
Product Number
| Item | Lamp type | Lumens | CCT | Watts | Voltage | Dimming | Finish |
| ERT495CT5DXW | LED | 750 lm | 2700K, 3000K, 3500K, 4000K, 5000K | 11W | 120/277/347V | Triac/ELV/0-10V | White |
Product Number Builder
Example: ERT415CT5W
| 4″ LED Recessed Downlight | Wattage/Lumen | Color Temp. | Voltage | Finish |
| ERT4 | 5 11W / 750 lm 95 11W / 750 lm | CT5 2700K – 5000K | 120V DX 120/277/347V | W White |
4″ ElmTM New Construction Frames
Frame with Hanger Bars
New Construction
| CAT NO. | SPECIFICATIONS |
| E4LF1(4″ Round) | 8 L x 6″ W x 4 Vs” Opening |
Round Mounting Plate
New Construction
| CAT NO. | SPECIFICATIONS |
| EMP4 (4″ Round) | 13 Vs” L x 6 ‘As” W x 4 3/8″ Opening |
Universal Frame for 2″, 4″ and 6″ Downlights
New Construction
| CAT NO. | SPECIFICATIONS |
| E246LF1 | 12 Vs” L x 7 s/s” W |
Project name:…….
Fixture type:……………
Date:…………
2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600 Fax (323) 231-3200
elcolighting.com
© ELCO Lighting 2022. All rights reserved
Rev. 01 Feb 2022
ELCO Lighting reserves the right to make specification and design changes without notice.
