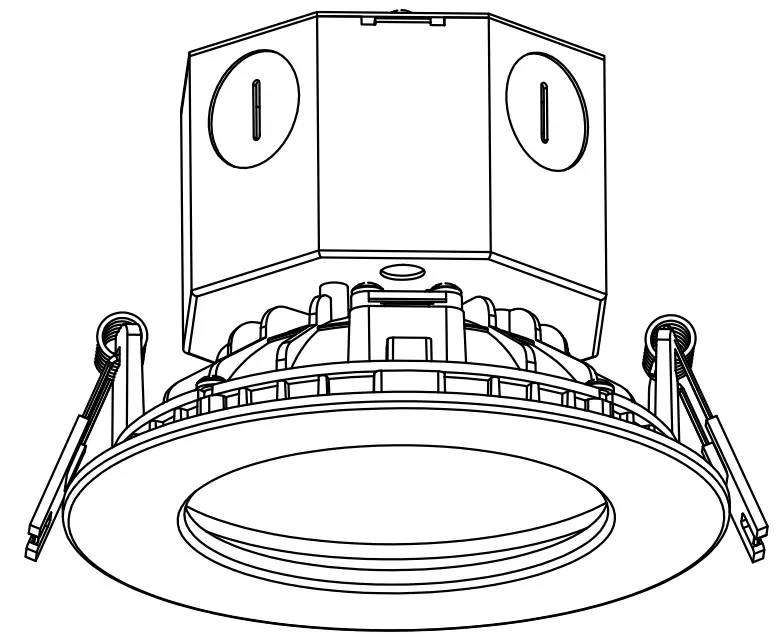

LIGHTING 57793 Cove LED Recessed Downlight
Instruction Manual
Cove LED Recessed Downlight PRODUCT NAME:
ITEM NUMBER:
| FOR OPTIMAL USE Triac or ELV For example,Lutron DVCL-150P/DVCL-153P | DO NOT USE 0-10V or magnetic dimmer | IMPORTANT Make sure that your dimmable LED fixture is paired with the correct dimmer type |
Please consult a qualified electrician for hanging fixture and wiring.
Light Source : LED Integrated 9W 12W
Before Getting Started
Read the instructions carefully prior to assembling the product.
When you open the package with a sharp tool like a cutter knife, be careful not to damage the components inside.
Carefully remove all packaging materials and retain for future use.
Keep all hardware parts and packaging out of reach of small children.
Choose a clean, level, spacious assembly area.
Avoid hard surfaces that may damage the product.
Ensure that you have all required contents for complete assembly.
Take care when lifting. Assemble the product in close proximity to where you intend to position the item.
Do not over tighten the screws and bolts as this may damage the threads.
Do not let children play with this product.
Risk of suffocation!
Keep any packaging materials away from children.
Lamp Care Instructions
Carefully read through the instruction sheet before assembly and using the product.
Caution there is a risk of shock. Disconnect from power source before assembling or cleaning.
Switch off, unplug and allow bulb to cool before replacing bulb or cleaning.
Only use the recommended bulb type and do not exceed the maximum wattage as it could cause fire.
Do not plug the product in if cord is torn or frayed.
Cleaning & Maintenance
On polished finishes, often using talc powder reduces the appearance of fingerprints and other smudges.
For respective shade surfaces, use the appropriate cleansers, i.e. glass cleaner, acrylic polish, and wood polish.
Clean with soft cloth and a mild detergent.
DO not use abrasive cleaner.
Periodically (every 90 days) make sure that the screws are fully tightened.
Prolonged exposure to heat sources may cause glazing, melting and scorching, or even cause color to fade.
Contents

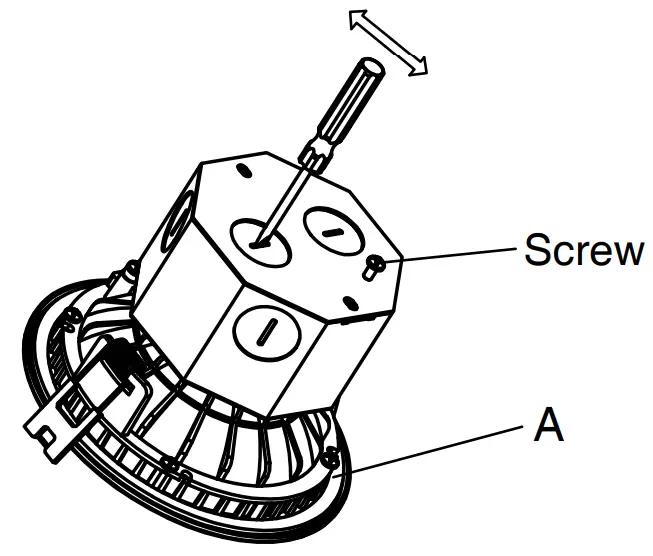

| A | LAMP | x1 |

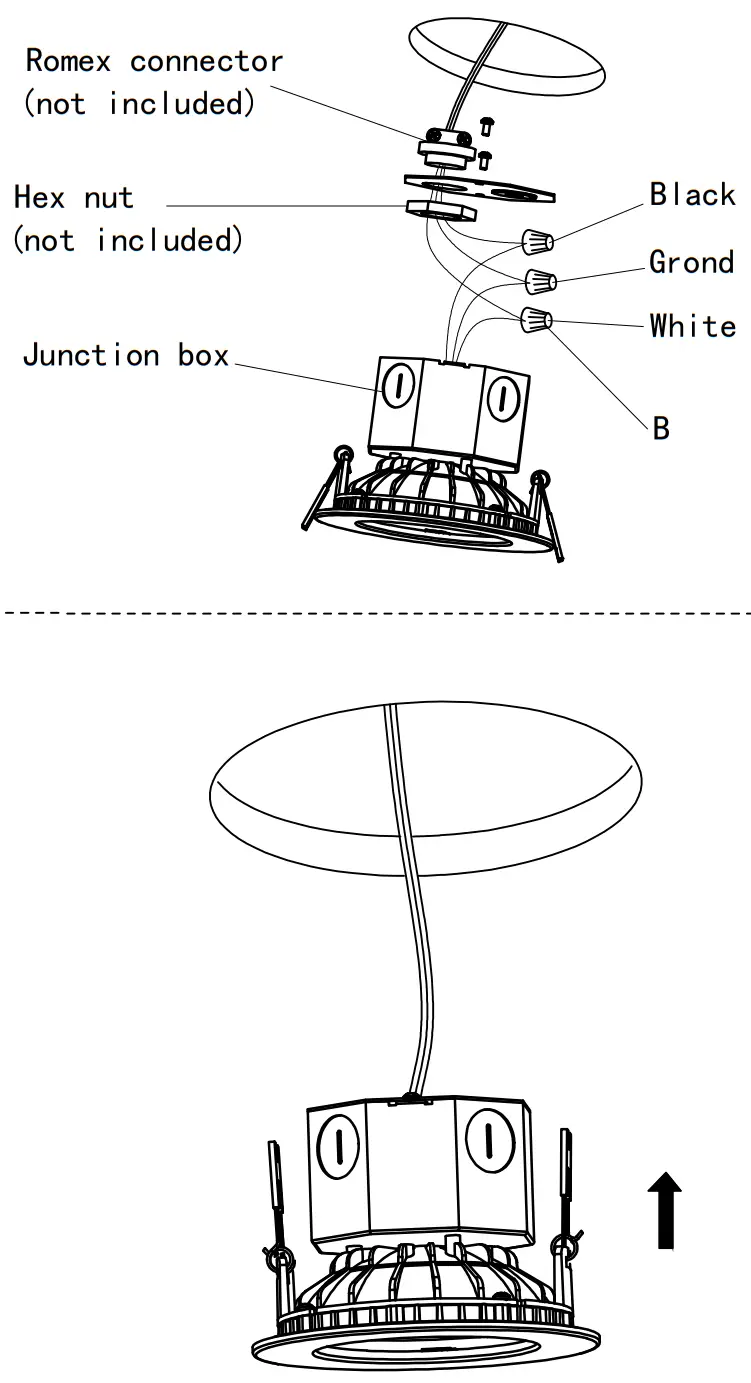

| B |  WIRE NUTS | x3 |
| C |  FRAMEItem#57790(it is sold seperately) | x1 |
hole diameter:
57792/57793:0110mm(4 1/3in)
57797/57798:0160mm(6 1/3in)

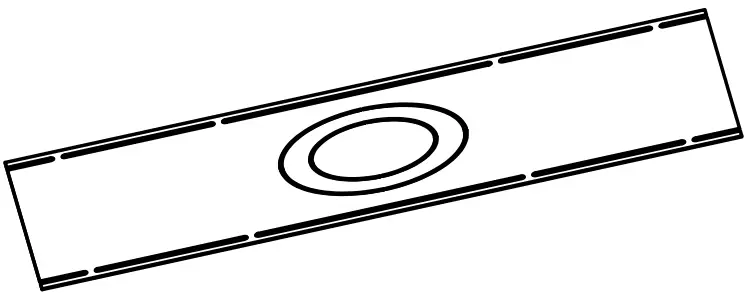

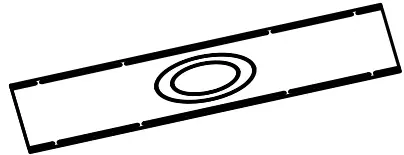

Cove Rough in Plate for New Construction (Hanging weight: 10lb)
