ELCO Lighting ERT413CT5W 4 inch LED Recessed Gimbal Downlight with 5-CCT Switch
4″ LED Recessed Gimbal Downlight with 5-CCT Switch
Our 4″ LED Recessed Gimbal Downlight is designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. IC-Rated for use with direct contact with insulation.
| Features Specifications
Adjustable Gimbal offers 25º tilt range Wattage 10W IC Airtight for use with direct contact to insulation. Designed to fit in plenums as shallow as 3″. Lumens 650 lm Eliminates the need for housing. Voltage 120V New Construction application requires mounting plate or frame. Color Temp. 2700K, 3000K, 3500K, Remodel applications require no additional accessories. 4000K, 5000K Wet Location allows for use indoors or outdoors. Dimmable Triac/ELV ETL listed Lamp Type LED Includes driver and Jbox. CRI 90+ Wet Location Listed
Technical Details
Optics: Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.
Construction: IC rated driver and fixture are tested and approved for direct contact with insulation. Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside aluminum remote box with two knockouts with slots for pryout.
Installation: Designed for super shallow ceiling plenums without any housing. High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation. Maximum hole size should not exceed 4 1/4″ for this product. Suitable installation for t-grid and drop ceiling applications.
Electrical: Standard input wattage is 10W, 65 lumens per watt.
Dimmability: Works with 120V Triac/ELV type dimmers. Dims down to 10%. For full list of dimmers, refer to the Dimmer Compatability List.
Listings: ETL Listed for Wet Locations. IC-Rated for direct contact with insulation.

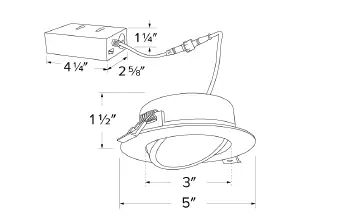

Warranty: 5-year limited warranty. | Dimensions
| |
| Product Numbers | ||
| Item Lamp Lumens CCT | Watts Voltage Dimming Finish | |
| type | ||
| 2700K, | ||
| 3000K, | ||
| ERT413CT5W LED 650 lm 3500K, | 10W 120V Triac/ELV White | |
| 4000K, | ||
| 5000K | ||

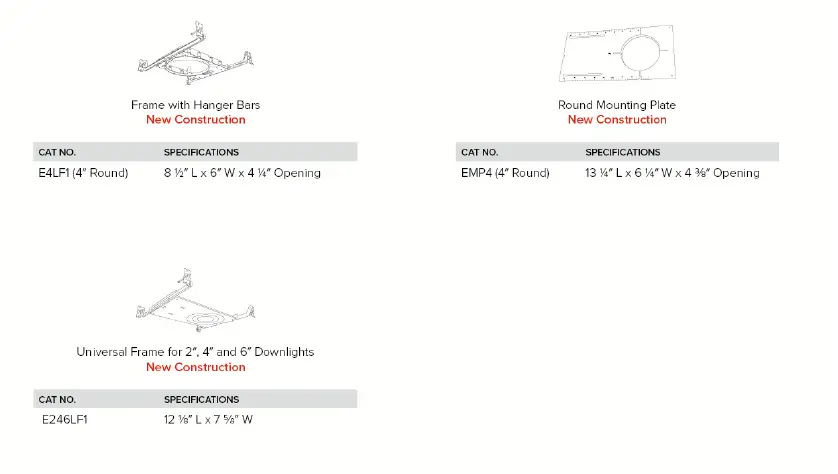

4 Elm” New Construction Frames

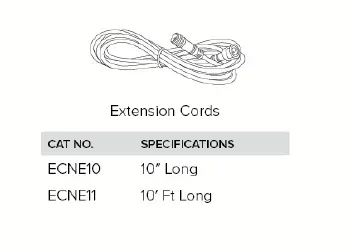

4″ Elm” Accessories
2042 E. Vernon Ave., Vernon, CA 90058 • Tel (323) 231-2600 Fax (323) 231-3200 • elcolighting.com
© ELCO Lighting 2022. All rights reserved • Rev. 12 Jul 2022 • ELCO Lighting reserves the right to make specification and design changes without notice.
