Electrolux Kfib19x 90cm Ultimatetaste 700 Island Extractor Hood User Manual

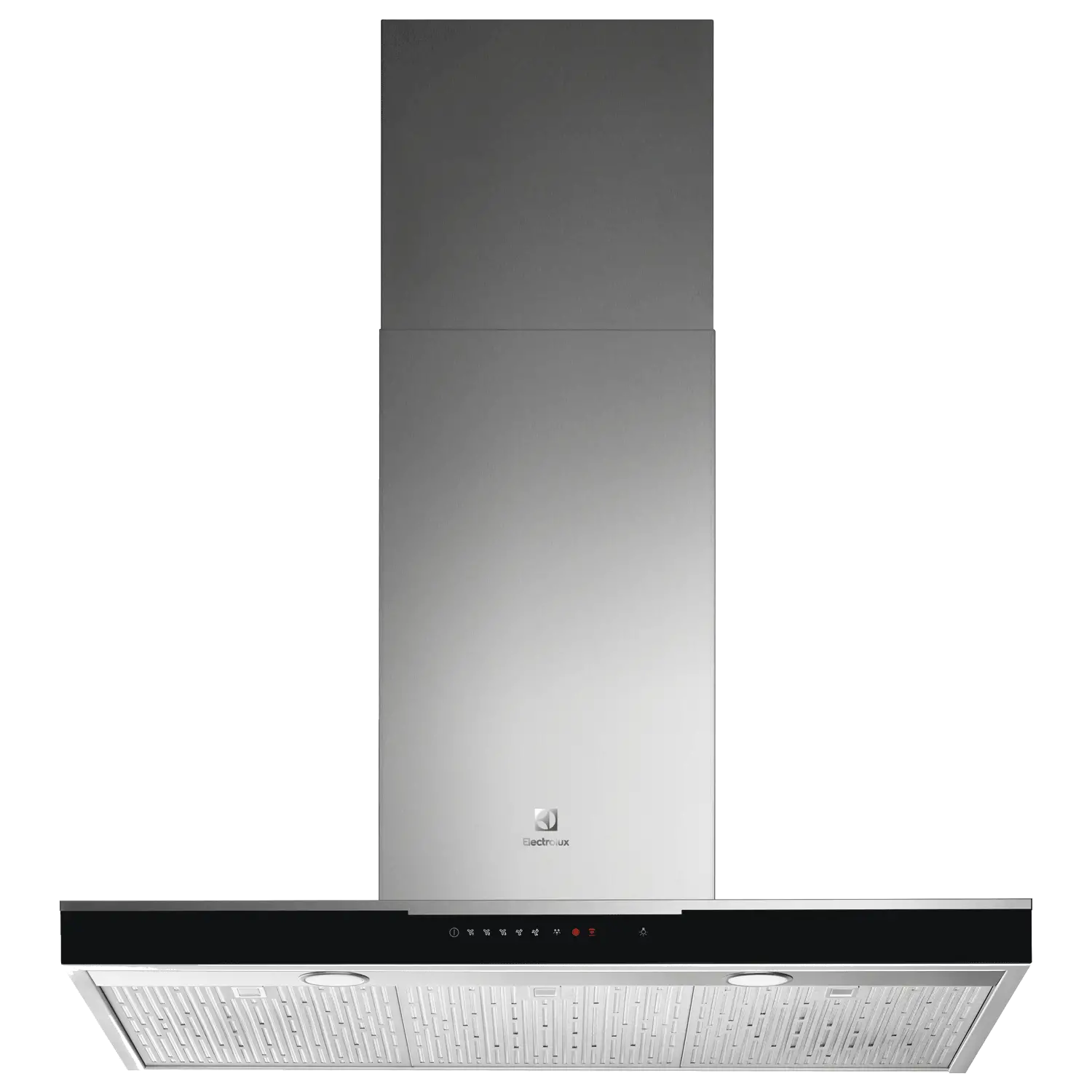

Electrolux KFIB19X 90cm UltimateTaste 700 Island Extractor Hood

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:

• Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support
• Register your product for better service: www.registerelectrolux.com
• Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

• Always use original spare parts.
• When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
• The information can be found on the rating plate.
• Warning / Caution-Safety information General information and tips Environmental information

Subject to change without notice.

SAFETY INFORMATION AND INSTALLATION

WARNING!
Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.

PRODUCT DESCRIPTION

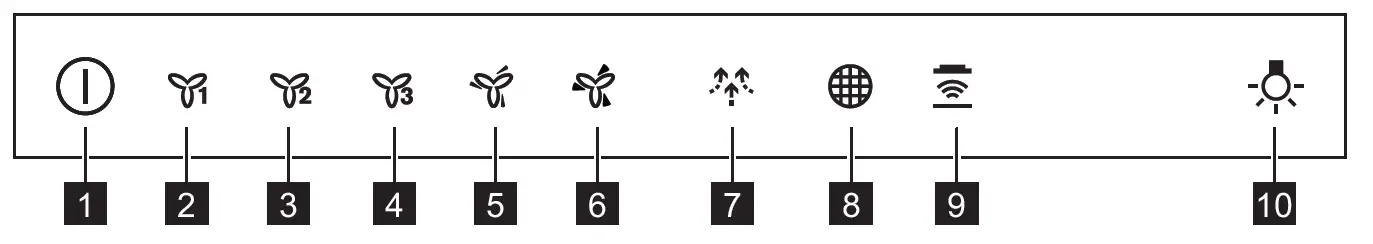

Control panel overview

DAILY USE

Using the hood
Check the recommended speed according to the table below.

While heating up food, cooking with covered pots.

While cooking with covered pots on multiple cooking zones or burners, gentle frying.

While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.

While boiling and frying big quantities of food without a lid, big humidity.

Refreshes the air in kitchen after cooking at a very low noise level. It can be activated and de-activated by touching the symbol. The function turns off automatically after 60 minutes. Use after cooking only.

• It is recommended to leave the hood operating for approximately 15 minutes after cooking.
• The control Panel is a sensor field. Touch the symbols for 1 second to activate the functions.

To operate the hood:

• Turn on the appliance by pressing the symbol.
  • You can now activate the functions.
• To activate the function touch the symbol.
  • The hood’s light works independently to other hood functions.
  • To illuminate the cooking surface touch .To change the light intensity touch and hold the symbol again.

To turn off the appliance press the symbol again.

Hob²Hood function

It is an automatic function that connects the hob to a hood. Both the hob and the hood have an infrared signal communicator. The speed of the fan is defined automatically on basis of the mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.
For more information how to use the function refer to the hob user manual

Activating Maximum MotorSpeed

When you touch it, the MaximumMotor Speed starts to operate for 8 minutes. After that time, the appliance returns to its previous speed settings.
When the function is turned on, additional touch on does not have any effects.

Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.
Refer to cleaning the grease filter in care and cleaning chapter.
Refer to cleaning the charcoal filter or replacing the charcoal filter in the care and cleaning chapter. To reset the function touch for 3 seconds.

To activate or deactivate the function:

1. Switch on the control panel.
2. Make sure that the icons are turned white.
3. To activate the function touch for 3 seconds.If the function is activated, the filter icon flashes five times.
4. To deactivate the function touch for 3 seconds. If the function is deactivated, the filter icon turns on for 4 seconds.

CARE AND CLEANING

Notes on cleaning

	Do not use abrasive detergents and brushes. Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
	Clean stains with a mild detergent.

Keep the hood clean

• Clean the appliance and grease filters each month.
• Clean the inte‐rior and grease filters carefully from fat.
• Fat accumulation or otherresidue may cause fire.
• Follow the instructions for cleaning the accessories when filter noti‐fication is on.
• Refer to Filter notification in daily use chapter.
• Grease filters can be washed in a dishwasher.
• The dishwasher must be set to a low temperature and a short cy‐cle.
• The grease filter may discolour, it has no influence on the per‐formance of the appliance

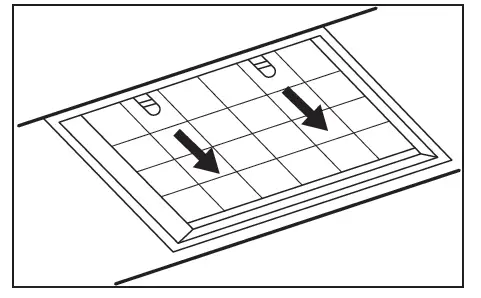

Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side

To clean the filter:

1. Pull the handle on the filter underneath the hood (1) and slightly tilt the front of the filter down.
2. Clean the filters using a sponge with nonabrasive detergents or in a dishwasher.
   The dishwasher must be set to a low temperature and short cycle. The grease filter may discolor, it has no influence on the performance of the appliance.
3. To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable

Replacing the charcoal filter

WARNING! The charcoal filter is non-washable!

To replace the filter:

1. Remove the grease filters from the appliance. Refer to “Cleaning the grease filter” in this chapter.
2. Pull the tabs toward the bottom part of the filter
3. Slightly tilt the front of the filter downwards, then pull.
4. To install a new filter, perform the same steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to “Service” in the “Safety Instructions” chapter.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with household waste. Return the product to your local recycling facility or contact your municipal office.
