ELCO Lighting logoERT415CT5W 4 Inch LED Recessed Downlights
Instructions Manual

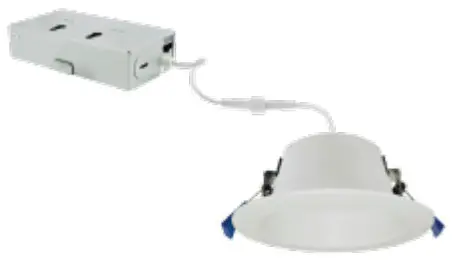

ELCO Lighting ERT415CT5W 4 Inch LED Recessed DownlightsELCO Lighting ERT81DXCT5W 8 Inch 120-277-347V Ultra Slim LED Round Panel Light - icon

Our 4″ LED Recessed Downlights are designed for quick and easy installation without housing for both new constructions and remodel applications, giving you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K, or 5000K. IC-Rated for use with direct contact with insulation.



Features

  • IC Airtight for use with direct contact to insulation.
  • Designed to fit in plenums as shallow as 3″.
  • Eliminates the need for housing.
  • Not for use with E8LF1
  • Remodel applications require no additional accessories.
  • Wet Location allows for use indoors or outdoors.
  • CA Title 24 and ENERGY STAR Compliant.
  • Includes driver and Jbox.

Specifications

Wattage11W
Lumens750 lm
Voltage120V
Color Temp.2700K, 3000K, 3500K,
4000K, 5000K
DimmableTriac/ELV
Lamp TypeLED
CRI90+
Wet LocationListed

Technical Details

Optics: Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.
Construction: IC-rated driver and fixture are tested and approved for direct contact with insulation. Aluminum die-cast trim ring with durable powder coat finish preventing rust and paint cracking. Plenum-rated cable connector to connect from module to remote driver box. Isolated driver integrated inside the aluminum remote box with two 7/8″  knockouts with slots for payout.
Installation: Designed for super shallow ceiling plenums without any housing. High-strength steel spring clip for easy installation. A hole cut-out template was provided for accurate hole size for proper trim installation.
The maximum hole size should not exceed 8 1/4″ for this product. Can be used with a maximum of one layer of 5/8″ thick drywall. Suitable installation for t-grid and drop ceiling applications.
Electrical: The driver connects directly to the 120/277/347V power supply. The standard input wattage is 15W, 63 lumens per watt. Replaces 100W incandescent.
Dimmability: Works with 120/277/347V dimmers. Dims down to 10%. For a full list of dimmers, refer to the ELM System Dimmer Compatability List.
Listings: ETL Listed for Wet Locations. IC-Rated for direct contact with insulation. Air Tight certified in accordance with ASTM E283-2004. Califonia Title 24 compliant  (JA8-2016-E) Warranty: 5-year limited warranty.

Dimensions

ELCO Lighting ERT81DXCT5W 8 Inch 120-277-347V Ultra Slim LED Round Panel Light - Dimensions

Product Number

ItemLamp typeLumens CCT Watts VoltageDimmingFinish
ERT81DXCT5WLED1200 lm2700K,
3000K,
3500K,
4000K,
5000K
20W120/277/347VTriac/ELV/0-10VWhite

Compatible Products
For use with 4″ Elm System Slim Panels

4″ EIm” New Construction Frames.

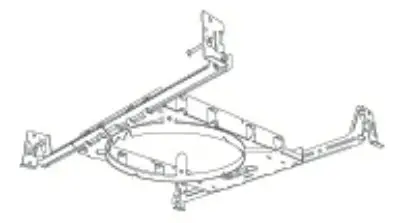

ELCO Lighting ERT415CT5W 4 Inch LED Recessed Downlights - Frames

Frame with Hanger Bars
New Construction

CAT NO. SPECIFICATIONS
EA4LF1(4″ Round)8%Lx6Wx4%4 Opening

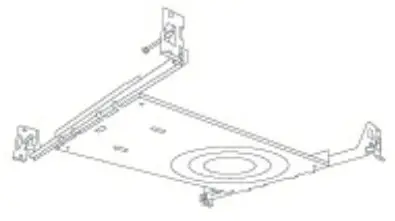

ELCO Lighting ERT415CT5W 4 Inch LED Recessed Downlights - Frames 2Universal Frame for 2,4 and 6 Downlights
New Construction

CAT NO. SPECIFICATIONS
E246LF12%Lx7%W

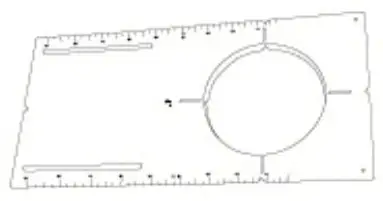

ELCO Lighting ERT415CT5W 4 Inch LED Recessed Downlights - Frames 3Round Mounting Plate
New Construction

CAT NO.SPECIFICATIONS
EMP4 (4″ Round)13%4″Lx6%4Wx4% Opening

2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600 Fax (323) 231-3200
elcolighting.com
© ELCO Lighting 2022. All rights reserved
Rev. 01 Feb 2022
ELCO Lighting reserves the right to make specification and design changes without notice.
