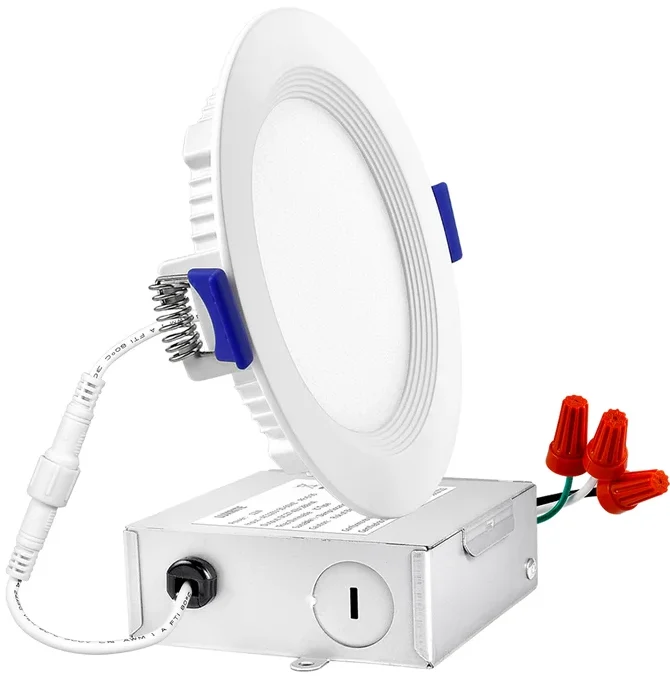

ELCO Lighting ERT41DXCT5W 4 Inch 120-277-347V Ultra Slim LED Round Panel Light

These unique 4″ ultra slim panel light designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. This IC-rated fixture can be installed indoor or outdoors.

Features

• IC Airtight for use with direct contact to insulation.
• Designed to fit in plenums as shallow as 2″.
• Eliminates the need for housing.
• New Construction application requires mounting plate or frame.
• Remodel applications require no additional accessories.
• Wet Location allows for use indoors or outdoors.
• Meets CA Title 24 and ENERGY STAR standards.
• Includes driver and Jbox.

Specifications

• Wattage: 12W
• Lumens: 750 lm
• Voltage: 120/277/347V
• Color Temp. 2700K, 3000K, 3500K,QMMMhI=RMMMh
• Dimmable: Triac/ELV/0-10V
• Lamp Type LED
• CRI: 90+
• Wet Location Listed

Technical Details

• Optics: Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.
• Construction: IC rated driver and fixture are tested and approved for direct contact with insulation. Aluminum die-cast trim ring with durable powder coat finish preventing rust and paint cracking. Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside aluminum remote box with two 7/8″ knockouts with slots for pryout.
• Installation: Designed for super shallow ceiling plenums without any housing. High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation. Maximum hole size should not exceed 4 1/4″ for this product. Suitable installation for t-grid and drop ceiling applications.
• Electrical: Driver connects directly to 120/277/347V power supply. Standard input wattage is 12W, 62.5 lumens per watt. Replaces 70W incandescent.
• Dimmability: Works with 120/277/347V dimmers. Dims down to 10%. For full list of dimmers, refer to the ELM System Dimmer Compatability List.
• Listings: ETL Listed for Wet Locations. IC-Rated for direct contact with insulation. Air Tight certified in accordance with ASTM E283-2004. Meets Califonia Title 24 (JA8-2016-E) standards.
• Warranty: 5-year limited warranty.

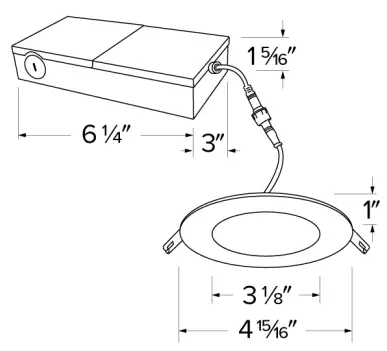

Dimensions

Product Number

Builder Example: ERT41DXCT5W

4″ Elm New Construction Frames

• CAT NO.
  E4LF1(4″ Round)
• SPECIFICATIONS
  8″ Lx 6″ Wx 44″ Opening

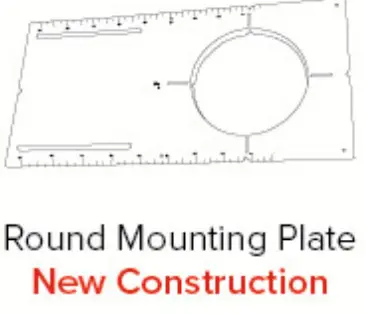

• CAT NO.
  EMP4(4 Round)
• SPECIFICATIONS
  13 4″ Lx 6 4″ Wx 4 ” Opening

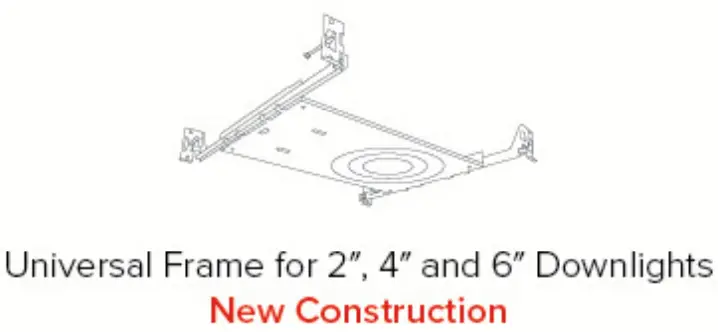

• CAT NO.
  E246LF1
• SPECIFICATIONS
  12 6″ Lx 7 5″ W

2042 E. Vernon Ave., Vernon, CA 90058 • Tel (323) 231-2600 Fax (323) 231-3200 • elcolighting.com
© ELCO Lighting 2022. All rights reserved • Rev. 01 Feb 2022 • ELCO Lighting reserves the right to make specification and design changes without notice.
