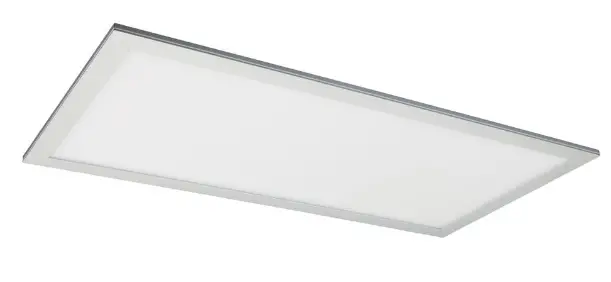

DOMUS PANEL-306-BLT Rectangular 25W LED Panel Light
PANEL-306-BLT
| 17617 | PANEL-306-BLT | 16W LED PANEL, white finish – TRIO |
Thank you for purchasing your new LED PANEL-306-BLT, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.
Specifications
| Voltage: | 240V | Lumen (±5%): | WW – 1300lm, NW – 1500lm, W – 1400lm | Dimmable: | No |
| Power: | 16W | Lifespan: | 50,000hrs | Operating Temp: | -10ºC~40ºC |
| IP Rating: | 20 | CCT: | 3000K – 4000K – 5700K (switchable) | Power Factor: | ≥0.9 |
| CRI: | ≥80 | ||||
| Suspending: Mounting clips and suspension kits are required – (sold separately) | |||||

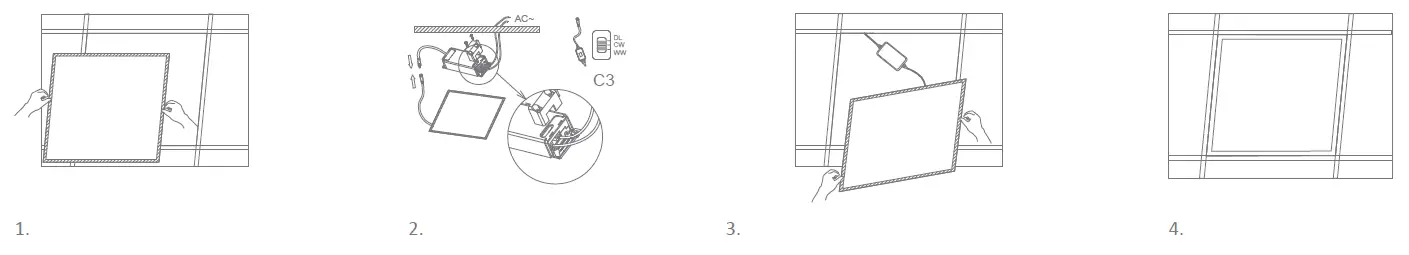

Recessed into ceiling
- Remove ceiling plaster tile.
- Connect power supply.
- Fix the panel light into the right place.
- Stabilise the panel.

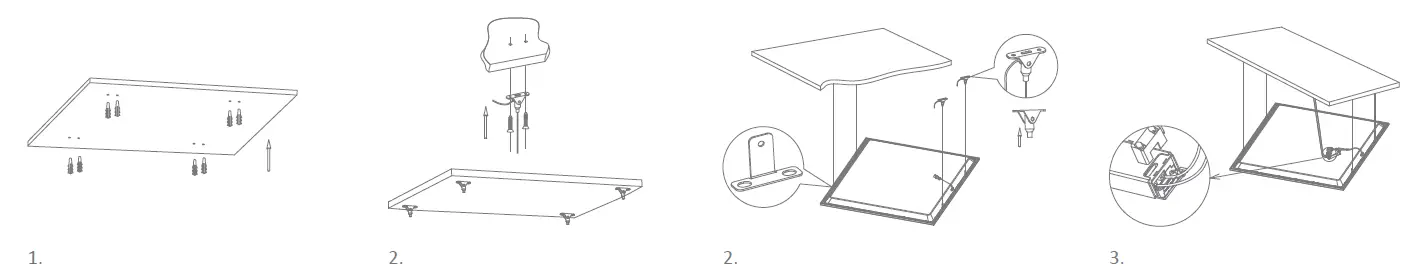

Suspending
- Fix the anchor into target place on the ceiling.
- Fix the installation mount on the ceiling with plastic anchor.
- Hang the panel to ceiling with suspended installation kits.
- Adjust the length of steel wire. Connect the power supply.

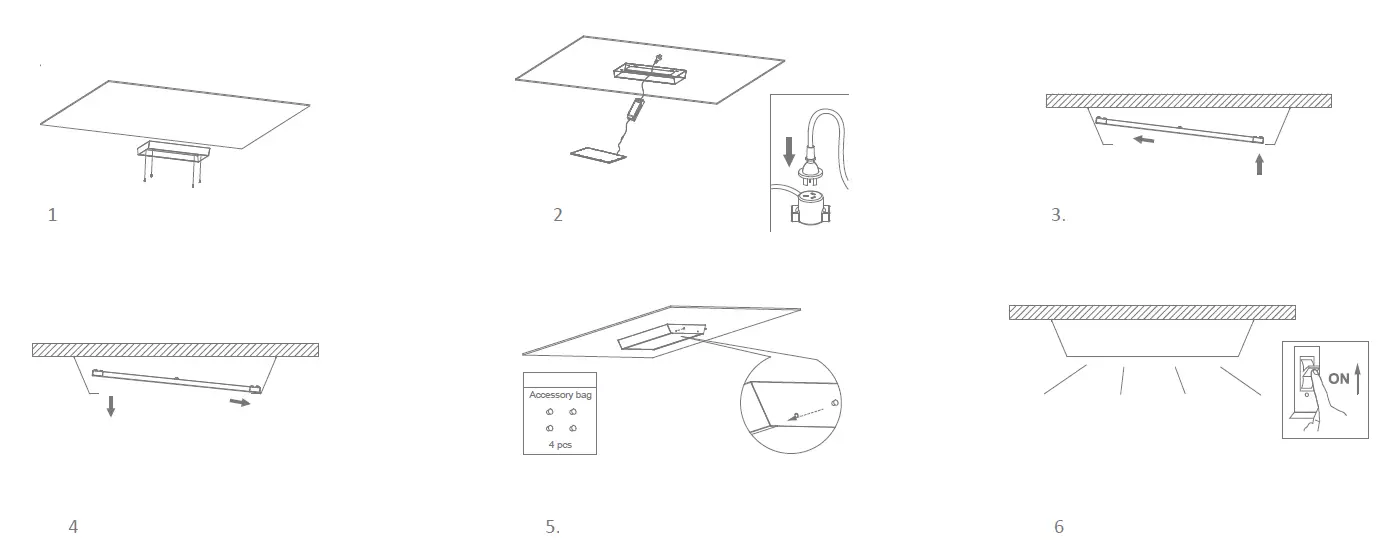

Surface Mounted
- Fix the frame onto the ceiling except plaster ceiling.
- .Insert plug of panel into mains socket.
- Slightly tilt and insert the panel into one side of the frame
- Move the panel into the other side of the frame
- Insert the plastic plugs into the 4 holes to keep the panel stable.
- Turn on the main power supply
Note:
- The lamp must be installed by professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
