This document covers the household ceiling mounted lamp FLOALT and serves as a guide on the product’s assembly, connection, operation, transportation, storage and disposal.
! Read this manual carefully before using the unit. Please keep the manual until the end of the product’s operation.
! Information on types of hazardous exposure
The product contains no hazardous or harmful substances that may release during the product’s life cycle according to operating rules.
 | WARNING: ALTERNATING CURRENT VOLTAGE OF 220V IS POTENTIALLY LETHAL! |
GENERAL INFORMATION
The product was designed for general lighting of indoor spaces. The product is certified.
TECHNICAL FEATURES
Source voltage (alternating current), V ……….. 110-240V
Network power frequency, Hz…………….….. 50-60Hz
Maximal total capacity of the lamp, W………… 29W
Bulb socket type………………………………. Built-in LED light source
Operating temperature, °C …….…………… +5 – +40
Relative humidity, %, not exceeding…………. 80
The product’s protection rating …………….. IP20
Material ……………………………….…… Plastic, Aluminium
Service Life…………………………………. 10 years
The product can still be used after the end of service life, if you follow the safety information and other instructions in the user manual. When you decide to stop using the product, please contact your local recycling facility regarding disposal of the product.
OPERATION
Safety measures
| Important! All works on assembly and installation of the lamp should be performed only with a disconnected power supply! |
– It is prohibited to use the lamp in a very humid environment (bathroom, etc.).
– If you use bulbs with higher capacity or of a structure different than those indicated in the user manual and on the lamp’s marking, the lamp may stop working and result in the loss of the right for warranty service.
– Clean the lamp with a soft dry cloth.
– Do not use chemically active or aggressive cleaning agents to clean the lamp.
How to use
Inspect the product in order to ensure the integrity of the plug, the power cord and the lamp. Insert the plug into the socket.
MAINTENANCE
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
TRANSPORTATION AND STORAGE
The product should be transported and stored in the package in compliance with safety precautions to avoid mechanical damage and exposure to atmospheric precipitation.
DISPOSAL
The product should be disposed of in compliance with local legal requirements.
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
PROBABLE MALFUNCTIONS AND METHODS FOR REMEDY
| Important! All works targeted at the remedy of possible malfunction of the product should be performed only with a disconnected power supply! |
| The lamp doesn’t work | – check the supply-line voltage – make sure that the bulb has suitable voltage and capacity – check the bulb’s performing capacity – check the bulb’s position |
If these methods were of no use, contact qualified specialists.
PRODUCT DATA
| Product name | FLOALT |
| Product type | Household Ceiling lamp |
| Product model or Art.nr | Typ L1528 FLOALT |
| Trademark | IKEA |
| Country of origin | China |
| Manufacturer | IKEA of Sweden AB |
| Address | Box 702, ÄLMHULT, S-343 81, Sweden |
| Regarding the quality of IKEA products contact seller | LLC IKEA DOM, Russia, 141400, Moscow Region, Khimki, IKEA microdistrict, bldg. 1 – through the form on website http://www.IKEA.ru/, by phone 8 (800) 234-55-66 or to the IKEA Service department in any IKEA store. |
| Importer | LLC “IKEA TORG”, bld. 1, microraion IKEA, Khimki, Moscow region, 141400 Russia, tel.: +7(495) 737-5301, fax: +7(495) 737-5324 |
| Manufacture date: | Date of manufacture specified in the format DD.MM.YY on the label or package |
For questions about the quality of IKEA goods, please contact the seller: LLC IKEA DOM, Russia, 141400, Moscow Region, Khimki, IKEA microdistrict, bldg. 1 – through the form on website http://www.IKEA.ru/, by phone 8 (800) 234-55-66 or to the IKEA Service department in any IKEA store.
IMPORTANT!

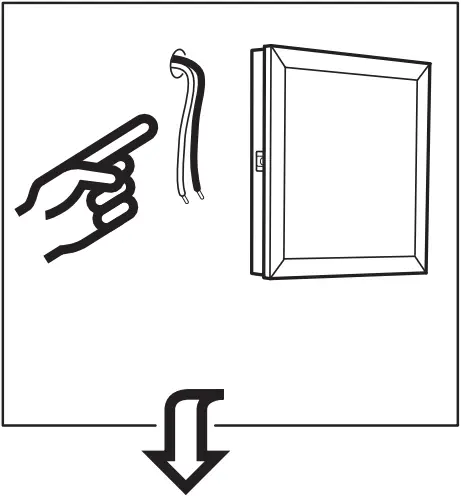

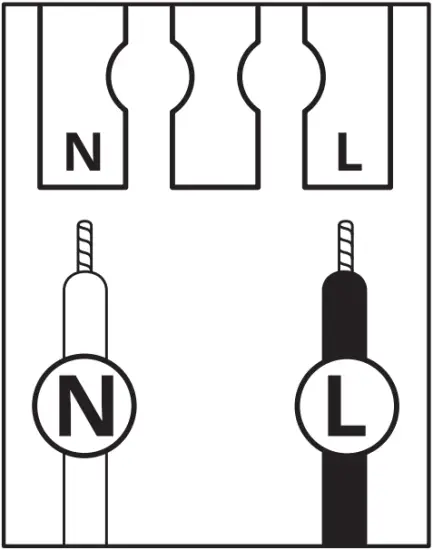

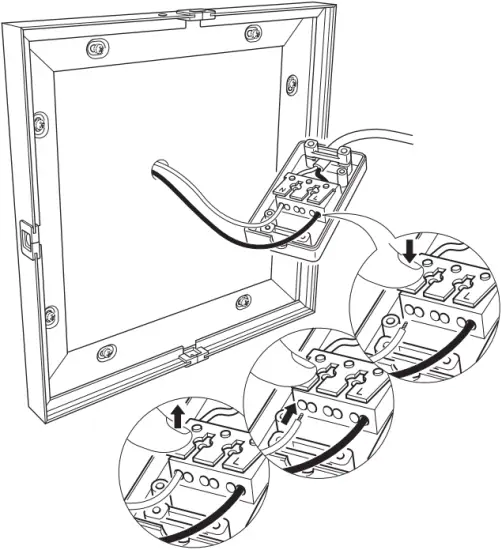

Always shut off power to the circuit before starting installation work. In some countries electrical installation work may only be carried out by a authorised electrical contractor. Contact your local electricity authority for advice.
Different materials require different types of fittings. Always choose screws and plugs that are specially suited to the material.
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
1
2
3
4
5
6
7
8
9
10
11
12

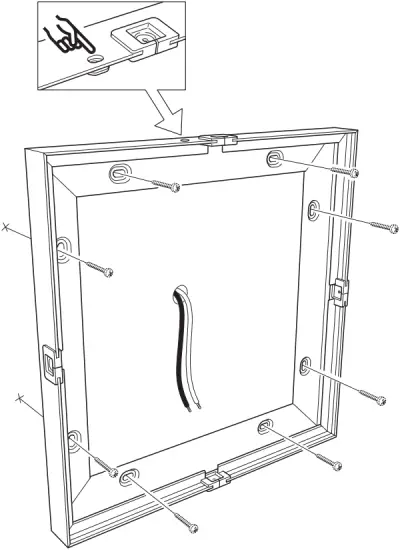

3
4

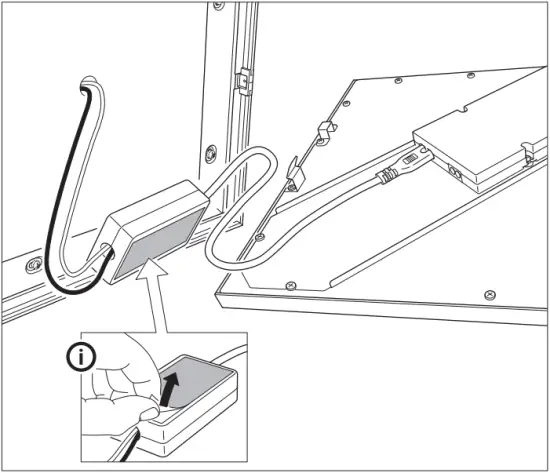

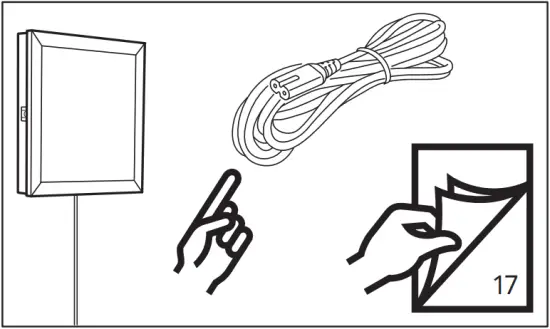

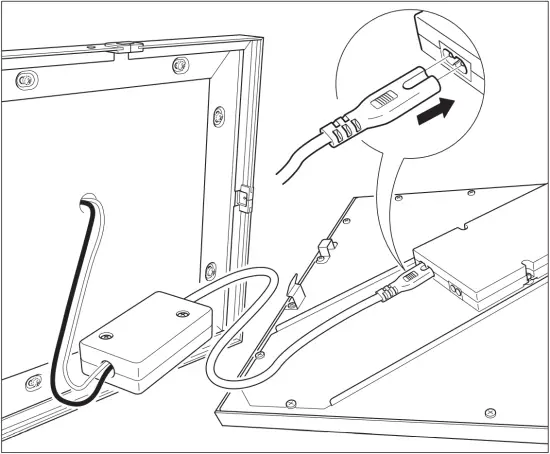

FÖRNIMMA power supply cord is sold separately.

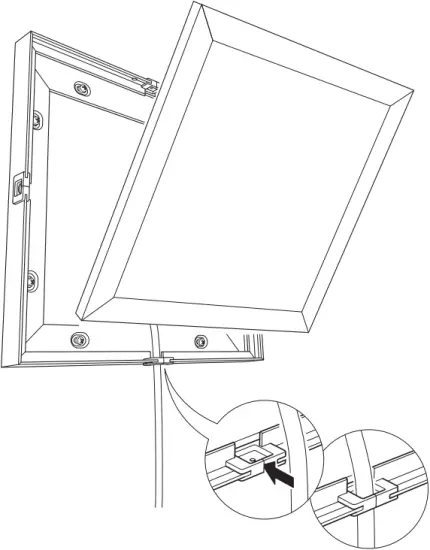

5

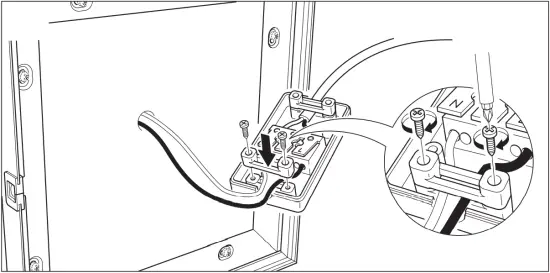

6
7
Max 10 LED units in one combination.

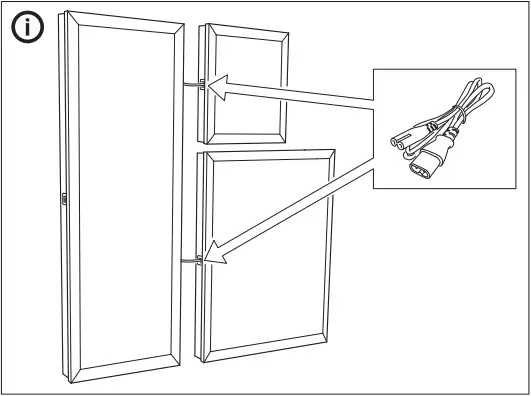

FÖRNIMMA intermediate connection cord is sold separately.
© Inter IKEA Systems B.V. 2019 2021-04-27 AA-2195290-2
