Simply Retrofits VO-PR6W13-347-D-3WY 6 Inch Slim Round LED Panel
IMPORTANT SAFETY INSTRUCTIONS
WARNING
- Instructions pertaining to a risk of fire, electric shock or injury to persons.
- Recessed downright installation requires knowledge of luminaires electrical systems. Installation should be done by a certified electrician.
- To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
- Suitable for damp Location
- Energy Star rated, IC-rated for direct contact with lnsu1auon, airtight rated and ETL oeltlfied fisted compliant.
PRODUCT SPECIFICATION
- Lumens per fixture: 1050LM
- Total consumption: 13W
- Light color: 3000K-4000K-5000K

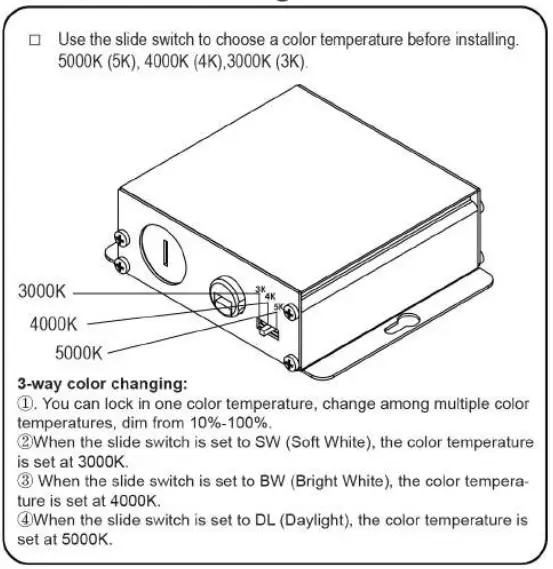

Choosing a color temperature before installing

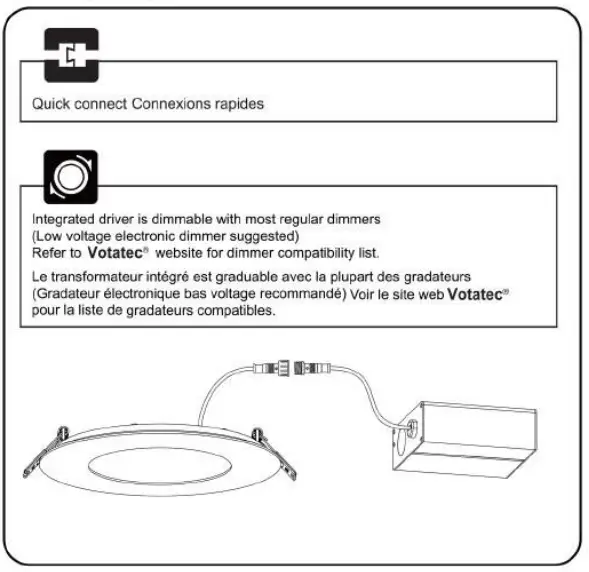

Connecting the lamp body with the driver
Compatible fixtures (sold separately)
6″ Slim Round Panel LED (WITH SELECTABLE COLOR TEMPERATURES)
Warranty
Votatec® offers a warranty of 5 years from the date of purchase that covers repair or replacement of defective parts of the housing, optics, and electronics.
instructions before Installation
WARNING – BEFORE STARTING INSTALLATION, SHUT THE LINE FEED POWER OFF USING THE CIRCUIT BREAKER.

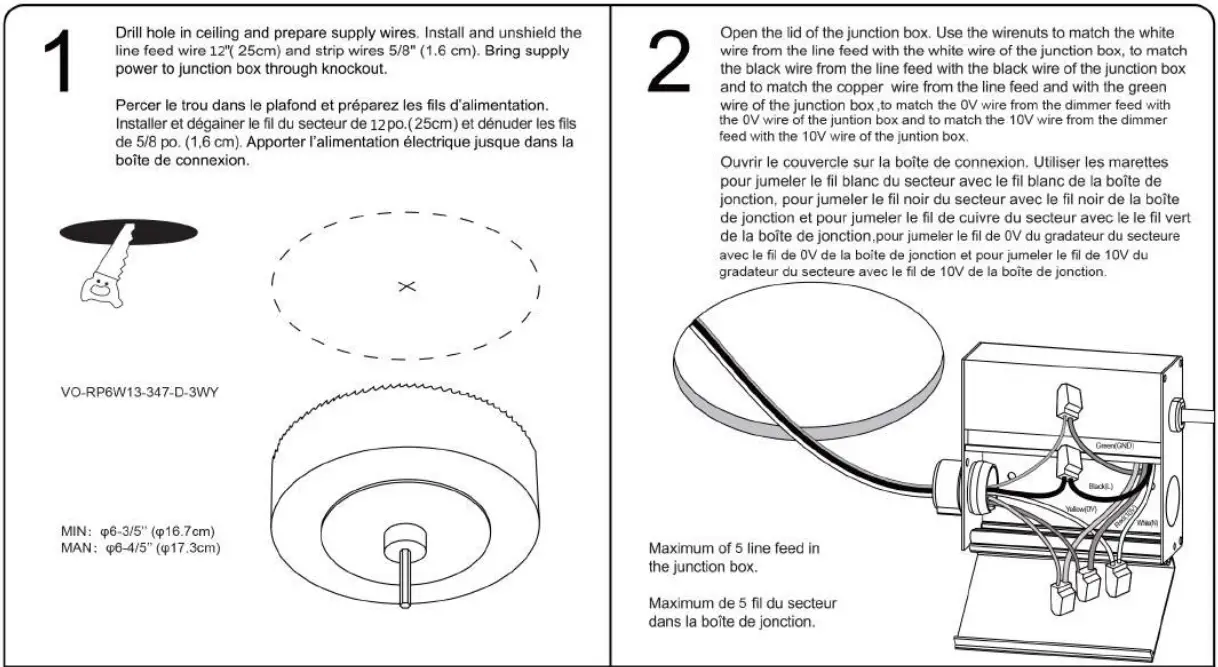

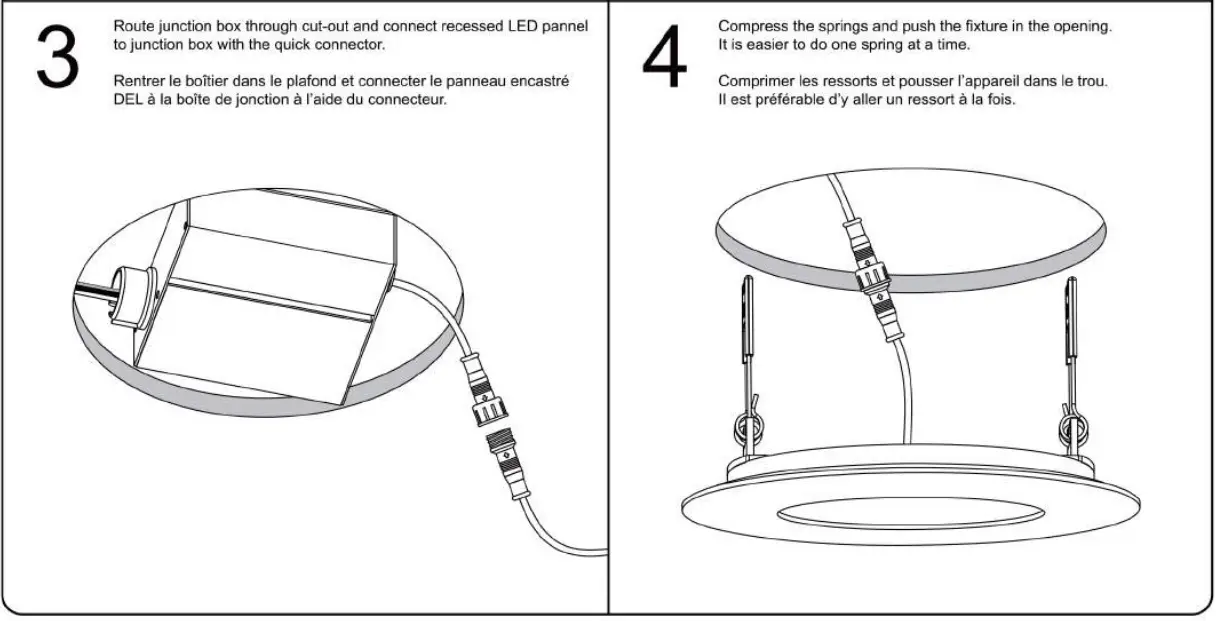

Installation instructions
