Litepanels 945-2101 Rgbww Led Hard Panel Instruction Manual

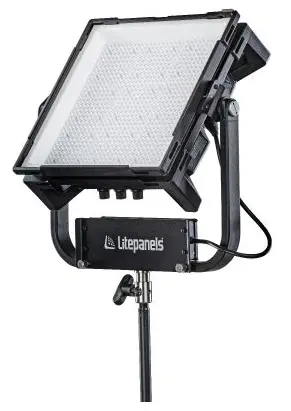

 GEMINI RGBWW LED Panel 1X1
HARDRGBWW LED Panel

The power to create extraordinarily.

Power your imagination to create the extraordinary on screen. With an incredibly bright output of over 3000 lux @10ft/3m, Gemini 1×1 Hard delivers the brightest and most accurate 1×1 light ever. Blast through silk, build layers of diffusion or bounce light off a board, with precision control of hue, saturation, intensity, gels and effects, Gemini 1×1
Hard gives you the power to control and create your own extraordinary.

• The most powerful 1×1 panel
• Over 3,000 lux at 10ft/3m (Daylight) with a 46° beam angle
• Ultra-light and domed diffusers included for softer light in an instant
• Extended white color temperature range from 2,700-10,000K
• Outstanding color accuracy, TLCI/CRI 98
• Full RGBWW color gamut mixing
• Hue, Saturation and Intensity control
• Full plus/minus green color correction
• 0.1 – 100% automatic flicker-free dimming at any frame rate or shutter angle
• Wired or wireless DMX & Bluetooth remote control options
• Multi-voltage 100-240VAC; DC Input 13-33VDC
• Optional mobile battery power with 100% intensity output
•  Lightweight: 13.2lbs / 6.0kg including yoke and power supply litepanels.com

The power to create extraordinarily.

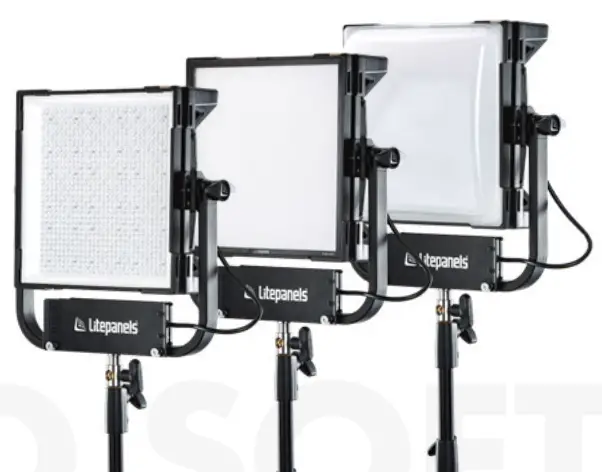

Ultra-bright, hard and soft light
HARD AND SOF
With an outstanding output of over 3000 lux @10ft/3m and a narrow 46-degree beam angle, Gemini Hard casts intense white or richly saturated color further than any other 1×1 LED panel. Remove the diffuser for an incredibly bright raw light – 20% more powerful than a 200W HMI – or use the ultralight and domed diffusers included with Gemini Hard to deliver perfect soft light with outstanding brightness.Lightweight design – industrial strength

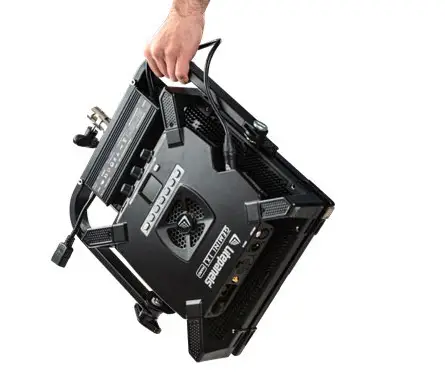

Tough enough to meet the rigorous demands of daily set life in the studio or on location, the compact and lightweight Gemini weighs just 13.2lbs/6kg for rapid rigging and easy transportation. Manufactured to industrial standards using durable, robust materials, Gemini is designed to protect your investment for years so you can rely on Gemini 1×1 Hard to work the first time, every time.
The choice on demand for fast-changing productions
The incredible power of Gemini Hard expands the creative potential of a 1×1 panel. With more power to command and control, you can use a wide range of diffusion and creative light shaping tools, not possible with less powerful fixtures. Combined with full RGB control of over 16 million colors, 300 gels and 11 customizable special effects, the Gemini 1×1 Hard adapts to your imagination.

Technical Information

Optical

Mechanical

* Including yoke and power supply

Operational

Electrical

• Gemini 1×1 14.4V Battery Plate (fits to yoke or directly on fixture)

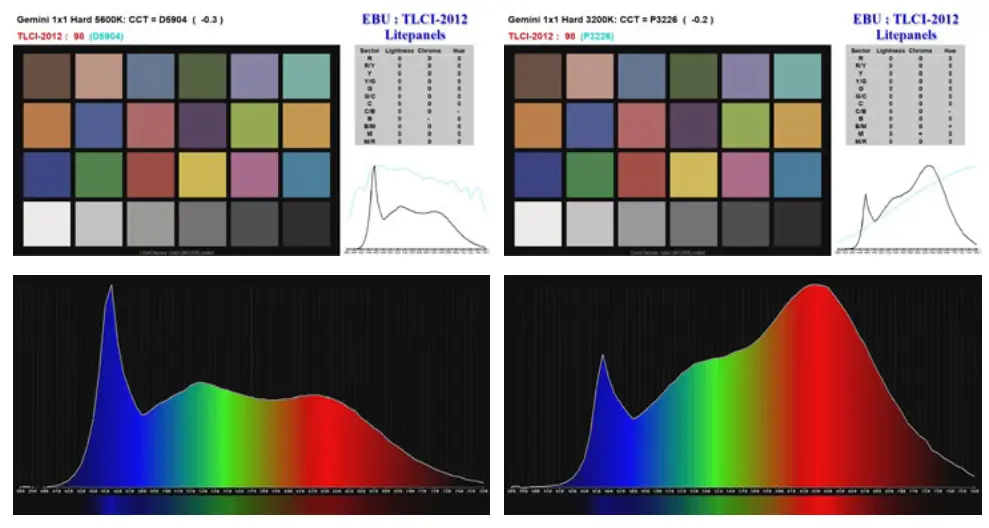

PHOTOMETRIC
Naturally accurate in any scene True to life color reproduction comes naturally with Gemini. With CRI and TLCI ratings of 98, Gemini 1×1 Hard delivers consistently accurate and dependable white light in any CCT from 2,700K – 10,000K with no color shift or flicker at any framerate, shutter angle, or at any intensity from 1000.1%. You can be sure that everything in your scene, from close-up candlelight to brilliant sunlight, appears true to life and the skin tones of your on-screen talent are rendered perfectly.

Accessories

900-3707 Gemini 1×1 Diffuser Heavy	900-3708 Gemini 1×1 Diffuser Medium	900-3709 Gemini 1×1 Diffuser Light	900-3711 Gemini 1×1 Diffuser Ultra-Light (included as standard)	900-3712 Gemini 1×1 Diffuser Domed (included as standard)
900-3703 Battery Plate Gold-Mount Gemini 1×1	900-3704 Battery Plate V-Mount Gemini 1×1	900-3617 Dual Gold-Mount Battery Bracket with XLR-Cable	900-3618 Dual V-Mount Battery Bracket with XLR-Cable	8075-0255 26V Gold-Mount Plus Dual Mounting Plate with XLR-Cable
900-3522 Light carry case for (2) Astra’s or (2) Gemini 1×1’s	900-3521 Light carry case for (1) Astra or (1) Gemini 1×1	900-3509 Fixture Cover for Astra and Gemini 1×1	900-3714 Hard Case Gemini 1×1	900-3715 Traveler Case Trio for Astra Family and Gemini 1×1
908-0001 Bluetooth Dongle	900-3601 Wireless DMX communications Module	900-3701 Barn Doors 4 Way Gemini 1×1	900-3702 Honeycomb 60 Deg, Gemini 1×1	900-3719 Snapbag Cloth set Gemini 1×1, 1/4, 1/2, Full
900-3720 Snap grid 40 deg Eggcrate for Gemini 1×1 Snapback	900-3722 Snapback Softbox Gemini 1×1 Hard with removable baffle	900-3717 Snap grid 40 deg Eggcrate for Gemini 1×1 Fixture	900-3718 Gemini 1×1 Pole-Operated-Yoke	900-3705 Dual Gemini 1×1 Array Kit with Yoke
900-3706 Quad Gemini 1×1 Array Kit with Yoke	900-3730 Gemini 1×1 Hard Dual Array Light Kit	900-3731 Gemini 1×1 Hard Quad Array Light Kit
