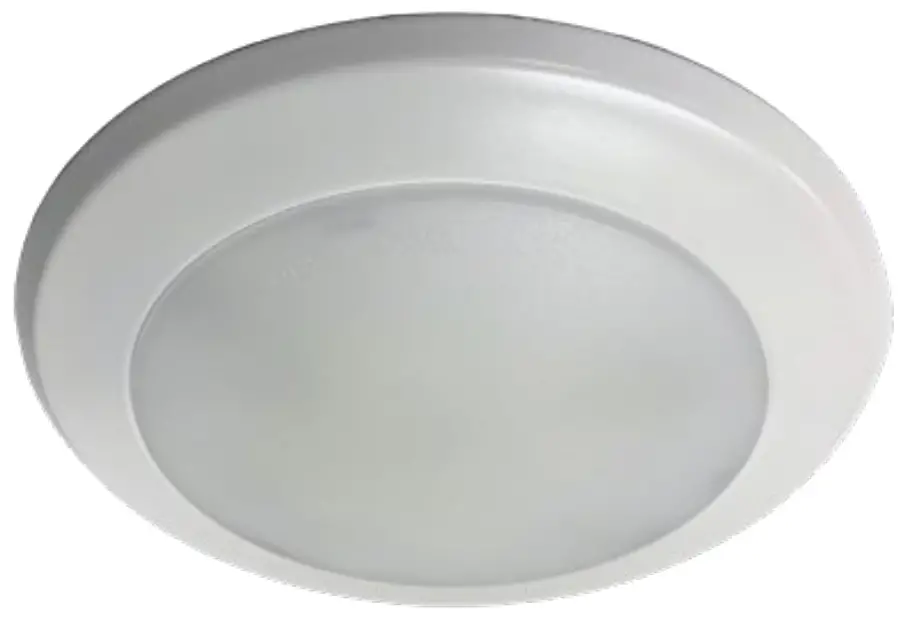

SMDJ2-40K15-120V LED Round Panel Light
User Manual

Important: Read all instructions prior to installation.
LED Round Panel Light

Safety and Notes

READ AND FOLLOW BELOW SAFETY INSTRUCTIONS GENERAL: All electrical connections must be in accordance with local and National Electrical Code (N.E.C.) standards. If you are unfamiliar with proper electrical wiring connections obtain the services of a qualified electrician.

• Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
• To prevent wiring damage or abrasion do not expose wiring to the edges of the sheet metal or other sharp objects.
• Suitable for wet locations.
• Suitable for Type IC or suitable for Type non-IC.
• Use only in open luminaires.
• This device is not intended for use with an emergency exit.
• This fixture is dimmable. The dimming range is 10%­100%. Please refer to the below compatible dimmer list.

-LEVITON: ROO-RNL06-TW,R50-IPL06-10M; -LUTRON: CT-600PR, MSCL-OP153MH, DVWCL-153PH, TGCL-153PR, MA-RR, DVCL-153PR, SCL -153PR, P·PKG1W·WH·R, MACL-153MH
WARNING: RISK OF FIRE OR ELECTRIC SHOCK DISCONNECT MAIN POWER AT FUSE OR CIRCUIT BREAKER BEFORE INSTALLING OR SERVICING THE FIXTURE

Installation Instructions

Junction Box Installation

• Turn off supply power.

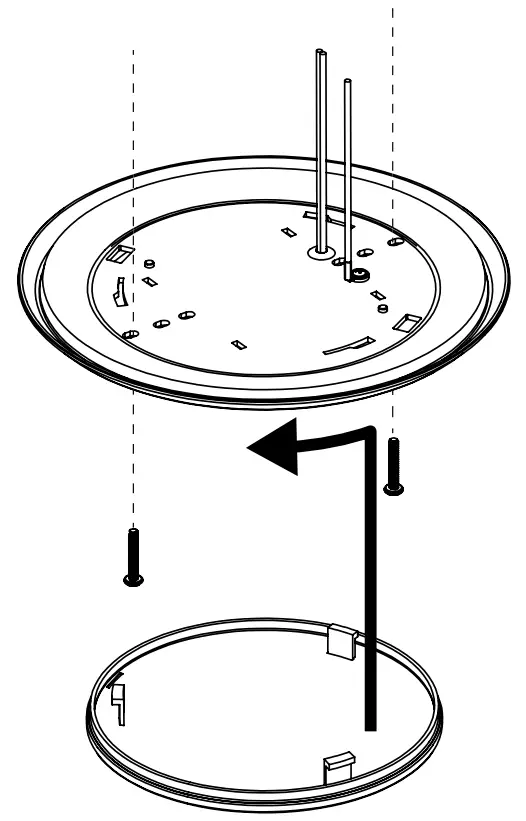

• Slide out the diffuser lens by rotating it.
• Connect wiring.
• Attach fixture to the surface or junction box or mounting surface.
• Re-attach the diffuser lens by pushing its rear tabs back into the slots on the fixture and rotating it.


Specifications

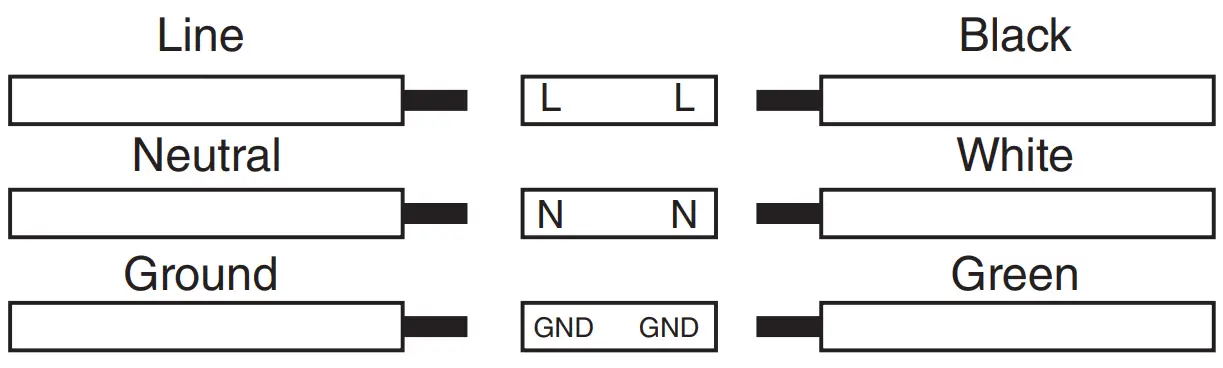

Wiring Diagram
