SUPER BRIGHT LEDS LPDBL Series Dimmable LED Panel Light

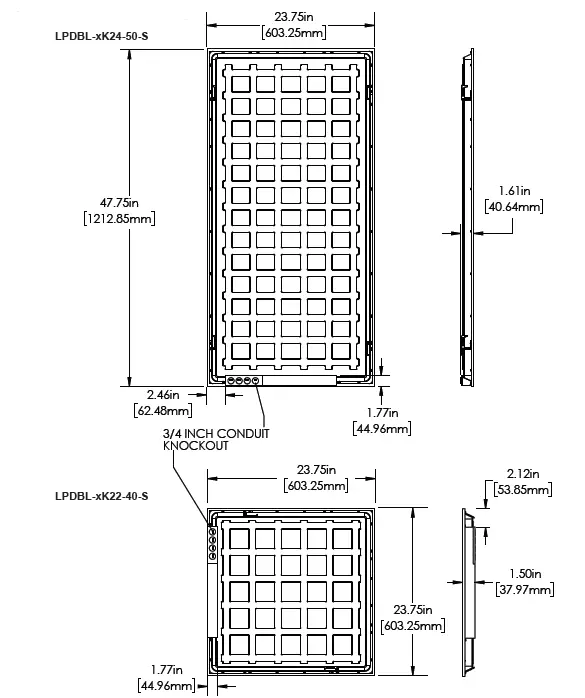

Dimensional Drawings
Included Parts
- – LED panel Light
Recommended Accessories
- 0–10V Slide Dimmer (F019)
- 0–10V Knob Dimmer (A019)
Specifications
| Model | LPDBL-xK22-40-S | LPDBL-xK24-50-S |
| Dimmable | 0–10 V | |
| Operating Temperature | -4°–113° F(-20°–45° C) | |
| IP Rating | IP20 | |
| Product Weight | 4.45 lb (2 kg) | 9.1 lb (4.1 kg) |
Check product label for specific electrical specifications related to installation. Improper installation will void warranty.
Safety Information
- Product should be installed by a certified electrician in accordance with applicable national, state, and local building and electrical codes.
- To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
- Avoid looking directly into the light when illuminated.
- Failure to properly support the fixture may result in damage or injury, for which the manufacturer does not assume responsibility. A safety cable is not included, but it is recommended that one be connected to grid clip during installation.

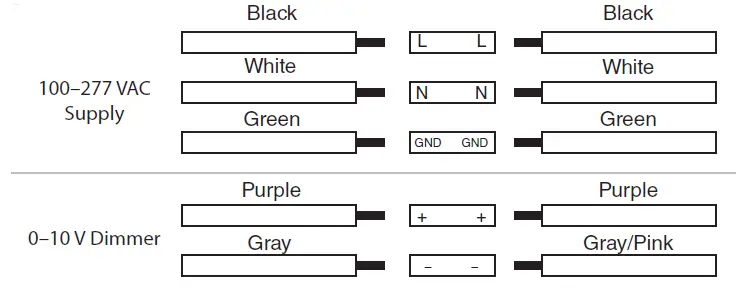

Wiring Diagram
Drop Ceiling Installation
- Turn supply power to circuit off. If installing as a retrofit, remove the existing fixture.
- Open driver box and remove knockout(s) for wiring. Make electrical connections using wiring diagram. Once complete, resecure driver box cover.

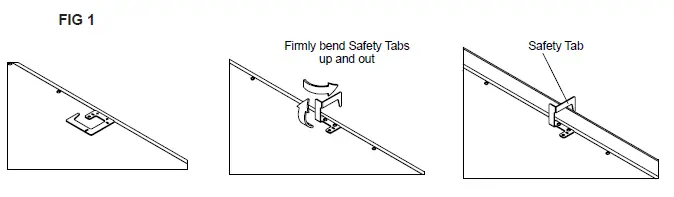

- Bend out safety tab to be vertical, then upper portion out 90 degrees. It is recommended that a safety cable (included) be installed to anchor the fixture as well.

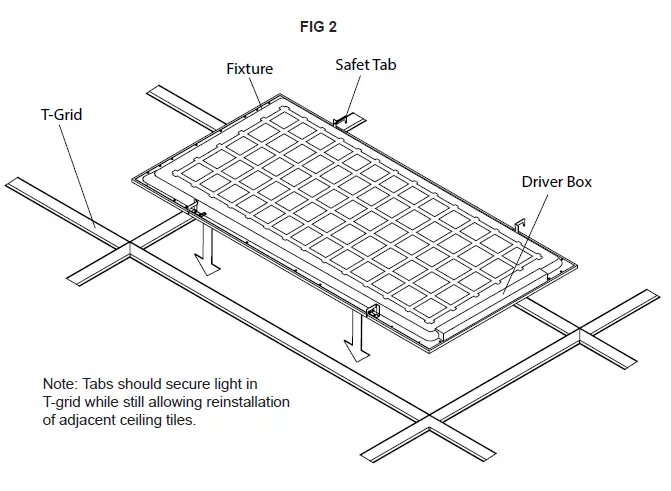

- Lay fixture into T-grid.
- Rev Date: V1 07/01/2019
