User Manual
VIL Series
Important: Read all instructions prior to installation.

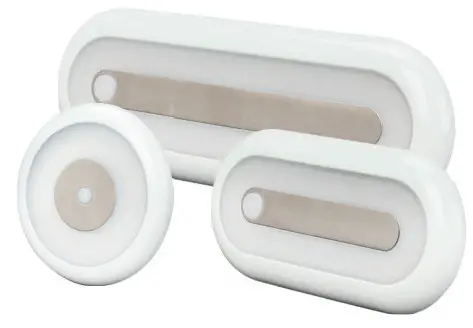

LED Vehicle Interior Lights
Safety and Notes
- To reduce the risk of electric shock, ensure that the battery/main power source is disconnected before performing any installation or wiring procedures.
- Avoid looking directly into the lamp when illuminated.
Specifications
| Environmental Specifications | |
| Input Voltage | 12–24 VDC |
| Operating Temperature | -40°–149° F (-40°–65° C) |
| IP Rating | IP67 |

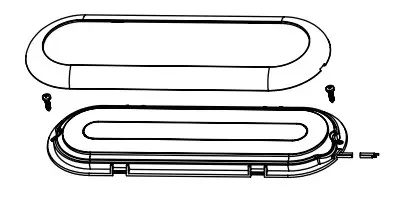

Mounting Options
- Carefully remove the front cover using a small screwdriver.
- Use housing to mark mounting hole locations and drill holes.
- Connect wiring.
- Mount light.
- Reinstall the front cover.
Wiring and Use

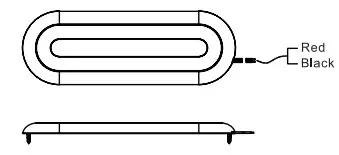

VIL-40K5-6O, VIL-40K8-9O, and VIL-40K9-5C
- Positive (red) and negative (black) wires connect to supply power
- An external switch can be used for on/off functionality

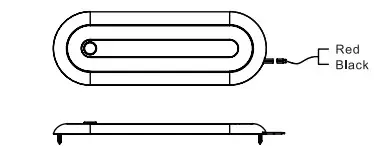

VIL-40K5-6OT, VIL-40K8-9OT, and VIL-40K9-5CT
- Positive (red) and negative (black) wires connect to supply power
- Once connected to power, the internal blue LED of the touch switch will be on continuously
- Pressing the touch switch will toggle the light between on and off
- Holding the switch will adjust the brightness until the switch is released

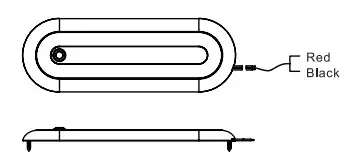

VIL-40K9-5CS
- Positive (red) and negative (black) wires connect to supply power
- The light automatically turns on when motion is detected. When motion isn’t detected for 35 seconds, the light automatically turns off
- The sensor range is 16.4 ft (5 m) in a 120° angle
