User Manual
RSL-Series
superbrights.com
Important: Read all instructions prior to installation.

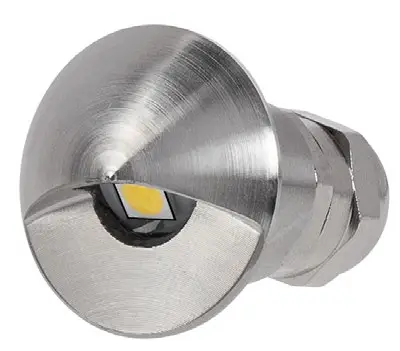

Recessed LED Step Lights
Included Parts
1 – step light
1 – wire pigtail
Safety and Notes
- This product should be installed and serviced in accordance with applicable national, state, and local building and electrical codes.
- To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures..
- When interconnected, each six-light accessory harness will support five lights each instead of six as the last connector will be used to connect to the next harness.
Optional Accessories
RSL-6S – six-light wire harness for single color light
RSL-S2M – 6.6 ft (2 m) extension harness for single color light
RSL-6RGB – six-light wire harness for RGB lights
RSL-RGB3M – 9.8 ft (3 m) extension harness for single RGB light
Specifications
| Model | RSL-x |
| Operating Temperature | -4°–122° F (-20°–50° C) |
| IP Rating | IP65 |
Installation
- Mark and drill 5/8” hole in the mounting surface.
- Make an electrical connection
- Test fit light. If needed, apply silicone adhesive to assist in securing light.

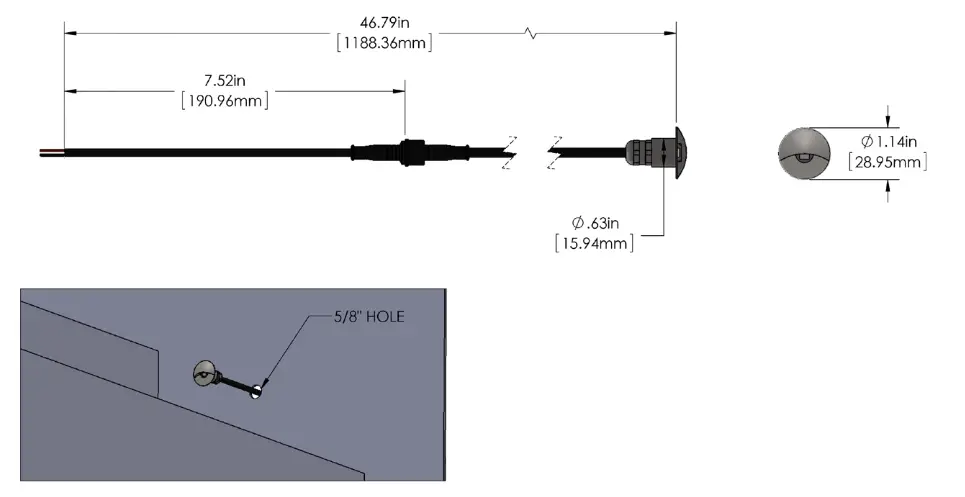

Dimensional Drawings
RSL-40K1-S shown (dimensions represent all models)
RSL-6RGB (Dimensions also represent RSL-6S)
Rev Date: V2 03/31/2022
