LCGP-50KC-70W LED Parking Garage and Canopy Light
User Manual

Important: Read all instructions prior to installation.
LED Parking Garage and Canopy Light

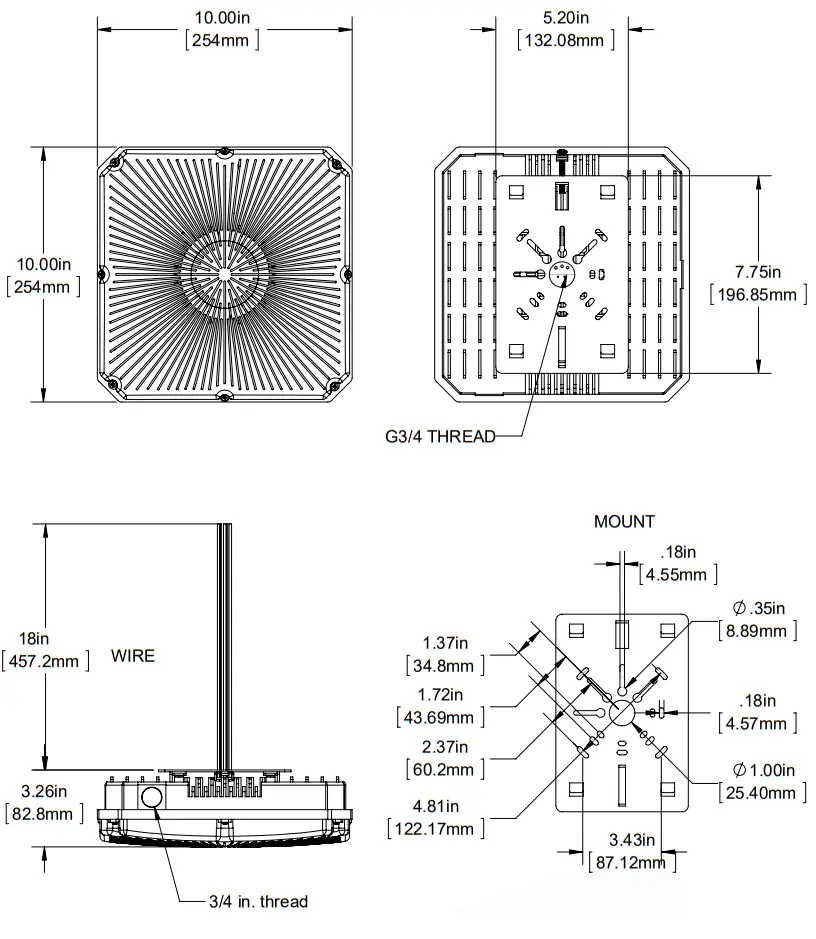

Dimensional Drawings

Important: Read all instructions prior to installation.
LED Canopy Light

Check the product labels for specific electrical specifications related to installation.
Improper installation will void the warranty.

Safety and Notes

• The product should be installed by a certified electrician in accordance with applicable national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
• Avoid looking directly into the lamp when illuminated.
• Ensure all amounts are securely attached and will support the weight of the fixture. Failure to properly support the fixture may result in damage or injury, for which the manufacturer does not assume responsibility.

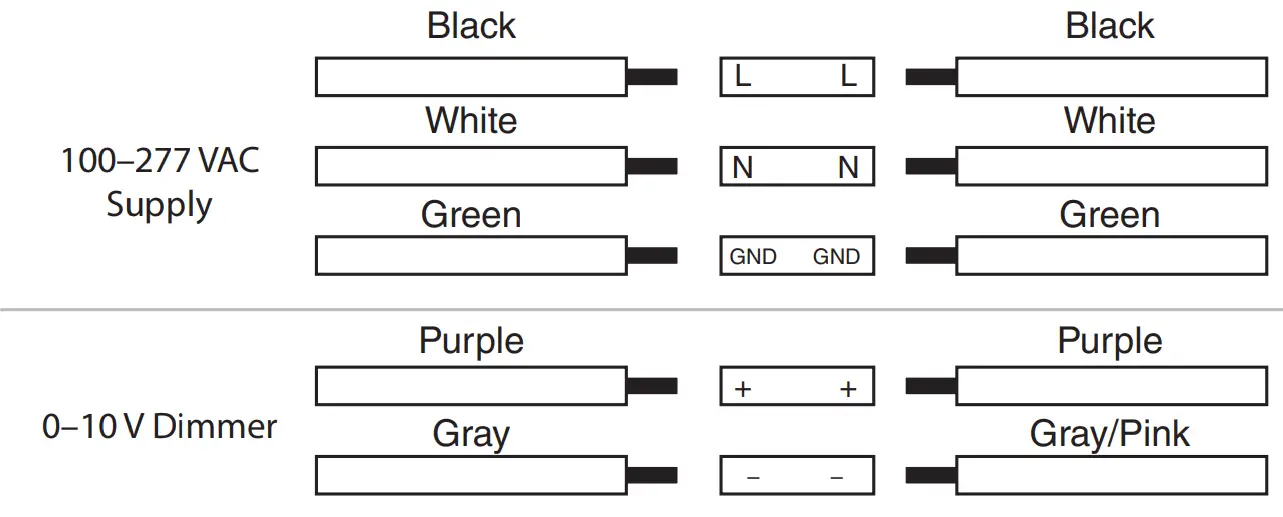

Wiring Diagram

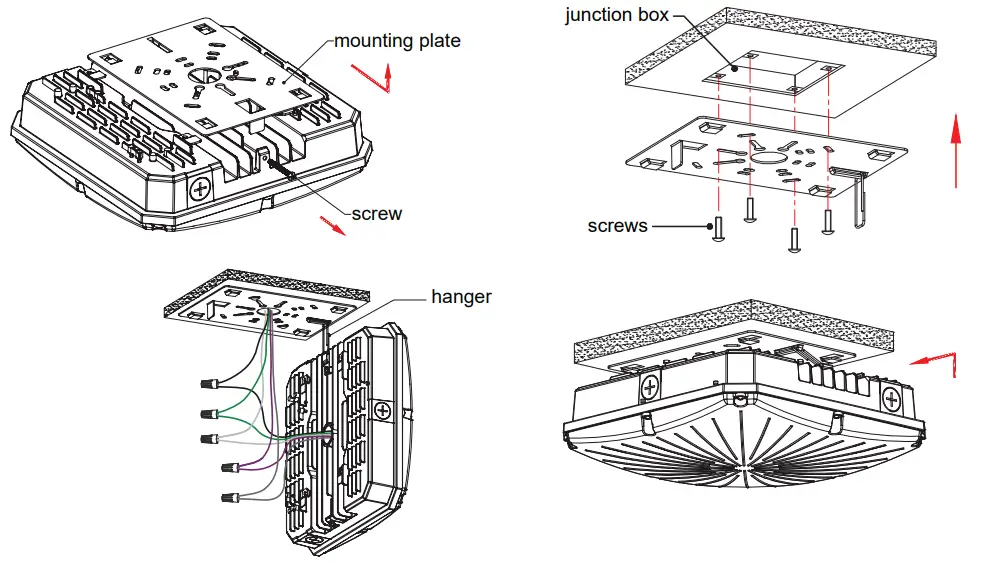

Surface Mounting Installation

1. Remove retaining screw and slide mounting plate off of light.
2. Attach the mounting plate to the junction box.
3. Use a hanger on the mounting plate to hold the light in place and connect the wiring. See the “conduit installation” section if wiring through the conduit.
4. Slide lamp onto the mounting plate.
5. Reinstall the retaining screw.

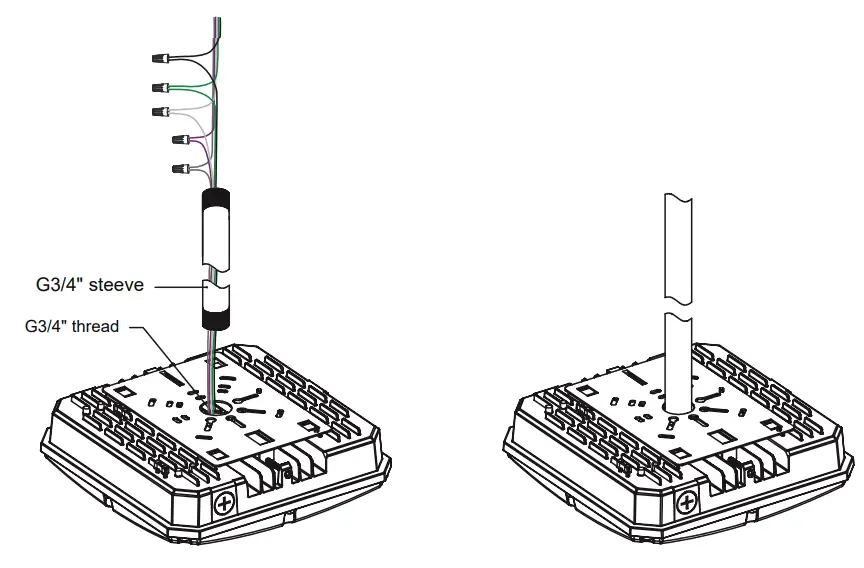

Pole/Pendant Mounting Installation

1. Connect wiring.
2. Thread light onto pole/pipe until secure.

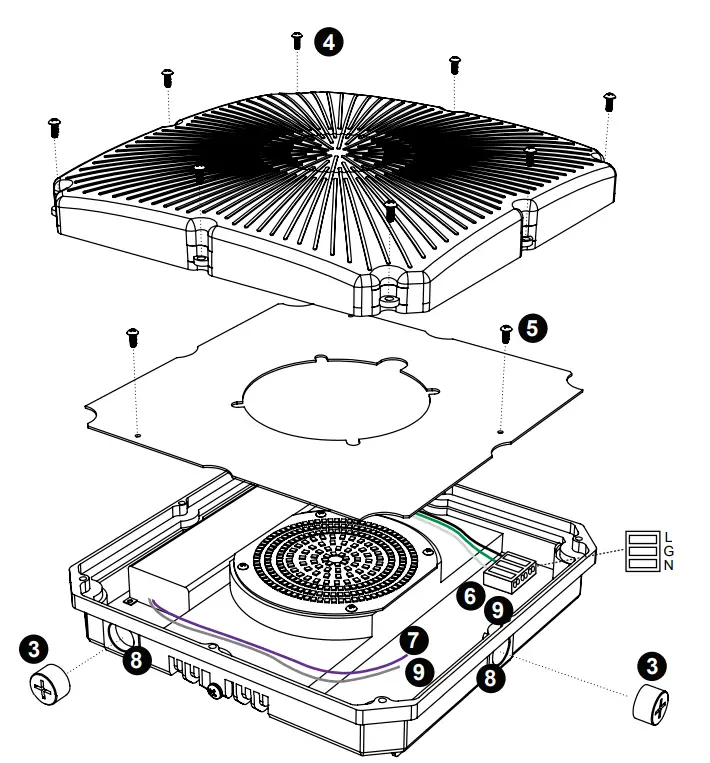

Conduit Installation

1. Remove supply power.
2. Cap unused wires exiting top/rear of the fixture.
3. Remove desired conduit plug(s).
4. Remove eight screws holding the lens in place and carefully remove the lens.
5. Remove the three screws holding the internal baffle in place and remove the baffle.
6. Remove the three wires (L, N, and G) from the input side of the terminal block and cap the unused wires on the inside of the fixture.
   Note: The exterior wiring may need to be trimmed down.
7. If using a dimmer, remove the dimmer wires from the wire caps and cap the unused wires.
8. Run the wire through and connect the conduit to a 3/4″ threaded hole(s) with adequate wire lead to make internal connections.
9. Connect supply wiring (L, N, and G) to the terminal block and connect dimmer wiring to the dimmer circuit.
10. Reinstall internal baffle and lens, then reapply supply power.

Rev Date: V2 01/12/2022
