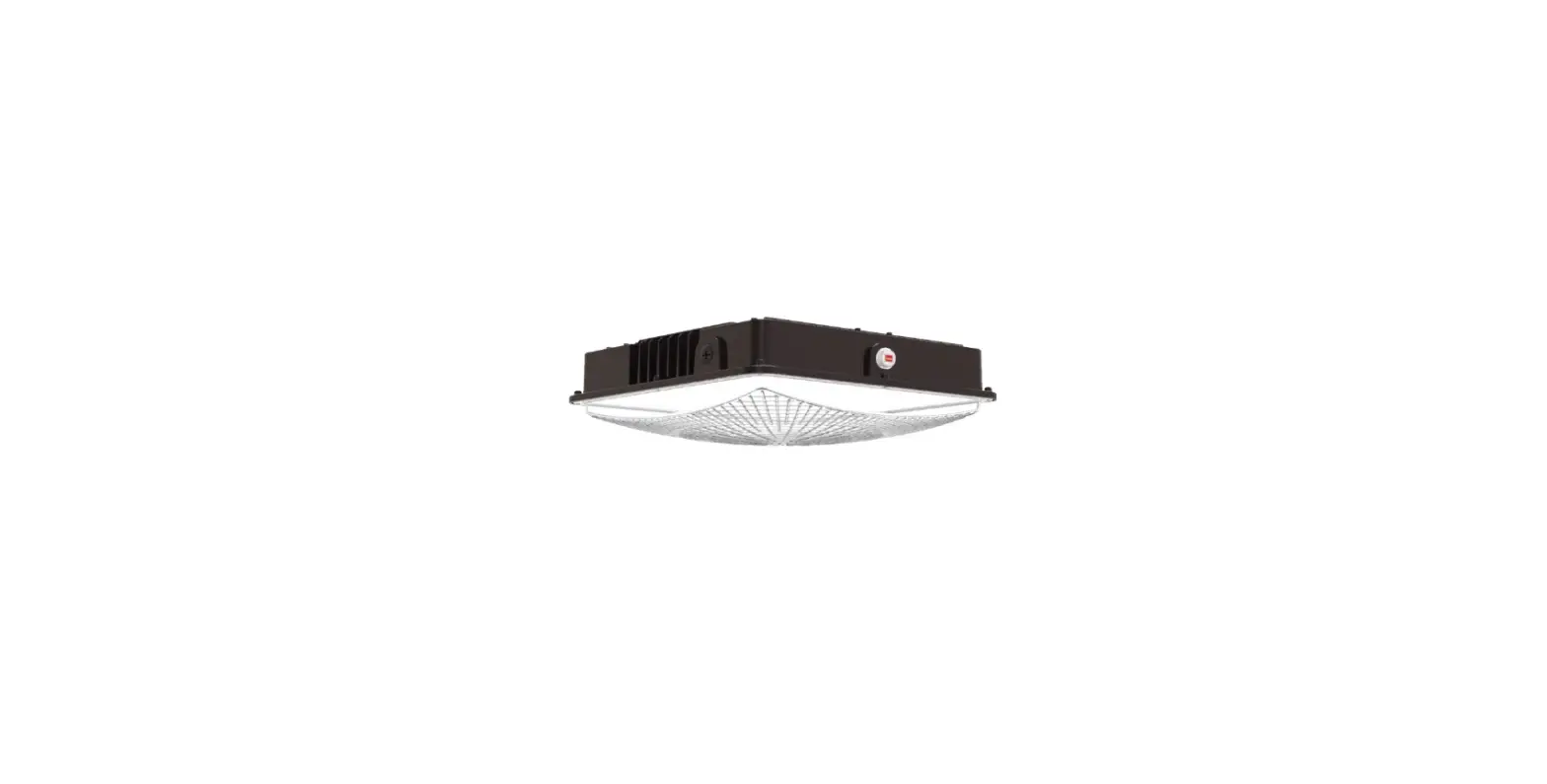

Super Bright LEDs LCGP2-SW3B-SP50-S LED Canopy Light
Specifications
| Environmental Specifications | |
| Operating Temperature | -40°–122° F(-40°–50° C) |
| IP Rating | IP65 |
Check product label for specific electrical specifications related to installation. Improper installation will void warranty.
Surface Mounting Installation
- Turn off supply power. Cap any unused wires.
- Remove retaining screw and slide mounting plate off of light.
- Attach mounting plate to junction box or surface.
- Make all wiring connections.
- Slide lamp onto mounting plate.
- Secure light with set screw.
Safety and Notes
- Product should be installed and serviced by a certified electrician in accordance with applicable national, state, and local building and electrical codes.
- To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
- Avoid looking directly into lamp when illuminated.
- Ensure all mounts are securely attached and will support the weight of the fixture. Failure to properly support fixture may result in damage or injury, for which the manufacturer does not assume responsibility.

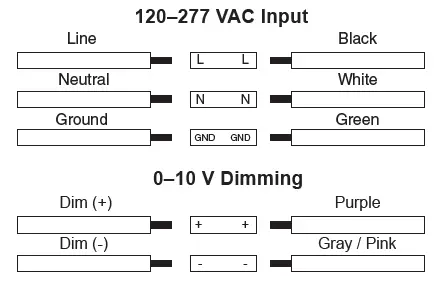

Wiring Diagram
Important: Read all instructions prior to installation

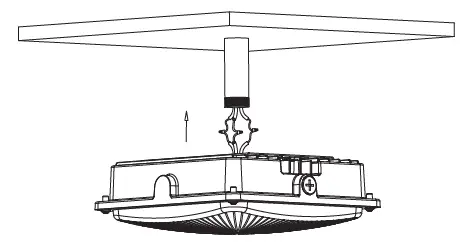

Conduit Mounting Installation
- Turn off supply power. Cap any unused wires.
- Remove conduit plug.
- Make all wiring connections.
- Thread light onto conduit until secure.

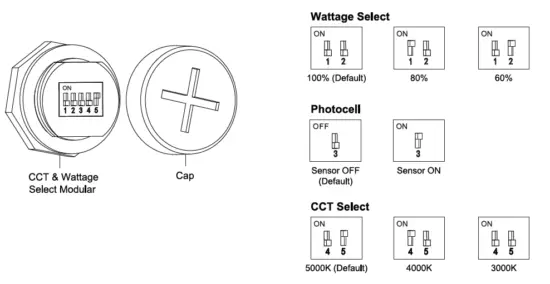

CCT & Wattage Selection (LCGP2-SW3B-x models)
Set DIP switch using the combinations listed.
