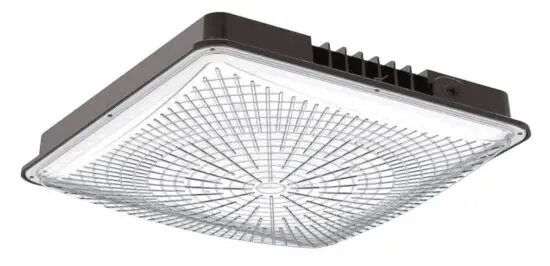

hykolity 80W LED Canopy Light User Manual
80W/100W/120W
3000K/4000K/5000K

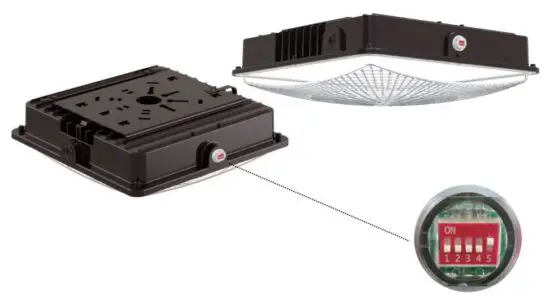

DESCRIPTION
LED CANOPY LIGHT | 120–277VAC, 50-60HZ | 3000K-4000K-5000K SELECTABLE | IP65
APPLICATION
Warehouses | Offices | Factories | Hospitals | Hotels | Gas Stations

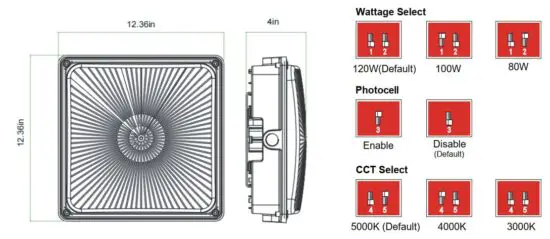

DIMENSION
SPECIFICATIONS
INSTALLATION GUIDE
WARNING
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
- To prevent personal injury or product damage only licensed electricians should instal
- To avoid electric shock or component damage disconnect power before attempting installation or servicing.
- Disconnect product and allow cooling prior to servicing.
- Any alteration or modification of this product is forbidden as it may cause personal injury,death,propertydamage and/or product malfunction.
- To prevent product malfunction and/or electrical shock this product must be properly grounded.
- This luminaire is designed to operate in ambient temperatures ranging from -400C to 500C (-400F to 1220F).
- CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR.

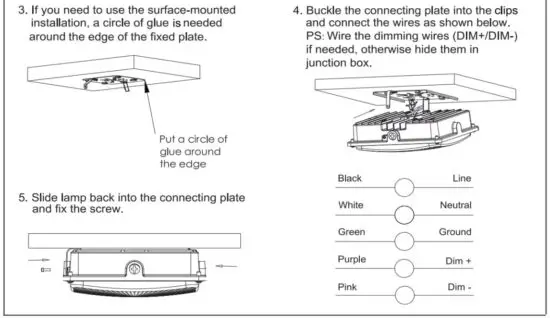

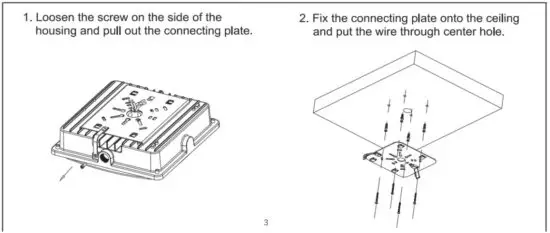

Surface Mount with Jbox

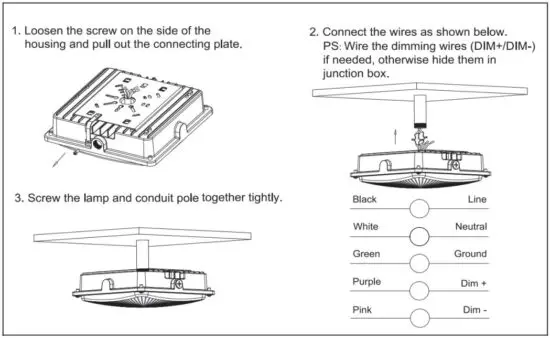

Pendant Installation with 3/4 inch conduit

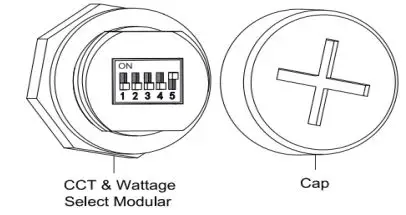

CCT & Power Select Guidance
Warning:
1. Select desired CCT & Power before operation!
2. Cap must be screwed back after CCT & Power selection!
