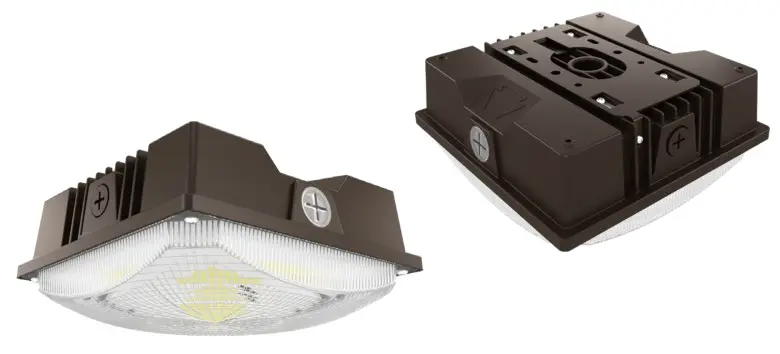

KT-CLED40-S1-850-VDIM
LED CANOPY LIGHT FIXTURE
DESCRIPTION
General Purpose 40W LED Canopy Light | 120-277V Input | Bronze Housing
APPLICATION
Ceiling mounted outdoor illumination needs, such as parking garages, covered walkways, entrance areas, etc.
PRODUCT FEATURES
- Familiar, low profile design ideal for a wide range of new and replacement installations
- Heavy duty die cast aluminum housing with a modern aesthetic and (3) 1/2″ NPT threaded conduit hubs
- Suitable for standard junction box mounting or 3/4″ NPT pendant mounting
- Impact resistant, polycarbonate diffuser with 160° parking garage distribution. Perfect for low mounting applications
- Optional 110° canopy distribution diffuser available. Perfect for high mounting applications
- Powered by Keystone LED 0−10V dimming driver
- Ambient operating temperature: −40°C/−40°F to 50°C/122°F
- UL certified for wet locations, IP65 rated
- Power Factor: > 0.95
- THD: < 20%
- L70 @ >100,000 hrs @ 25°C/77°F ambient fixture temperature
- Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
PERFORMANCE SPECIFICATIONS
| Catalog Number | KT-CLED40-S1-850-VDIM |
| Wattage | 40W |
| CCT | 5000K |
| Lumens | 5600 |
| Efficacy | 125 lm/W |
| Input Voltage | 120–277V |
| Dimming | 0–10V |
| CRI | > 80 |
| Distribution Pattern | 160° |
| Photocell Included | No |
| Nominal Size | 8″ square |
| Housing Color | Bronze |
| Legacy Equivalent | 175W MH |
Note: Color uniformity: CCT (Correlated Color Temperature) range as per guidelines outlined in ANSI C78.377-2017

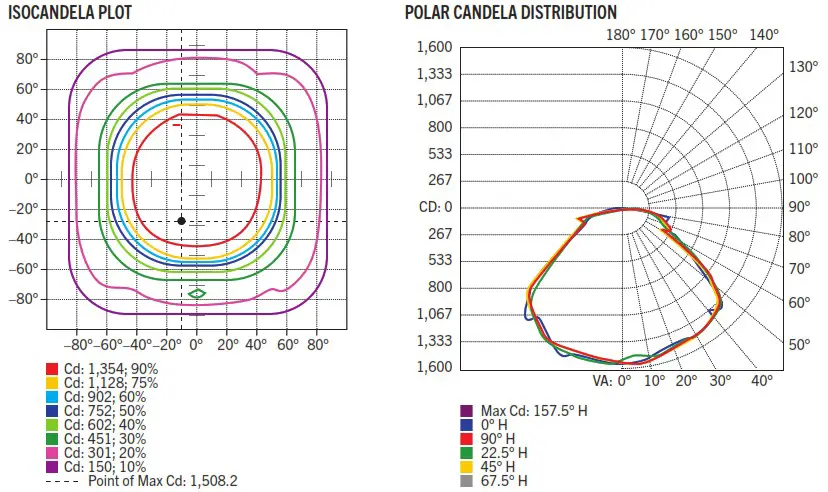

PHOTOMETRIC SPECIFICATIONS
ZONAL LUMEN SUMMARY
| Zone | Lumens | % Luminaire |
| 0 – 30 | 1,242.90 | 23.40% |
| 0 – 40 | 2,140.90 | 40.40% |
| 0 – 60 | 3,979.20 | 75.00% |
| 60 – 90 | 1,127.90 | 21.30% |
| 70 – 100 | 697.1 | 13.10% |
| 90 – 120 | 151.10 | 2.90% |
| 0 – 90 | 5,107.00 | 96.30% |
| 90 – 180 | 195.40 | 3.70% |
| 0 – 180 | 5,302.40 | 100% |

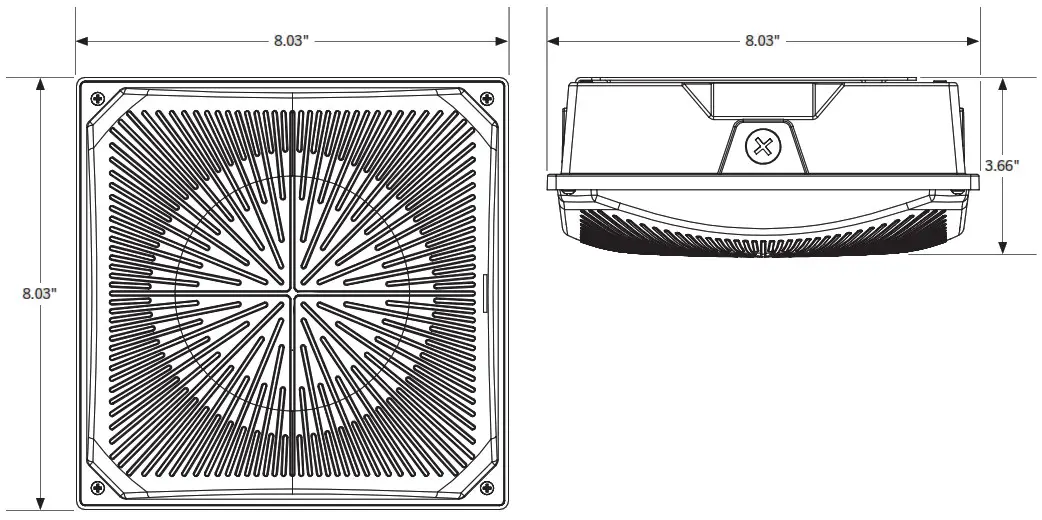

DIMENSIONS
WIRING DIAGRAMS
ACCESSORIES
LENSES
Factory-Installable OR Field-Installable (field-installable purchased separately)
| √ | SUFFIX* | CATALOG NUMBER | DESCRIPTION | UPC | EASY CODE |

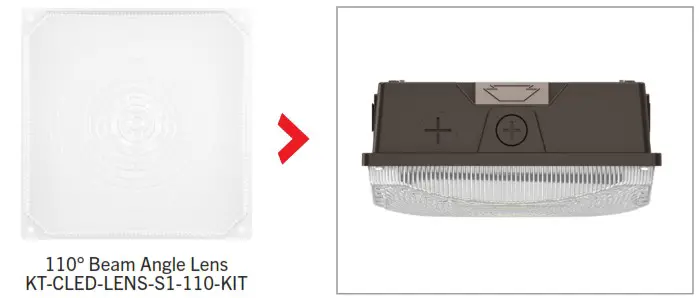

| /L110 | KT-CLED-LENS-S1-110-KIT | 110° beam angle lens for 8″ square canopy | 8.43654E+11 | GNA-34 |
MOUNTS AND BRACKETS
Field-Installable / Field-Use ONLY (purchased separately)
| CATALOG NUMBER | DESCRIPTION | UPC | EASY CODE |
| KT-CLED-BP-15 | 15″ mounting back plate for canopy fixture; Bronze | 8.43654E+11 | FHA-85 |
* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet).
FIXTURE ORDERING INFORMATION
| ORDER CODE | PACK QTY. | UPC | Easy Code |
| KT-CLED40-S1-850-VDIM | 1 | 8.43654E+11 | IVI-04 |
FIXTURE CATALOG NUMBER BREAKDOWN
| 1 Keystone Technologies 2 Canopy Light Fixture 3 LED Technology 4 Wattage 5 Small Size | 6 Series 1 7 80 CRI 8 CCT 9 0–10V Dimming |
ORDERING EXAMPLES
FIXTURE WITH SINGLE FACTORY-INSTALLED ACCESSORY
KT-CLED40-S1-850-VDIM/L110
FIXTURE WITH NO FACTORY-INSTALLED ACCESSORIES
KT-CLED40-S1-850-VDIM
KEYSTONE FIXTURE
CATALOG NUMBER
KT-CLED40-S1-850-VDIM
LENSES
| √ | SUFFIX | CATALOG NUMBER |
| √ | /L110 | KT-CLED-LENS-S1-110-KIT |
* When ordering more then one factory-installed accessory, use multiple suffixes as shown in the ordering examples above.
Note: All accessories can also be ordered separately for field installation using just their regular Catalog Number, UPC, or Easy Code.
Keystone Technologies • Philadelphia PA • Phone (800) 464-2680 • www.keystonetech.com
Specifications subject to change. Last revised on 11.21.22
Keystone Technologies - Light Made Easy – Since 1945
