KT-HBLED80-1.5F-8XX-VDIM-P LED High Bay Fixture
Instruction Manual
KT-HBLED80-1.5F-8XX-VDIM-P LED High Bay Fixture
KT-HBLED80-1.5F-8XX-VDIM-P /G2

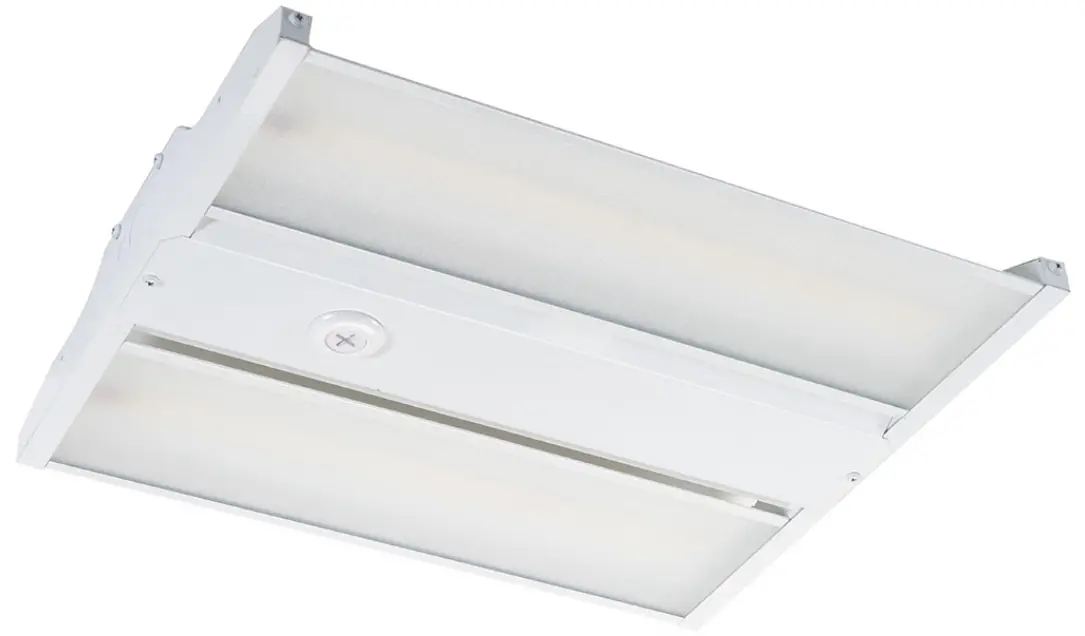

LED HIGH BAY FIXTURE
DESCRIPTION
Complete Compact LED High Bay Fixture
APPLICATION
Used for commercial and industrial high bay lighting applications
PRODUCT FEATURES
- Architectural grade compact design
- Designed to accept easy screw-in installation of optional sensorsvia 1/2″ threaded receptacle in driver cover
- Compatible with Keystone SmartSafe emergency LED drivers (see accessories section for details)
- Powered by Keystone 0–10V dimming LED drivers with 12V Aux
- Frosted lens eliminates glare
- V-hook and chain mounting accessories included
- UL Listed 1598: Suitable for dry and damp locations
- Ambient operating temperature: −20ºC/−4ºF to 50ºC/122ºF
- THD: < 20%
- PF: > 0.90
- LED chip lifetime: L70 >100,000 hrs @ 25Cº/77Fº ambient fixture temp.
PERFORMANCE SPECIFICATIONS
| CATALOG NUMBER | NOMINAL LENGTH | INPUT VOLTAGE | CCT | WATTAGE | LUMEN OUTPUT | EFFICACY | CRI | POWER FACTOR | LIFETIME |
| KT-HBLED80-1.5F-840-VDIM-P /G2 | 1.5 ft. | 120 –277V | 4000K | 80W | 11,700 | 150 lm/W | > 80.0 | >0.90 | 50,000 hrs |
| KT-HBLED80-1.5F-850-VDIM-P /G2 | 1.5 ft. | 120 –277V | 5000K | 80W | 11,778 | 151 lm/W | > 80.0 | >0.90 | 50,000 hrs |

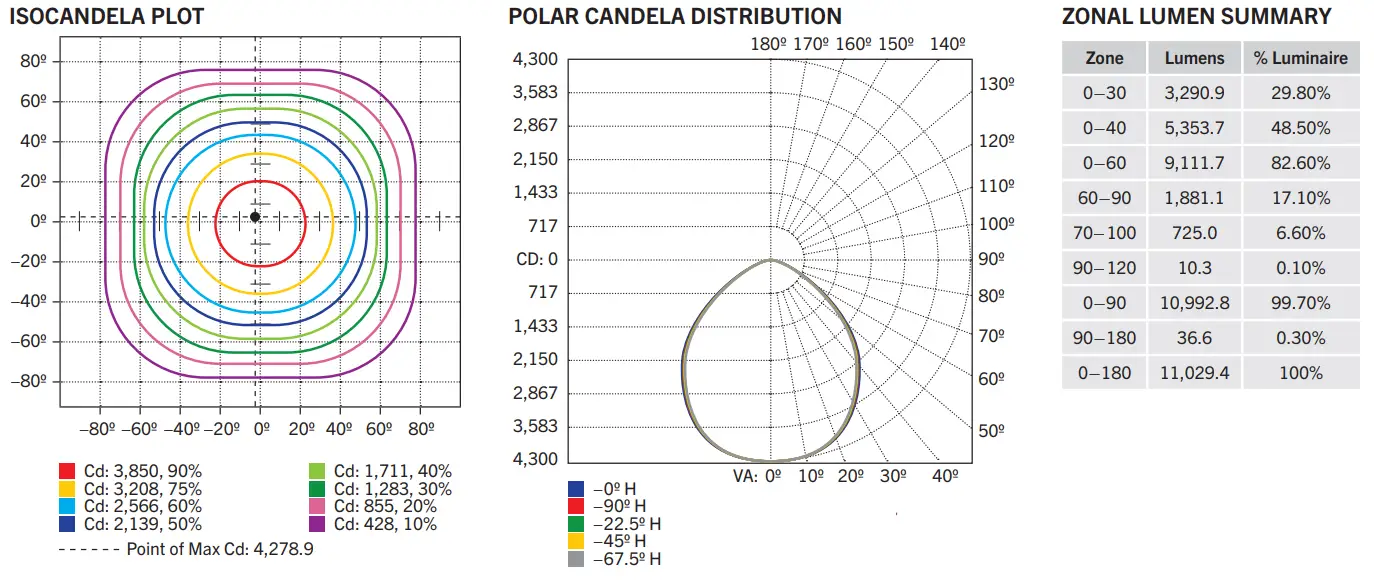

PHOTOMETRIC SPECIFICATIONS

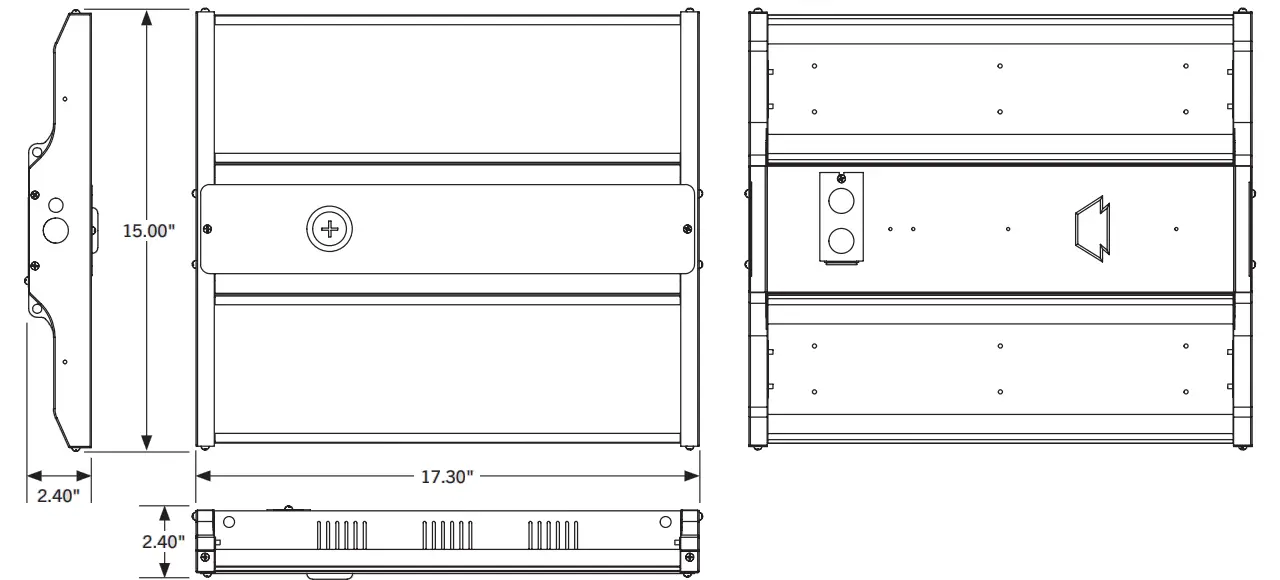

PHYSICAL SPECIFICATIONS
ACCESSORIES

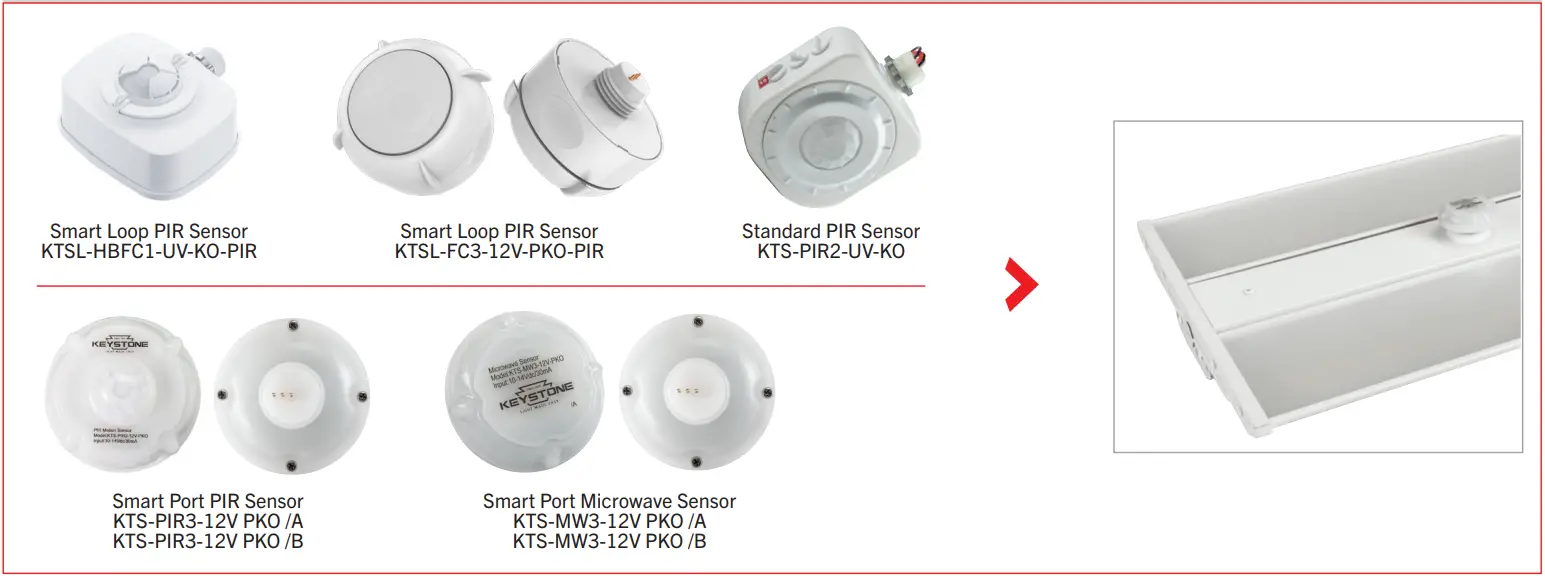

SENSORS
Factory-Installable OR Field-Installable (field-installable purchased separately)
 | SUFFIX* | CATALOG NUMBER | DESCRIPTION | UPC | EASYCODE |
| /HBFC1 | KTSL-HBFC1-UV-KO-PIR | Smart Loop Bluetooth mesh PIR occupancy sensor with built-in fixture controller | 8.44E+11 | AEJ-50 | |
| /FC3 | KTSL-FC3-12V-PKO-PIR | Smart Loop Bluetooth mesh screw-in PIR occupancy sensor with built-in fixture controller. No wiring required. | 8.44E+11 | OCW-60 | |
| /PIR2 | KTS-PIR2-UV-KO | PIR sensor for high bay fixtures; Preset for 5 min hold time, 10 min standby time at 10% dim, daylight disabled | 8.44E+11 | IOF-04 | |
| /PIR-A | KTS-PIR3-12V-PKO /A | Smart Port PIR sensor for high bay fixtures; Preset for 1 min hold time, 3 min standby time at 30% dim, daylight disabled | 8.44E+11 | RXQ-30 | |
| /PIR-B | KTS-PIR3-12V-PKO /B | Smart Port PIR sensor for high bay fixtures; Preset for 5 min hold time, 10 min standby time at 10% dim, daylight disabled | 8.44E+11 | LEF-34 | |
| /MW3-A | KTS-MW3-12V PKO /A | Smart Port Microwave Occupancy sensor for high bay fixtures; Preset for 1 min hold time, 3 min standby time at 30% dim, daylight disabled | 8.44E+11 | XYR-25 | |
| /MW3-B | KTS-MW3-12V PKO /B | Smart Port Microwave Occupancy sensor for high bay fixtures; Preset for 5 min hold time, 10 min standby time at 10% dim, daylight disabled | 8.44E+11 | SPF-37 |
* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet).
Field-Installable / Field-Use ONLY (purchased separately)
| CATALOG NUMBER | DESCRIPTION | UPC | EASY CODE |

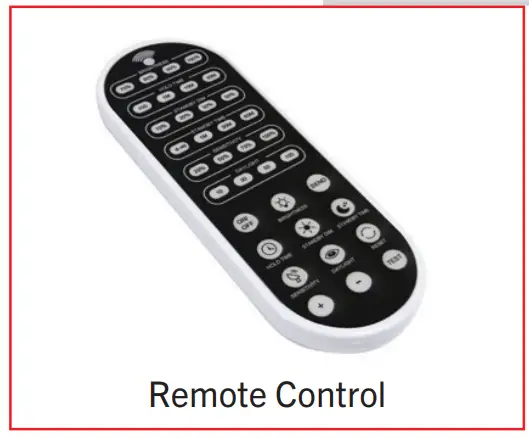

| KTS-MW3-REMOTECONTROL | Remote control for KTS-MW3-12V-PKO /A or /B and KTS-PIR3-12V-PKO /A or /B sensors. Used to set and adjust all sensor settings, including high-end trim brightness, sensitivity, hold time, daylight threshold, stand-by time, and stand-by dimming level. | 8.44E+11 | XSR-61 |
CORD SETS
Factory-Installable OR Field-Installable (field-installable purchased separately)
| SUFFIX* | CATALOG NUMBER | DESCRIPTION | UPC | EASY CODE |
| /515P6 | KT-CS-515P-6-18/3 | Cord set for high bay; 125V NEMA 5-15P; straight blade plug; 6′ SJTOW cable; 18/3 wire | 8.43654E+11 | UKH-26 | |
| /L715P10 | KT-CS-L715P-10-16/3 | Cord set for high bays; 277V NEMA L7-15P; twist lock plug; 10′ SJTOW cable; 16/3 wire | 8.43654E+11 | SFV-88 | |
| /L615P10 | KT-CS-L615P-10-16/3 | Cord set for high bays; 250V NEMA L6-15P; twist lock plug; 10′ SJTOW cable; 16/3 wire | 8.43654E+11 | ZQS-05 | |
| /L515P10 | KT-CS-L515P-10-16/3 | Cord set for high bays; 250V NEMA L5-15P; twist lock plug; 10′ SJTOW cable; 16/3 wire | 8.43654E+11 | GVH-22 | |
| /L715P6 | KT-CS-L715P-6-16/3 | Cord set for high bays; 277V NEMA L7-15P; twist lock plug; 6′ SJTOW cable; 16/3 wire | 8.43654E+11 | DVU-44 | |
| /L615P6 | KT-CS-L615P-6-16/3 | Cord set for high bays; 250V NEMA L6-15P; twist lock plug; 6′ SJTOW cable; 16/3 wire | 8.43654E+11 | LCW-66 | |
| /L515P6 | KT-CS-L515P-6-16/3 | Cord set for high bays; 250V NEMA L5-15P; twist lock plug; 6′ SJTOW cable; 16/3 wire | 8.43654E+11 | POC-82 | |
| /MC63 | KT-MC-NP-6-18/3 | MC cable whip for high bays; no plug; inners 1/2″ strip on both ends; 6′ metal-clad cable; 18/3 wire | 8.43654E+11 | EYP-82 | |
| /MC65 | KT-MC-NP-6-18/5 | MC cable whip for high bays; no plug; inners 1/2″ strip on both ends; 6′ metal-clad cable; 18/5 wire (dimming wires included) | 8.43654E+11 | CBU-56 | |
| /NP10 | KT-CS-NP-10-16/3 | Cord for high bays; no plug; inners 1/2” strip on both ends; 10′ SJTOW cable; 16/3 wire | 8.43654E+11 | YOH-90 | |
| /NP-6 | KT-CS-NP-6-16/3 | Cord for high bays; no plug; inners 1/2” strip on both ends; 6′ SJTOW cable; 16/3 wire | 8.43654E+11 | HUB-73 | |
| /NP15 | KT-CS-NP-15-16/3 | Cord for high bays; no plug; inners 1/2” strip on both ends; 15′ SJTOW cable; 16/3 wire | 8.43654E+11 | EYD-18 |
* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet).
Note: For cord sets not listed here, please contact your Keystone sales rep.

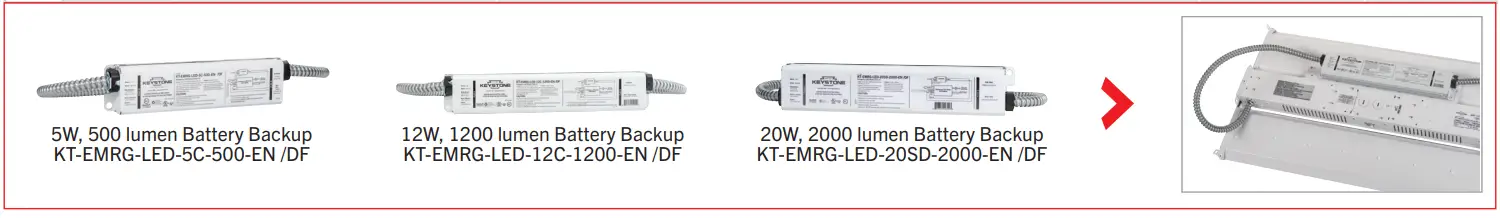

EMERGENCY BACKUP
Factory-Installable OR Field-Installable (field-installable purchased separately)
| SUFFIX* | CATALOG NUMBER | DESCRIPTION | UPC | EASY CODE | |
| /EM5† | KT-EMRG-LED-5C-500-EN /DF | 5W, 500 lumen Smart Safe emergency backup with dual flex cables | 8.43654E+11 | RAR-74 | |
| /EM12† | KT-EMRG-LED-12C-1200-EN /DF | 12W, 1200 lumen Smart Safe emergency backup with dual flex cables | 8.90949E+11 | YCV-23 | |
| /EM20† | KT-EMRG-LED-20SD-2000EN/DF | 20W, 2000 lumen Smart Safe emergency backup with dual flex cables; Self-diagnostic | 8.43654E+11 | BZU-19 |
* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet). †
Factory installation of emergency backup units will automatically include any relevant mounting bracket.
Field-Installable / Field-Use ONLY (purchased separately)
| CATALOG NUMBER | DESCRIPTION | UPC | EASY CODE |

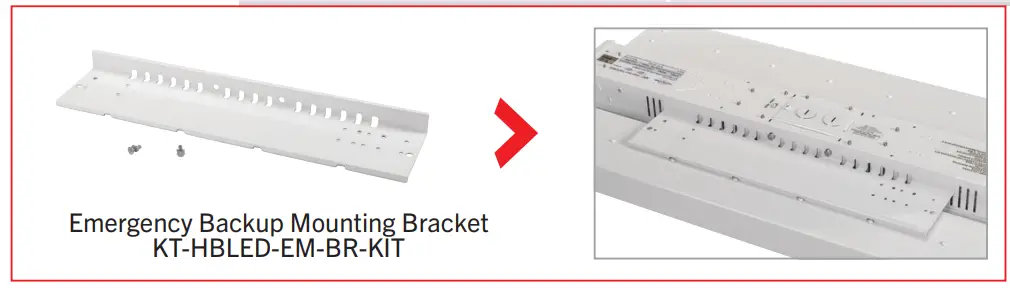

| KT-HBLED-EM-BR-KIT | Emergency LED backup mounting bracket kit for LED high bay fixtures | 8.43654E+11 | OGY-07 |

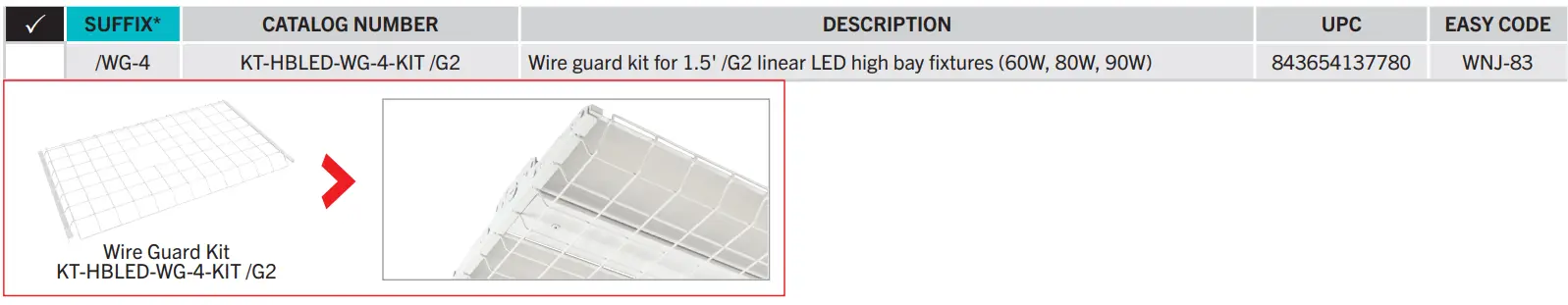

MOUNTS AND BRACKETS
Factory-Installable OR Field-Installable (field-installable purchased separately)
* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet).
Field-Installable / Field-Use ONLY (purchased separately)
| CATALOG NUMBER | DESCRIPTION | UPC | EASY CODE |

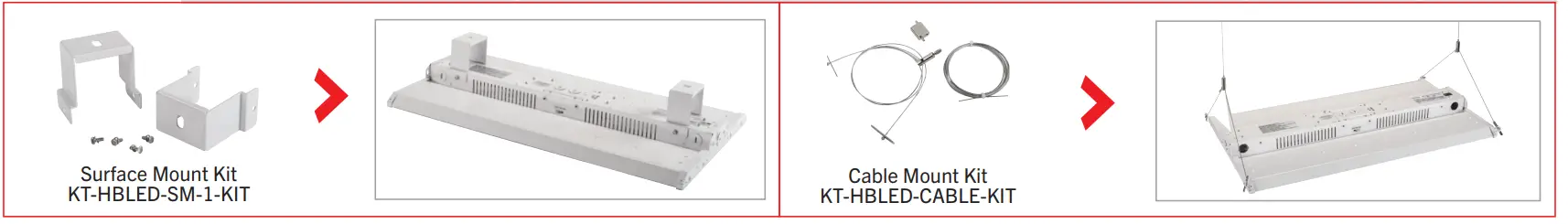

| KT-HBLED-SM-1-KIT | Surface mount kit for LED high bay fixtures | 8.90919E+11 | LDN-61 |
| KT-HBLED-CABLE-KIT | Aircraft cable hanging kit for LED high bay fixtures | 8.90949E+11 | XPJ-88 |

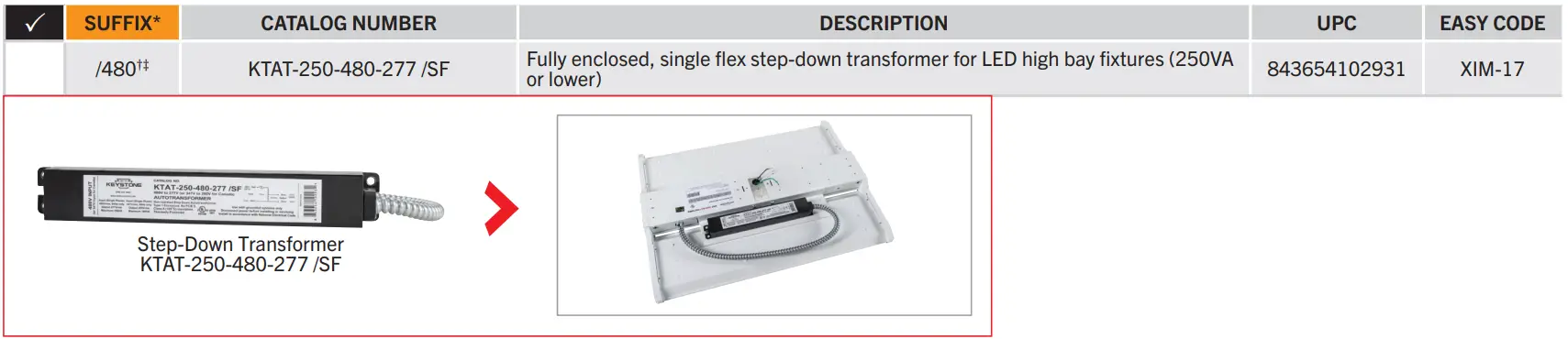

STEP-DOWN TRANSFORMERS
Factory-Installable OR Field-Installable (field-installable purchased separately)
* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet).†
Factory installation of step-down transformer units will automatically include any relevant mounting bracket.‡
Step-down transformers cannot be ordered in conjunction with standard SJTOW cord set options (contact Keystone sales rep for available custom options if needed).
FIXTURE ORDERING INFORMATION
| ORDER CODE | PACK QTY. | UPC | EASY CODE |
| KT-HBLED80-1.5F-840-VDIM-P /G2 | 1 | 8.43654E+11 | DZL-20 |
| KT-HBLED80-1.5F-850-VDIM-P /G2 | 1 | 8.43654E+11 | ZYZ-55 |
FIXTURE CATALOG NUMBER BREAKDOWN
KT-HBLED80-1.5F-8XX-VDIM-P /G2
- Keystone Technologies
- LED High Bay Fixture
- Wattage
- Nominal Length
- Frosted Lens
- 800 Series
- Color Temperature
- 0–10V Dimming
- Premium Series
- 2nd Generation

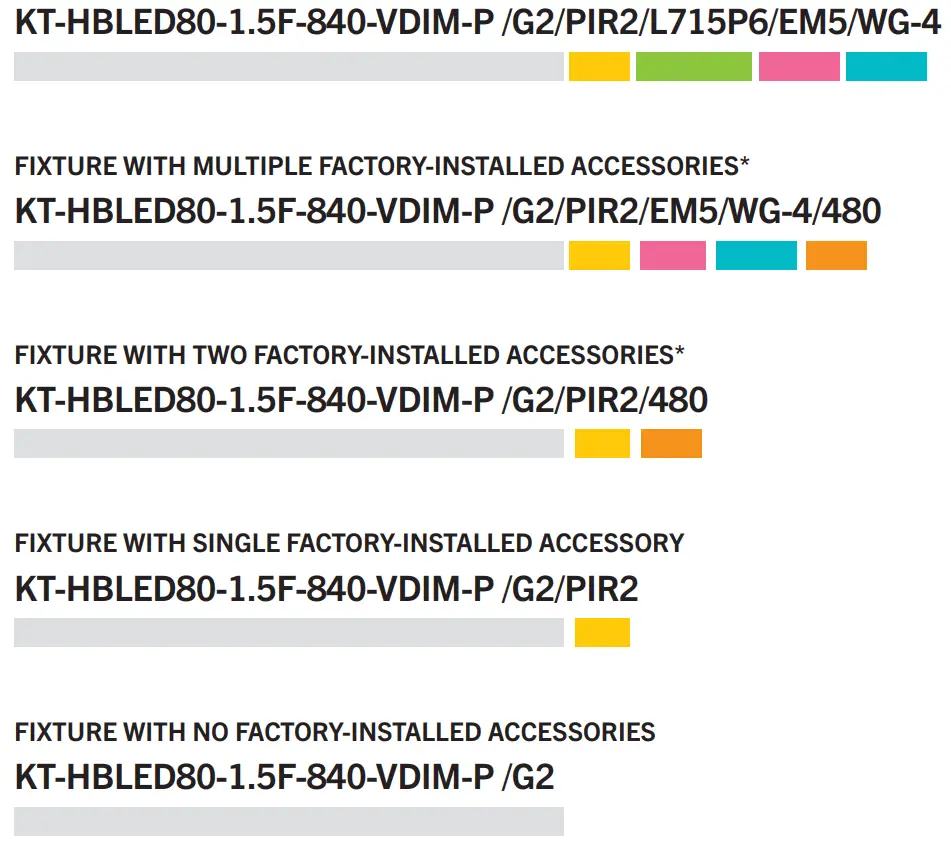

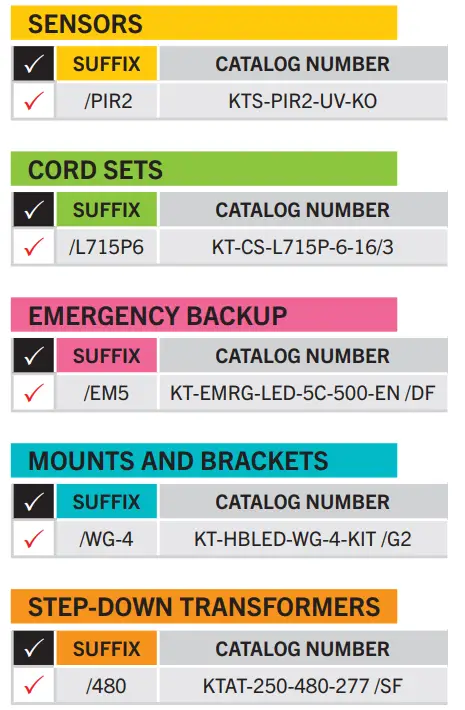

ORDERING EXAMPLES
FIXTURE WITH MULTIPLE FACTORY-INSTALLED ACCESSORIES*
KEYSTONE FIXTURE
CATALOG NUMBER
KT-HBLED80-1.5F-840-VDIM-P /G2
Note: Step-down transformers cannot be ordered in conjunction with standard SJTOW cord set options (contact Keystone sales rep for available custom options if needed).
* When ordering more then one factory-installed accessory, use multiple suffixes as shown in the ordering examples above.
Note: All accessories can also be ordered separately for field installation using just their regular Catalog Number, UPC, or Easy Code.
Keystone Technologies
Philadelphia, PA
Phone (800) 464-2680
www.keystonetech.com
Specifications subject to change. Last revised on 08.30.22
