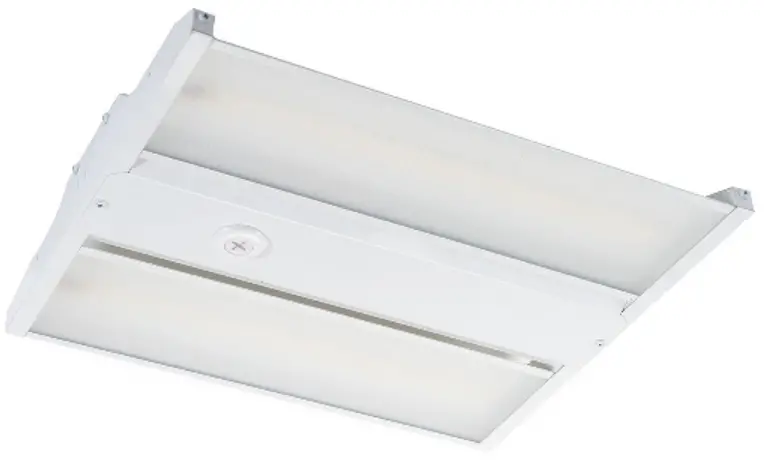

HB-LED-1.5-90-8XX-P /G2
LED HIGH BAY FIXTURE
Compact 90W LED High Bay Fixture; 120–277V Input
PRODUCT FEATURES
- Architectural grade compact design
- Includes screw-in receptacle for easy sensor and control installation
- Compatible with emergency LED drivers; mounting kit required (sold separately)
- Powered by 0-10V dim-to-off driver with 12VDC, 200mA AUX output
- Frosted lens eliminates glare
- V-hook and chain mounting accessories included
- UL Certified for Dry and Damp Locations
- Ambient operating temperature: −20ºC/−4ºF to 50ºC/122ºF
- THD: < 20%
- PF: > 0.90
- LED chip lifetime: L70 >100,000 hrs @ 25Cº/77Fº ambient fixture temp.
PERFORMANCE SPECIFICATIONS
| CATALOG NUMBER | NOMINAL LENGTH | INPUT VOLTAGE | CCT W | WATTAGE | LUMEN OUTPUT | EFFICACY | CRI | POWER FACTOR | LIFETIME |
| HB-LED-1.5-90-840-P /G2 | 1.5 ft. | 120 –277V | 4000K | 90W | 13,500 | 150 lm/W | > 80.0 | >0.90 | 50,000 hrs |
| HB-LED-1.5-90-850-P /G2 | 1.5 ft. | 120 –277V | 5000K | 90W | 13,590 | 151 lm/W | > 80.0 | >0.90 | 50,000 hrs |

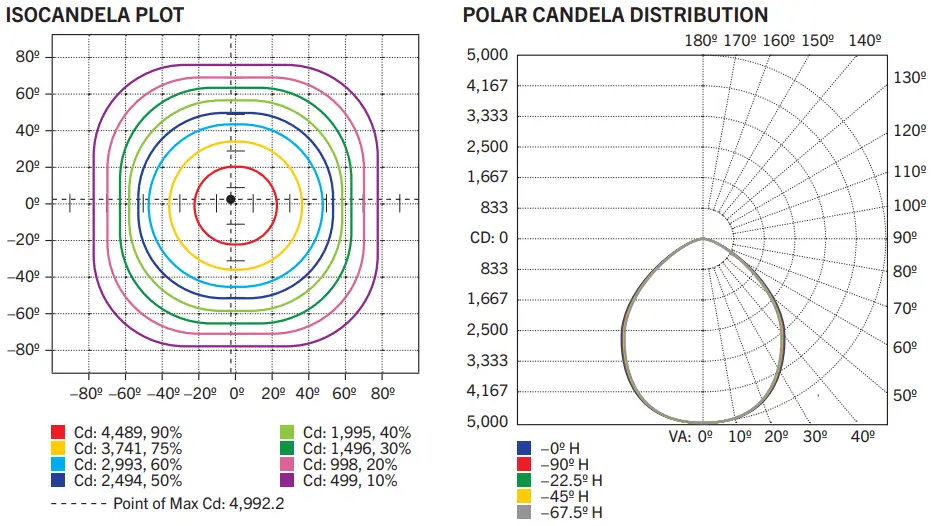

PHOTOMETRIC SPECIFICATIONS
ZONAL LUMEN SUMMARY
| Zone | Lumens | % Luminaire |
| 0 – 30 | 3,852.10 | 29.70% |
| 0 – 40 | 6,275.40 | 48.40% |
| 0 – 60 | 10,717.60 | 82.60% |
| 60 – 90 | 2,270.60 | 17.40% |
| 0 – 90 | 12,988.20 | 100% |

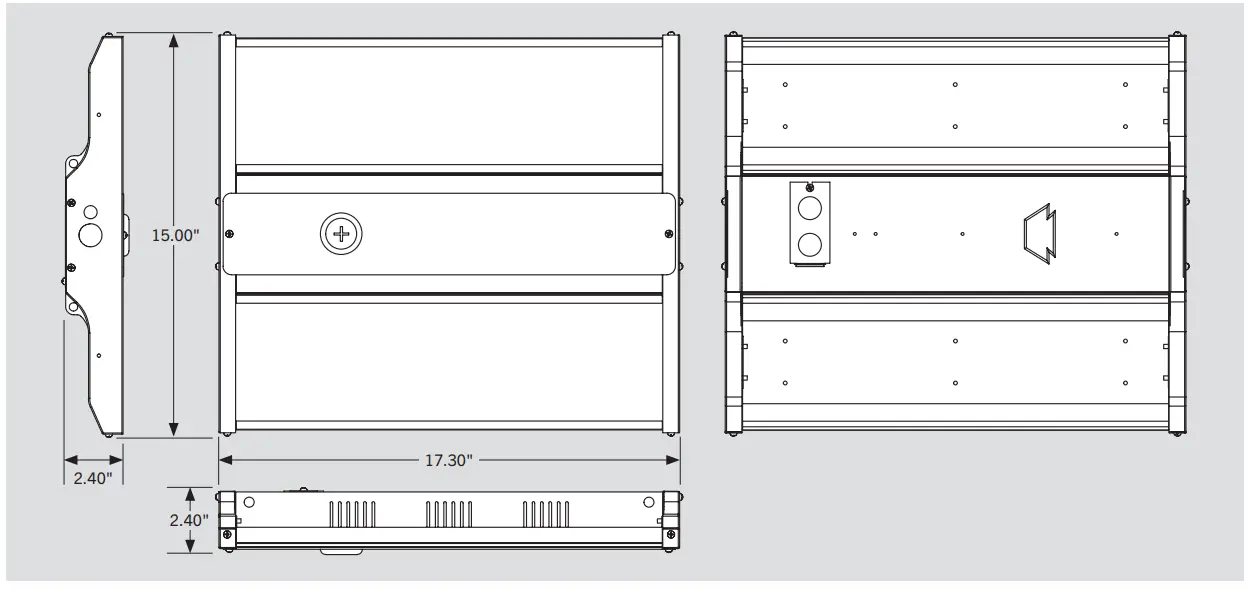

PHYSICAL SPECIFICATIONS
ORDERING INFORMATION
| ORDER CODE | PACK QTY | UPC | EASY CODE |
| HB-LED-1.5-90-840-P /G2 | 1 | 8.43654E+11 | UNT-10 |
| HB-LED-1.5-90-850-P /G2 | 1 | 8.43654E+11 | AVJ-30 |
