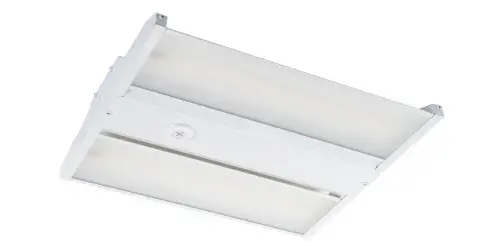

KEYSTONE HB-LED-1.5-60-8XX-P/G2 Compact 60W LED High Bay Fixture Owner’s Manual
PRODUCT FEATURES
- Architectural grade compact design
- Includes screw-in receptacle for easy sensor and control installation
- Compatible with emergency LED drivers; mounting kit required (sold separately)
- Powered by 0-10V dim-to-off driver with 12VDC, 200mA AUX output
- Frosted lens eliminates glare
- V-hook and chain mounting accessories included
- UL Certified for Dry and Damp Locations
- Ambient operating temperature: −20ºC/−68ºF to 50ºC/122ºF
- THD: < 20%
- PF: > 0.90
- LED chip lifetime: L70 >100,000 hrs @ 25Cº/77Fº ambient fixture temp.
| CATALOG NUMBER | NOMINAL LENGTH | INPUT VOLTAGE | CCT | WATTAGE | LUMEN OUTPUT | EFFICACY | CRI | POWER FACTOR | LIFETIME |
| HB-LED-1.5-60-840-P /G2 | 1.5 ft. | 120–277V | 4000K | 60W | 9,000 | 150 lm/W | > 80.0 | >0.90 | 50,000 hrs |
| HB-LED-1.5-60-850-P /G2 | 1.5 ft. | 120–277V | 5000K | 60W | 9,060 | 151 lm/W | > 80.0 | >0.90 | 50,000 hrs |

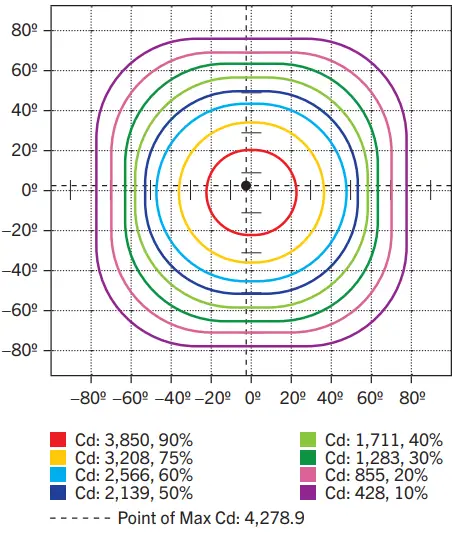

PHOTOMETRIC SPECIFICATIONS ISOCANDELA PLOT

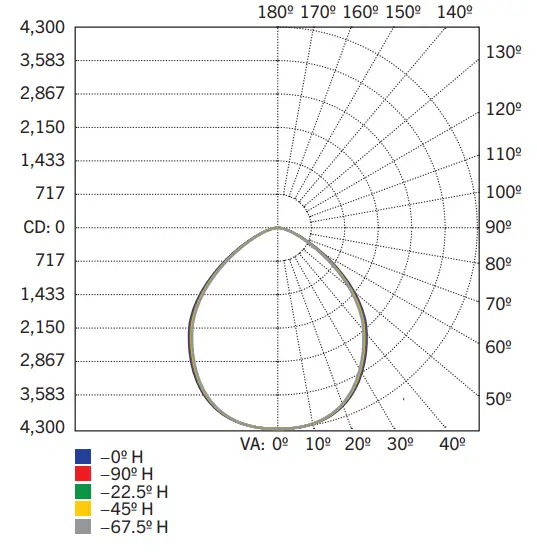

POLAR CANDELA DISTRIBUTION
ZONAL LUMEN SUMMARY
| Zone | Lumens | % Luminaire |
| 0–30 | 3,290.9 | 29.80% |
| 0–40 | 5,353.7 | 48.50% |
| 0–60 | 9,111.7 | 82.60% |
| 60–90 | 1,881.1 | 17.10% |
| 0–90 | 11,029.4 | 100% |

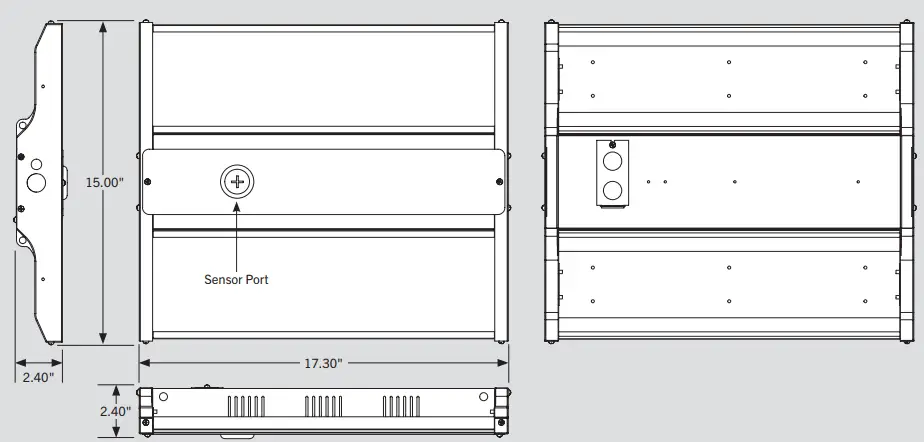

PHYSICAL SPECIFICATIONS
ORDERING INFORMATION
| ORDER CODE | PACK QTY. | UPC | EASY CODE |
| HB-LED-1.5-60-840-P /G2 | 1 | 843654137919 | IZS-77 |
| HB-LED-1.5-60-850-P /G2 | 1 | 843654137926 | JBU-65 |
