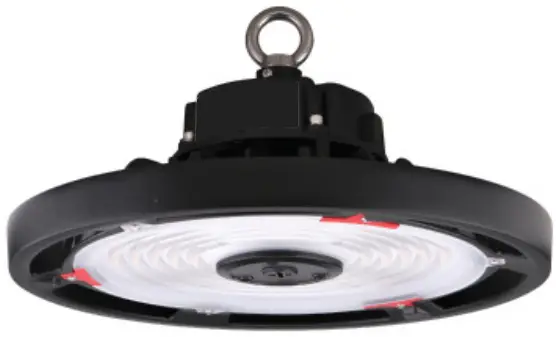

KEYSTONE RH-LED-12-150-8XX-P/G2 Round LED High Bay Fixture
PRODUCT FEATURES
- Designed to accept easy screw-in installation of optional sensors
- Powered by 0–10V dimming LED driver
- Ring-bolt mounting accessory included
- 6′ cord for input and dimming wires
- Powder-coated aluminum housing; Polycarbonate lens
- Ribbed lens to reduce glare
- Low optical flicker
- Built-in 6kV surge protection
- LED lifetime: L70 >100,000 hours @ 25°C fixture ambient
- Ambient operating temperature: −40°C/−40°F to 50°C/122°F
- IP65 rated, wet location
PERFORMANCE SPECIFICATIONS
Catalog Number | Input Voltage | Wattage | Color Temperature | Lumen Output | Efficacy | Rated Life | CRI | Power Factor |
| RH-LED-12-150-840-P /G2 | 120–277V | 150W | 4000K | 23,400 | 156 lm/W | 50,000 hrs | > 80 | > 0.9 |
| RH-LED-12-150-850-P /G2 | 5000K | 23,600 | 157 lm/W |
PHOTOMETRIC SPECIFICATIONS

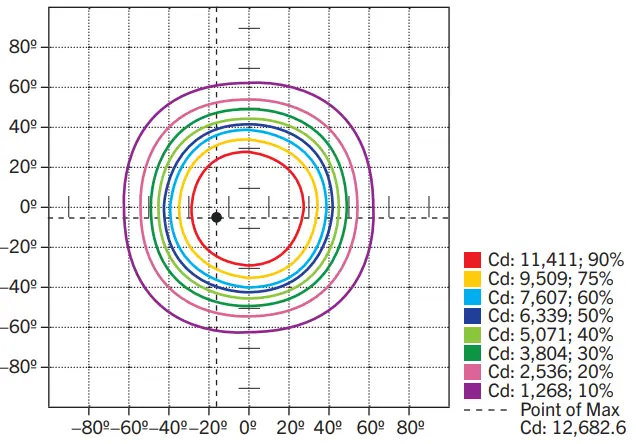

ISOCANDELA PLOT

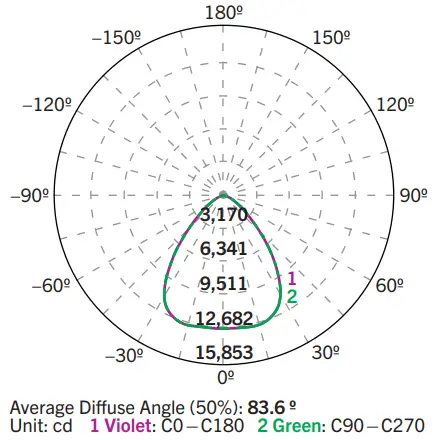

POLAR CANDELA DISTRIBUTION
ZONAL LUMEN SUMMARY
Zone | Lumens | % Luminaire |
| 0–30 | 10,271.9 | 43.4% |
0–40 | 16,033.4 | 67.8% |
| 0–60 | 22,131.7 | 93.6% |
60–90 | 1,480.7 | 6.3% |
| 70–100 | 469.1 | 2.0% |
90–120 | 0 | 0% |
| 0–90 | 23,612.4 | 99.9% |
90–180 | 30.1 | 0.1% |
| 0–180 | 23,642.5 | 100% |

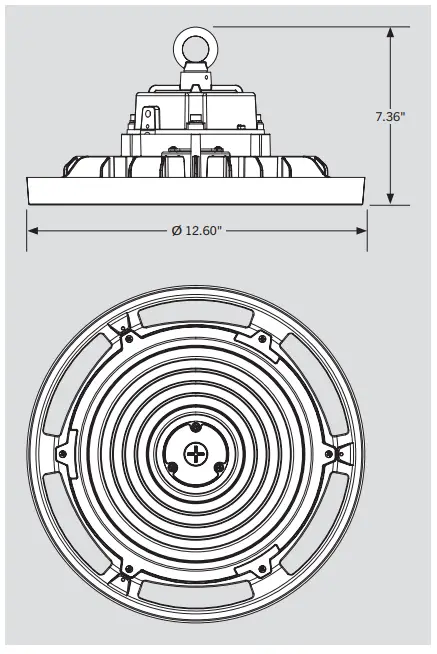

PHYSICAL SPECIFICATIONS
