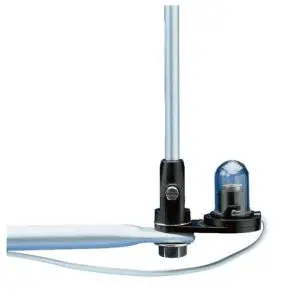

Davis WindTrak™ LED Light User Manual
Illuminates WindTrak™ wind indicators for perfect night sailing
RUGGED LED BULB
Low current draw of less than 25 milliamps at 12 volts.
EASY TO MOUNT
Use with WindTrak 10, WindTrak 15, or J-Base mounting sockets.
TRUE WHITE LIGHT
Non-dazzling LED provides just enough lumens to light up WindTrak tabs and reflectors.
WATERPROOF
Lens and body fit together tightly. Metal parts are non-corrosive silver.

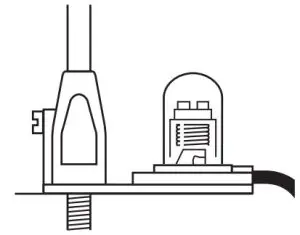

WindTrak Light with WindTrak 15 (#3150). Mounts directly on the threaded part of the mounting sockets.

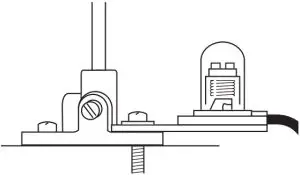

WindTrak Light with WindTrak 10 (#3120) or J-Base mounting sockets (#3125, #3155). Use 1/4” flat washer (not included) for mounting to J-Base.
This state-of-the-art LED bulb is polarized. Be sure to follow the correct polarity.
Replacement Bulb
Buy a white surface mount LED, Edison 10 mm (0.4″) diameter base. 30 watt, 12 volt, 0.1 amp.
Davis Instruments
3465 Diablo Avenue, Hayward, CA 94545 U.S.A.
www.davisinstruments.com
