EL555W 5 Inch Sloped Reflector Trim
User Manual
EL555W 5 Inch Sloped Reflector Trim
Project name:…………….
Fixture type:…………………..
Date:………………………

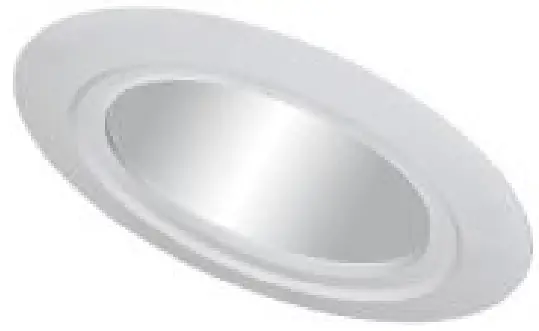

5″ Sloped Reflector Trim
ELCO Slant allows for installation in sloped ceilings ranging from 2/12 (10°) to 12/12 (45°). Can be used in insulated ceilings. Fits in 2″ x 8″ joist construction.
Features
- Sloped Reflector.
- Lamp: 75W MAX. PAR30 or LED.
- O.D.: 7 1/8″ x 7 1/2″.
Technical Details
Construction: Meticulously manufactured trim with a powder-coated or anodized finish.
Installation: Clips securely mount trim into the housing and keeps ring flush with the ceiling.
Compatible Housing: Compatible with EL518ICA & EL518RICA.
Lamp: Compatible with Medium base (E26) PAR type.
Options
 |  |  |
| All White | All Black | Clear w/White Ring |
Product Number
| Item | Finish |
| EL555W | All White |
Product Number Builder
Example: EL555B
| 5″ Sloped Reflector Trim | Finish |
| EL555 | B All Black |
| C Clear w/White Ring | |
| W All White |
Product Custom Image
Compatible Products
For use with 5″ Sloped Trims
5″ E26 Base Sloped Ceiling IC Housings
 |  |

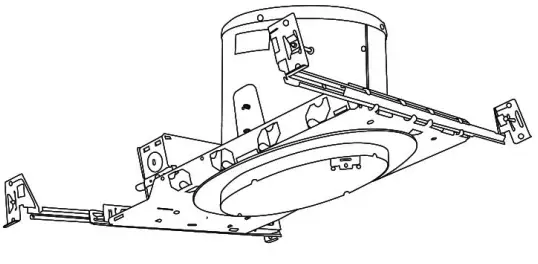

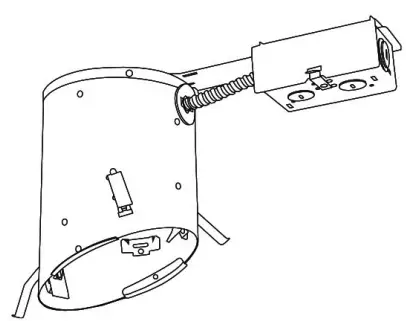

| 5″ E26 Medium Base Sloped Housing New Construction EL518ICA | 5″ E26 Medium Base Sloped Housing Remodel |
| CAT NO. | SPECIFICATIONS |
| EL518RICA | 75W Max. |
| CAT NO. | SPECIFICATIONS |
| EL518RICA | 75W Max. |
2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600
Fax (323) 231-3200
elcolighting.com
© ELCO Lighting 2022. All rights reserved”
Rev. 25 Aug 2021
ELCO Lighting reserves the right to make specification and design changes without notice.
