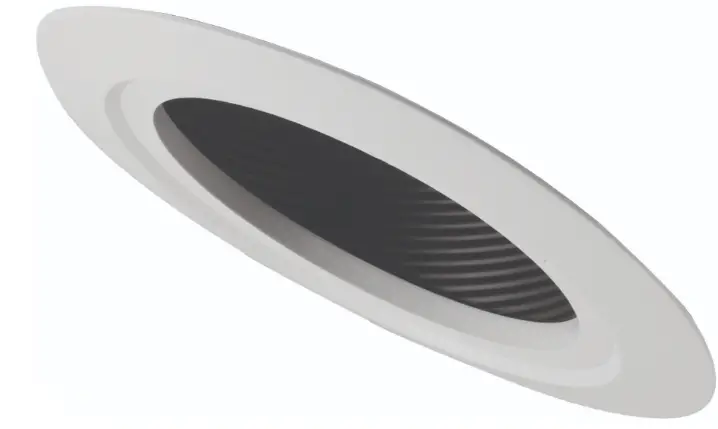

ELCO Lighting EL550W 5 Inch Sloped Baffle Trim
5 Sloped Baffle Trim
ELCO Slant allows for installation in sloped ceilings ranging from 2/12 (10°) to 12/12 (45°). Can be used in insulated ceilings. Fits in 2″ x 8″ joist construction.
- Project name:——-
- Fixture type:——–
- Date:—————–
Features
- Sloped Baffle.
- Lamp: 75W MAX. PAR30 or LED.
- O.D.: 7 1/8″ x 7 1/2″.
Technical Details
Construction:
- Meticulously manufactured trim with a powder coated or anodized finish.
- Baffle helps reduce glare.
Installation: Clips securely mount trim into the housing and keeps ring flush with ceiling.
Compatible Housing: Compatible with EL518ICA & EL518RICA.
Lamp: Compatible with Medium base (E26) PAR type.
Options
Product Number
- Item

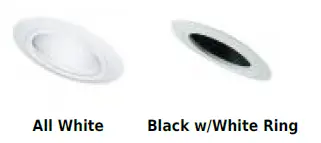

- Finish
- EL550W
- All White

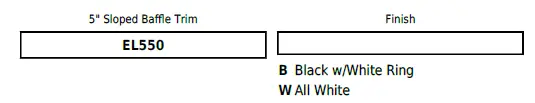

Product Number Builder
- Example: EL550B
Compatible Products
- For use with 5″ Sloped Trims

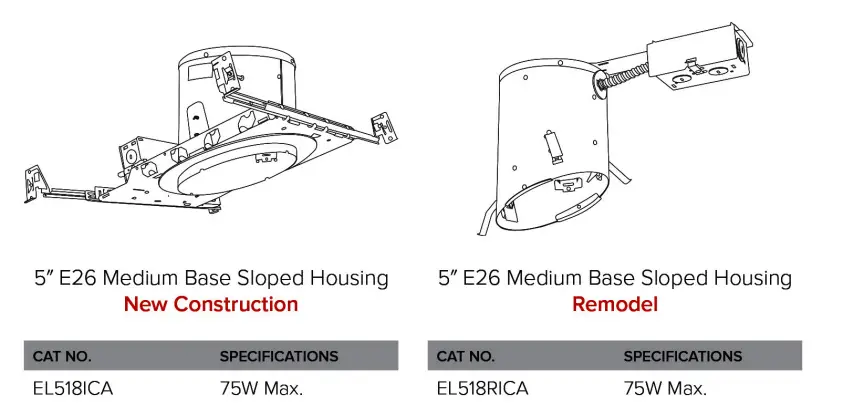

5″ E26 Base Sloped Ceiling IC Housings
2042 E. Vernon Ave., Vernon, CA 90058
- Tel: (323) 231-2600
- Fax: (323) 231-3200
- web: elcolighting.com
© ELCO Lighting 2022. All rights reserved
- Rev. 25 Aug 2021
- ELCO Lighting reserves the right to make specification and design changes without notice
