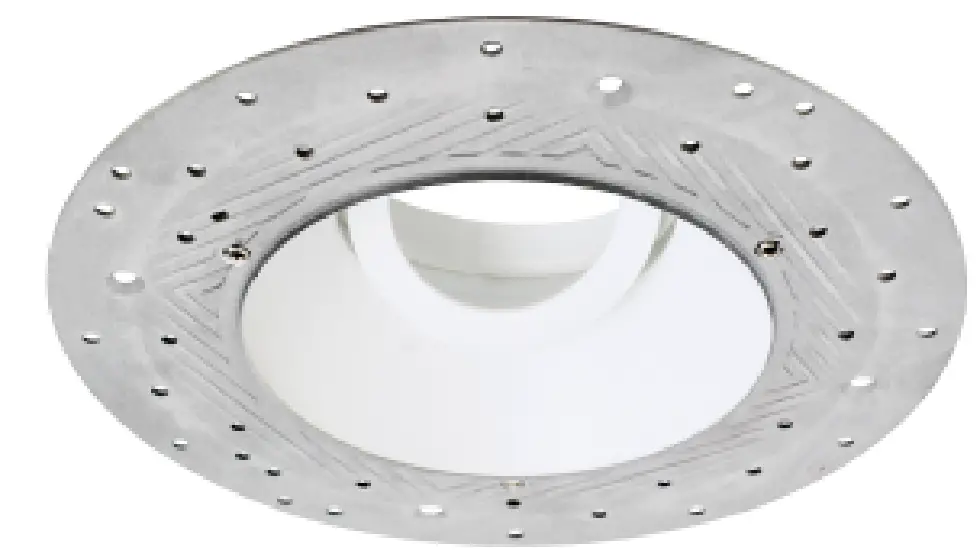

ELCO Lighting ELK415H 4 Inch Pex Round Trimless Adjustable Smooth Reflector Trim

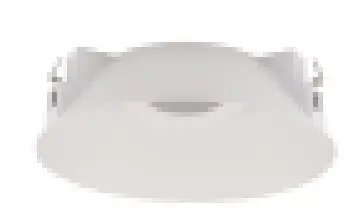

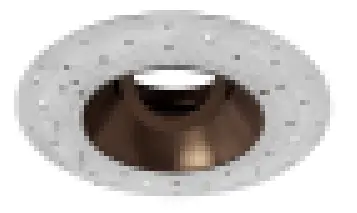

Pex™ 4″ Round Trimless Adjustable Smooth Reflector Trim
Pex™ Precision die-cast trims with Twist-&-Lock system for easy tool-free installation
Features
- 4″ Trimless Smooth Reflector.
- ELK430 includes spackle frame
- ELK415 requires spackle frame EL4SFR
- 35° Adjustability.
- Convenient twist-lock design for easy installation.
- Lamp: Koto™ LED Module
Technical Details
Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
Lamp: Koto™ LED Module.

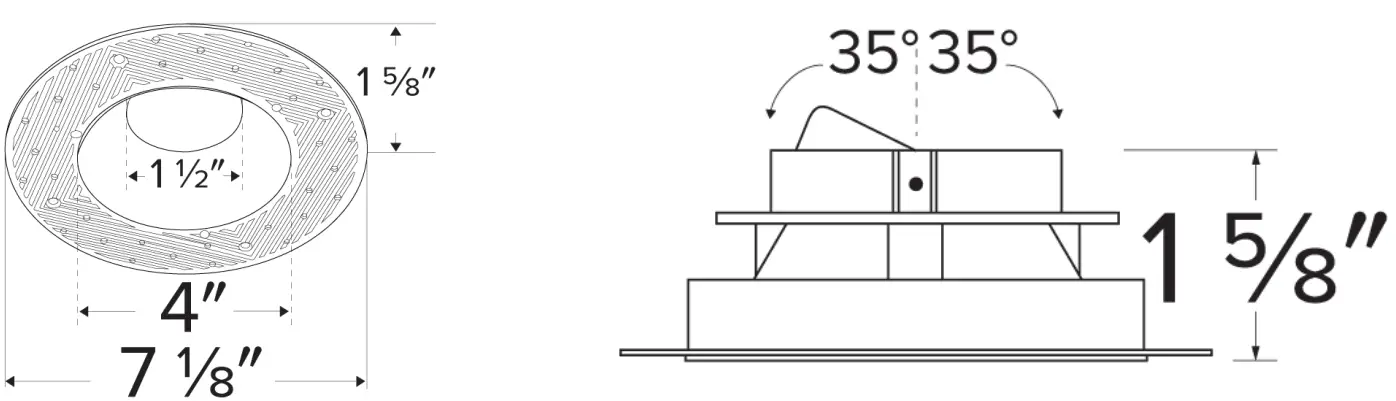

Dimensions
Options

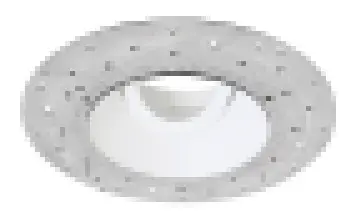

- White

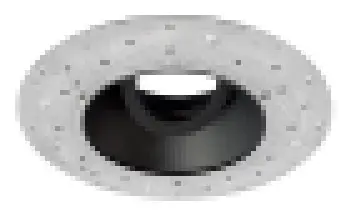

- Black
- Bronze
- ELK415 – Wht Reflector

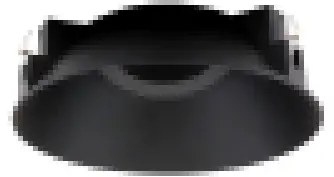

- ELK415 – Black Reflector

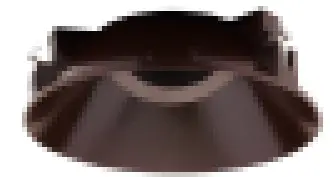

- ELK415 – Bronze

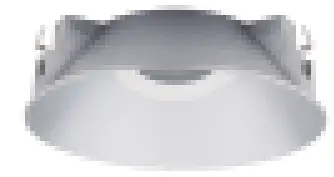

- ELK415 – Haze Reflector
Product Number
| Item | Description | Finish |
| ELK415H | Reflector Only | Haze |
Product Number Builder
Example: ELK430W
Pex™ 4″ Trimless Smooth Reflector Finish
ELK430
W White
B Black
BZ Bronze
H Haze

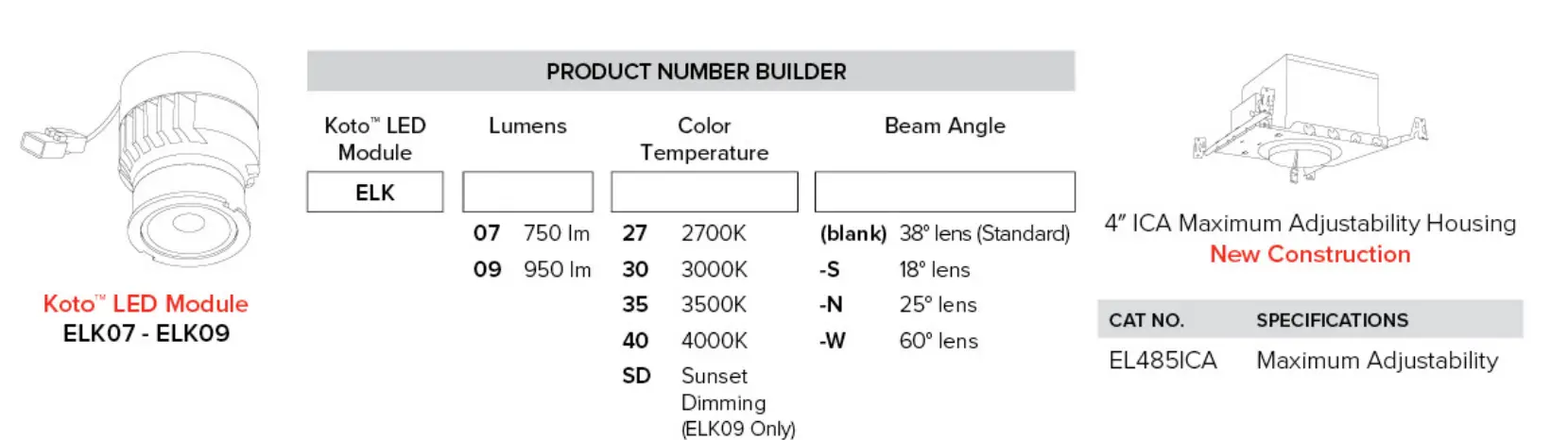

Koto™ LED Module & 4″ Dedicated LED ICA Housing
Koto™ Architectural LED Light Engine & 4″ Architectural ICA Housings
2042 E. Vernon Ave., Vernon, CA 90058 • Tel (323) 231-2600 Fax (323) 231-3200 • elcolighting.com
© ELCO Lighting 2022. All rights reserved • Rev. 17 Dec 2021 • ELCO Lighting reserves the right to make specification and design changes without notice.
