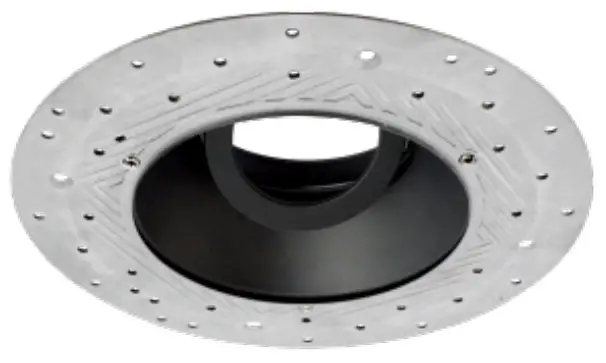

Pex™ 4″ Round Trimless
Adjustable Smooth Reflector
Trim
Instructions
Pex™ Precision die-cast trims with Twist-&-Lock system for easy tool-free installation
Project name: _________
Fixture type:__________
Date:_______________
Features
- 4″ Trimless Baffle.
- Spackle frame included.
- 35° Adjustability.
- Convenient twist-lock design for easy installation.
- Lamp: Koto™ LED Module.
Technical Details
Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
Lamp: Koto™ LED Module.
Options
Product Number
| Item | Finish |
| ELK434B | Black |
Product Number Builder Example: ELK434W
Pex™ 4″ Trimless Smooth Reflector ELK434

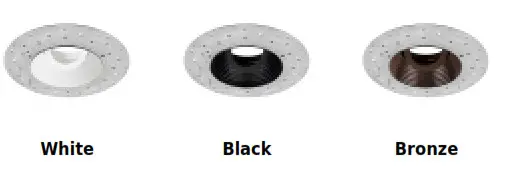

Finish
W White
B Black
BZ Bronze
Compatible Products
For use with 4″ Koto Twist-&-Lock Trimless

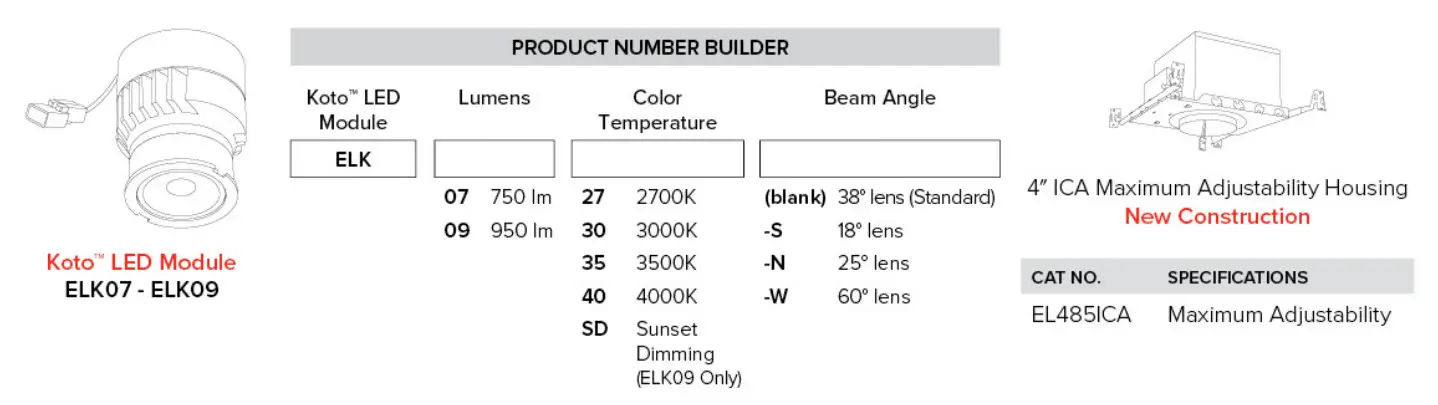

Koto”” LED Module & 4″ Dedicated LED ICA Housing

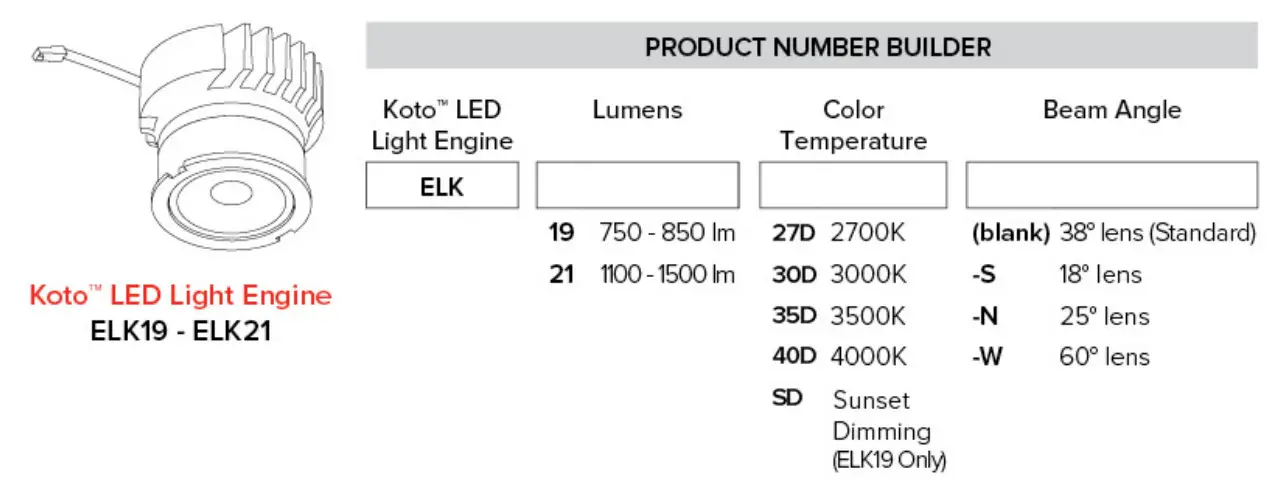

Koto Architectural LED Light Engine & 4″ Architectural ICA Housings

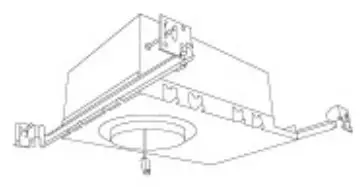

4″ High Lumen Maximum Adjustability ICA Housing 1500 Im (18.9W) w/ELK21 Series Module Not for use with ELK19 Series Module New Construction
| CAT NO. | SPECIFICATIONS |
| E4LK79ICAD | 120/277V 0-10V/Triac/ELV |

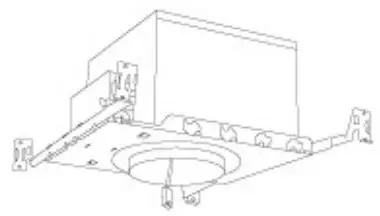

4″ Shallow Maximum Adjustability ICA Housing 850 Im (14.7W) w/ELK19 Series Module 1100 Im (14.7W) w/ELK21 Series Module New Construction
| CAT NO. | SPECIFICATIONS |
| E4LK98ICA | 120V – Triac/ELV |
| E4LK99ICAD | 120/277V – 0-10V/TriadELV |

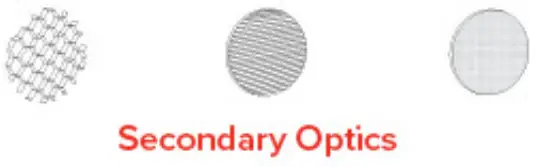

ACCESSORIES FOR KOTO LED MODULE & KOTO ARCHITECTURAL LED LIGHT ENGINE
 | EP731C | 18° Lens |
| EP732C | 25° Lens | |
| EP733C | 38° Lens | |
| EP734C | 60° Lens | |
| EP732C EP73X. EP734C hcluded | ||
 | EP735C | 15° |
| EP736C | 25° | |
| EP737C | 38° | |
| EP738C | 60° |
 | L45 | Hex Louver |
| L46 | Linear Louver | |
| L47 | Spread Louver |
2042 E. Vernon Ave., Vernon, CA 90058 • Tel (323) 231-2600 Fax (323) 231-3200 • elcolighting.com
© ELCO Lighting 2022. All rights reserved • Rev. 17 Dec 2021
• ELCO Lighting reserves the right to make specification and design changes without notice.
