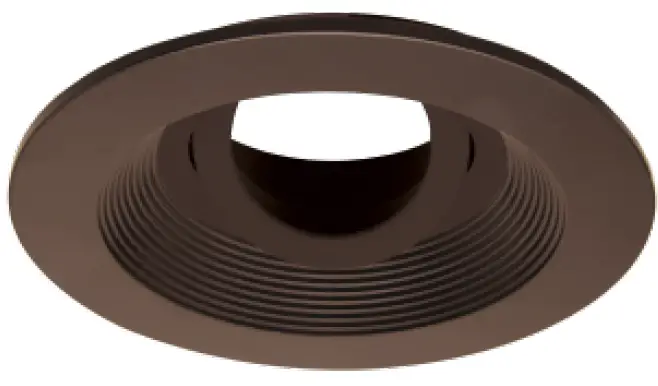

ELCO Lighting ELK4713BZ 4 Inch Unique Round Baffle for Koto Module
One Piece die-cast trims with Twist-&-Lock system for easy installation
| Features | Specifications | Options | |||
| Convenient Twist-&-Lock design for ease of installation. | Wet Location | UL Listed |
All White |
All Bronze | |
| Diecast construction for lasting quality. | |||||
| 5″ O.D. – 3 7/8″ I.D. – 1 3/4″ H | |||||
| 35° tilt (for EL485ICA), 25° tilt (for EL490 Series). | |||||
| Technical Details | |||||
| Construction: Diecast aluminum with a powder coated finish. | |||||
| Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module. Clips securely mount trim into the housing and keeps ring flush with ceiling. | Product Number | ||||
| Lamp: Koto™ LED Module. | Item | Finish | |||
| ELK4713BZ | All Bronze | ||||
|

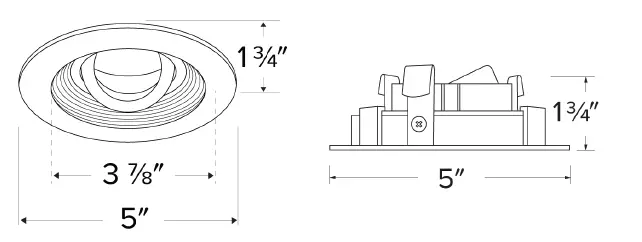

Dimensions: | |||||

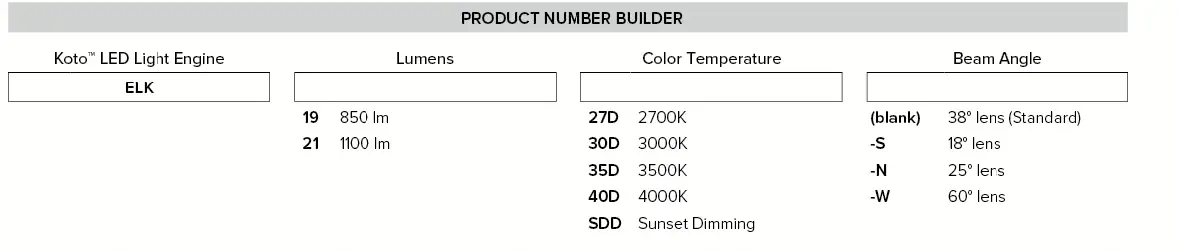

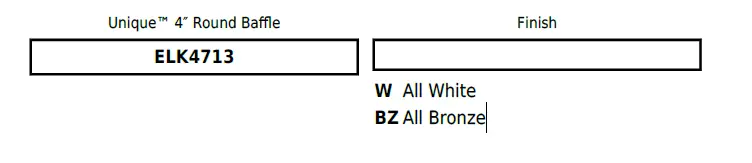

Product Number Builder
Example: ELK4713W
Koto” Commercial Construction LED Light Engine
ELK19 ELK21 Koto LED Light Engine

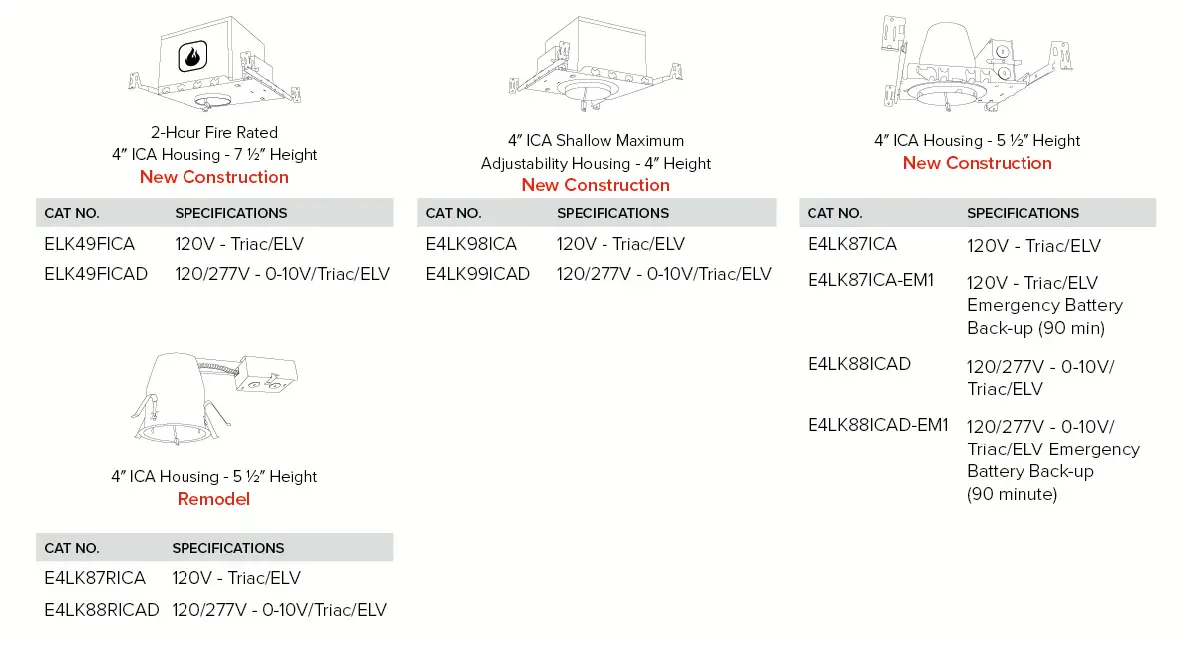

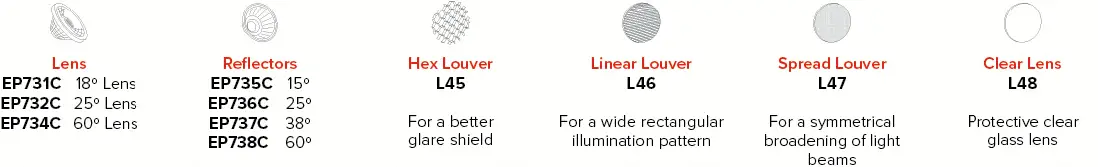

ACCESSORIES
4″ Commercial Construction Koto” Dedicated LED ICA Housings
- Project name:
- Fixture type:
- Date
2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600
Fax (323) 231-3200
elcolighting.com
© ELCO Lighting 2022. All rights reserved
Rev. 17 Dec 2021
ELCO Lighting reserves the right to make specification and design changes without notice.
