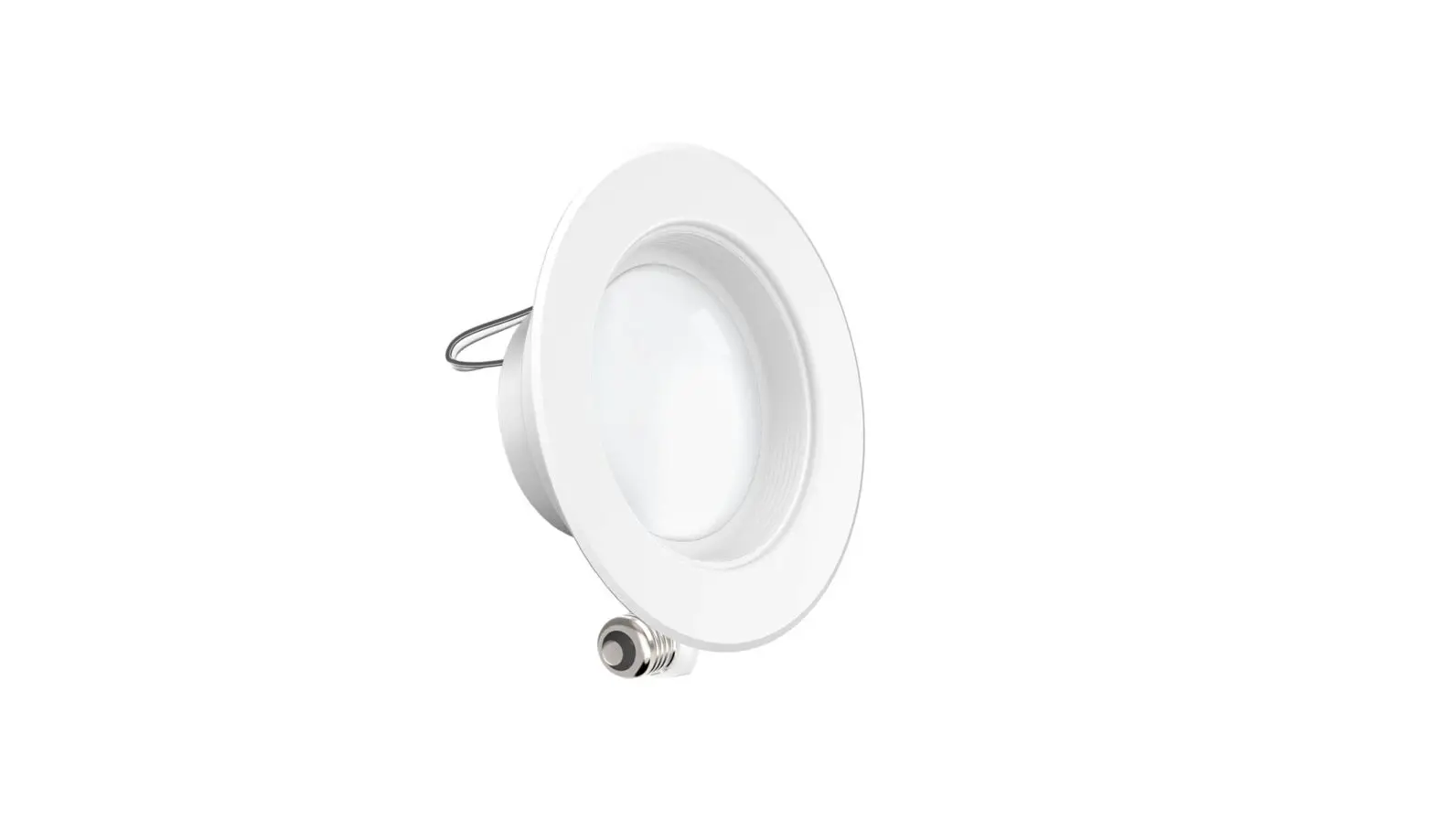

B071KDDMRL 4 Inch Baffle Downlight
The Brighter Choice

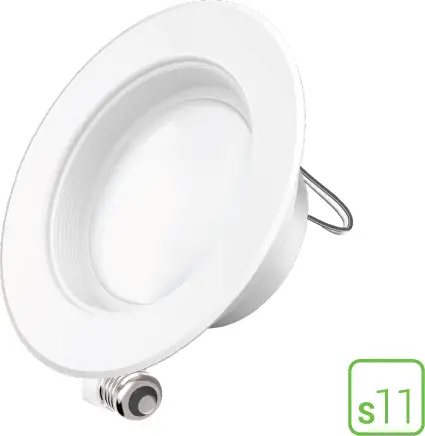

BAFFLE DOWNLIGHT 4″
Install Guide and Manual
COMPONENTS
TP24 Connector
E26 Base
EASY INSTALLATION
1. Turn off circuit breaker that provides power to the
light switch for the recessed lights.
2. Locate the housing.
•Remove previous fixture, fixture may be hot so
allow time to cool after turning off power
3. Ensure the size of the opening is 4”.
4. Determine the type of connector available.
•TP24 Connector
•E26 Base
5. Thread the appropriate adapter to make connection in the housing.
• Note: the wires may come lose from the connectors so ensure they are attached
6. Tuck all wires into the can.
7. Line up trim ring with opening.
8. Push downlight into can until secure. Compression
clips will hold retrofit light in place.
9. Turn on circuit breaker and test light.
WARNING
All electrical connections must be in accordance with local and National Electric
Code (N.E.C.) standards. Consult a qualified electrician if you are unfamiliar with
proper electrical wiring connections. Please review these instructions carefully
before proceeding.
WARNING: Risk of fire or electric shock. Do not alter, relocate or remove wiring
during installation.
WARNING: Do not make or alter any open holes in an enclosure of wiring or
electrical components during kit installation
SPECIFICATIONS
Voltage – 120V
Wattage – 11W
Suitable for Locations Ingress – Damp
Housing – Polycarbonate
Weight – 0.34lbs
Warranty – 7 years
