Inch Slim Smooth Downlight
Installation Guide

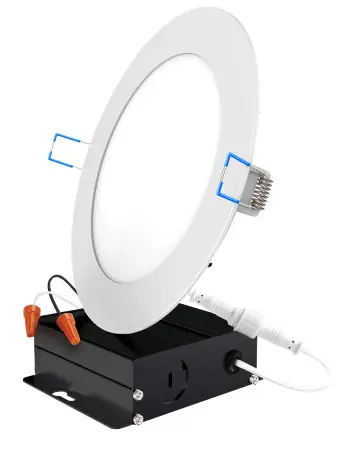

6 Inch Slim Smooth Downlight
COMPONENTS
IC Rated Junction Box
EASY INSTALLATION
 |  |
- Turn off a circuit breaker that provides power to the light switch for the recessed lights.

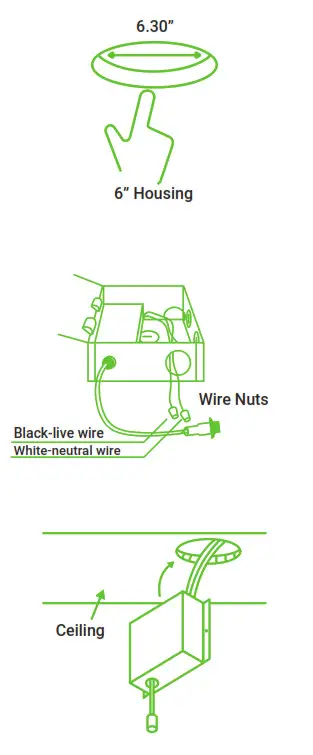

- Cut a hole in the ceiling in the desired location accordingly to the dimension indicated.
- Run an electrical wire from the power source (switch) through the mounting hole.

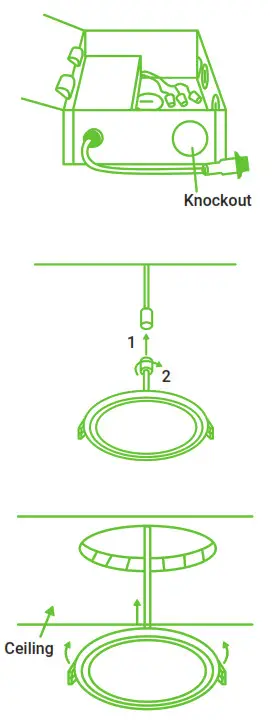

- Open the junction box and remove the appropriate knockout(s) on the side plate.
- Connect the supply wires to the junction box wires using the wire nuts provided.
• White to white
• Black to black - Tuck the connected wires inside the junction box and close the cover.
- Connect the junction box to the slim-down light. Tighten the connector by hand.
- Insert the junction box through the hole in the ceiling.
New construction applications: Hardwire box shall be secured to studs, joists, or similar fixed structural units.
Remodel applications: Do not require the hardwire box to be firmly secured after the mounting plates studs, joists, or structural units have been concealed. - Push up the spring clips to insert the luminaire in the opening in the ceiling.
- Turn on the circuit breaker and test the light.
WARNING
All electrical connections must be in accordance with local and National Electric Code (N.E.C.) standards. Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections. Please review the instructions carefully before proceeding.
WARNING: Risk of fire or electric shock. Do not alter, relocate or remove wiring during installation.
WARNING: Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
WARNING: Gloves are required when accessing the junction box for any routine maintenance.
WARNING: Not for use in ceilings with polystyrene insulation.
SPECIFICATIONS
| Voltage | Indoor |
| Wattage | Polycarbonate |
| Usage | 0.96lbs |
| Housing | 7 years |
| Weight | 120V |
| Warranty | 14W |
