SUNCO LIGHTING DL_SMDR4-11W-27K-1PK Smooth Downlight 4″ Installation Guide

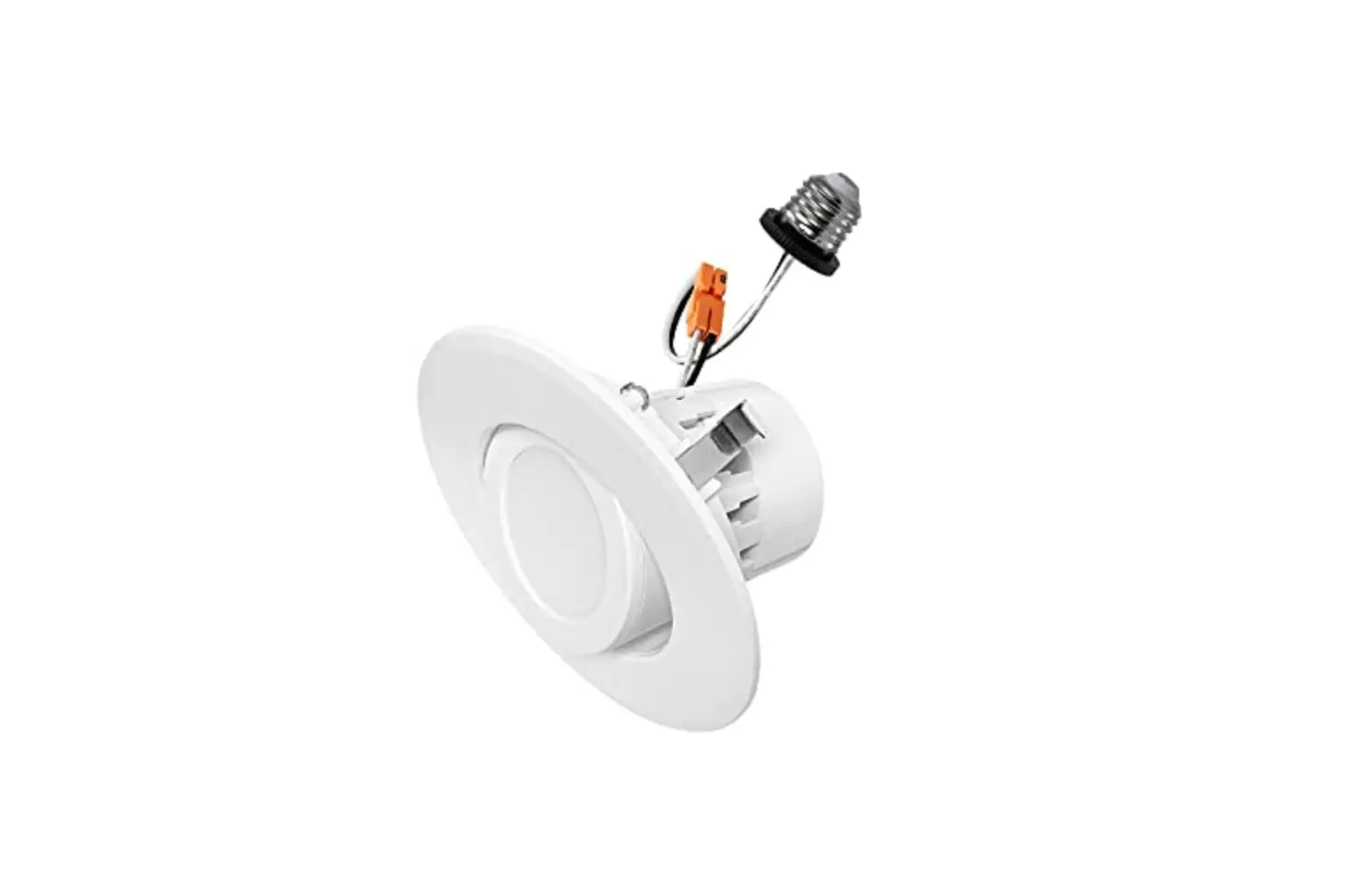

COMPONENTS
- TP24 Connector
- E26 Base
EASY INSTALLATION
- Turn off circuit breaker that provides power to the light switch for the recessed lights.
- Locate the housing.
Remove previous fixture, fixture may be hot so allow time to cool after turning off power. - Ensure the size of the opening is 4”.

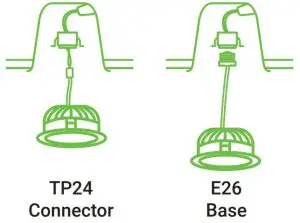

- Determine the type of connector available.
- TP24 Connector
- E26 Base
- Thread the appropriate adapter to make connection in the housing.

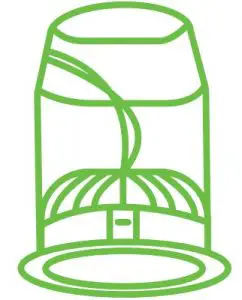

Note: the wires may come lose from the coonectors so ensure they are attached. - Tuck all wires into the can.

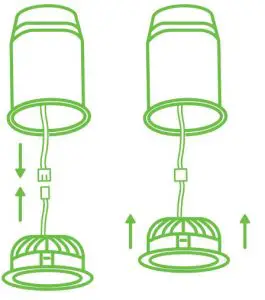

- Line up trim ring with opening.
- Push downlight into can until secure. Compression clips will hold retrofit light in place.
- Turn on circuit breaker and test light.
WARNING
All electrical connections must be in accordance with local and National Electric Code (N.E.C.) standards. Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections. Please review these instructions carefully before proceeding.
WARNING: Risk of fire or electric shock. Do not alter, relocate or remove wiring during installation.
WARNING: Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation
SPECIFICATIONS
| Voltage | 120V |
| Wattage | 11W |
| Suitable for Locations Ingress | Damp |
| Housing | Polycarbonate |
| Weight | 0.33lbs |
