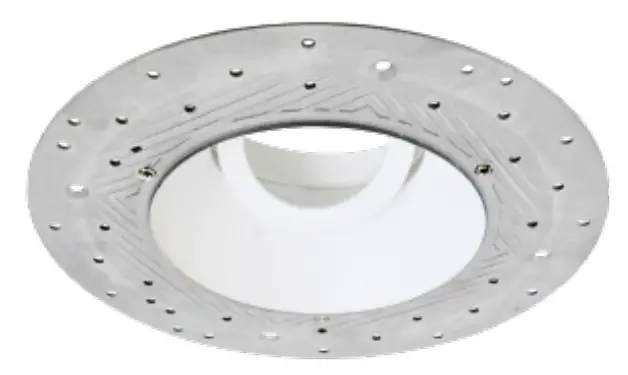

ELK430W 4 Inch Pex Round Trimless Adjustable Smooth Reflector Trim
Instructions Manual
Pex™ Precision die-cast trims with Twist-&-Lock system for easy tool-free installation
Features
- 4″ Trimless Smooth Reflector.
- ELK430 includes spackle frame
- ELK415 requires spackle frame EL4SFR
- 35° Adjustability.
- Convenient twist-lock design for easy installation.
- Lamp: Koto™ LED Module.
Technical Details
Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
Lamp: Koto™ LED Module.

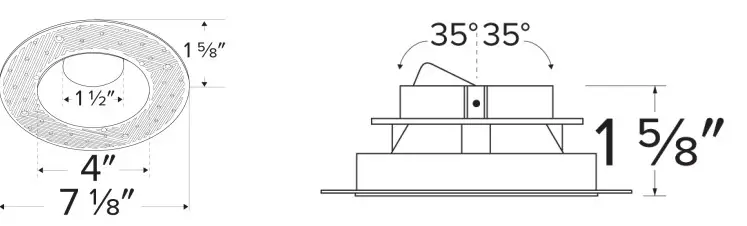

Dimensions:

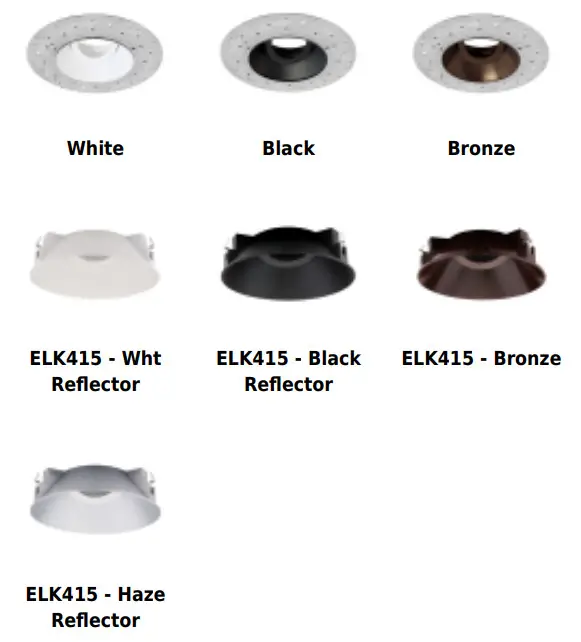

Options
Product Number
| Item | Description | Finish |
| ELK430W | Spackle frame with Reflector | White |

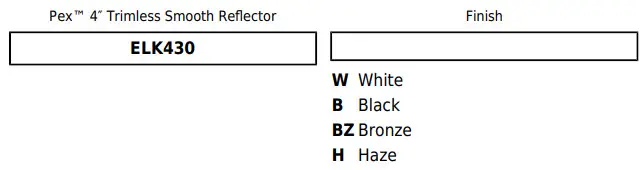

Product Number Builder
Example: ELK430W
Compatible Products
For use with 4″ Koto” Twist-&-Lock Trimless
Koto” LED Module & 4″ Dedicated LED ICA Housing

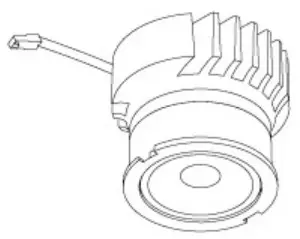

Koto”LED Module
ELKO7- ELKO9

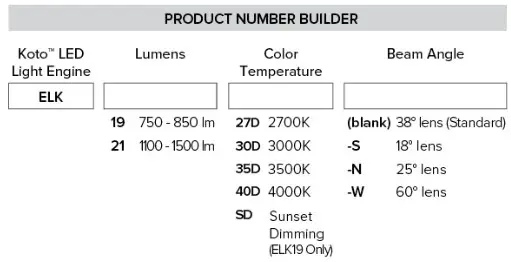

PRODUCT NUMBER BUILDER
| Koto” LED Module | Lumens | Color Temperature | Beam Angle | ||
| ELK | 07 750 1m 09 9501m | ||||
| 27 30 35 40 50 | 2700K 3000K 3500K 4000K Sunset Dimming ELKO9 Only] | (blank) -$ -N -W | 38° lens (Standard) 18°lens 25° lens 60° lens | ||

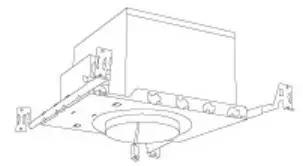

4″ ICA Maximum Adjustability Housing
New Construction
| CAT NO. | SPECIFICATIONS |
| EL485ICA | Maximum Adjustability |
Koto” Architectural LED Light Engine &4″ Architectural ICA Housings
Kot” LED Light Engine
ELK19 -ELK21
4″High Lumen Maximum Adj stability ICA Housing
1500 Im (18.9 wELK21 Series Module
Not for use with EUK 19 Series Module
New Construction
| CAT NO. | SPECIFICATIONS |
| E4LK47ICA | 157W-120V – Tac/ELV |
| E4LK48ICAD | 15.7W-120/277¥ 0-10V/Trac/ELV |
| E4LK79ICAD | 18.9W-120/277V 0-10V/Trac/ELV |
4″ Shallow Maximum Adjustability CA Housing
850 lm (4.7W wELK19 Series Module
1100 lm (4.7W wELK21 Series Module
New Construction
| CAT NO. | SPECIFICATIONS |
| E4LK98ICA | 120V- Triac/ELV |
| E4LK991CAD | 120/2TN – 0-10V/Triac/ELV |
ACCESSORIES FOR KOTO LED MODULE & KOTO ARCHITECTURAL LED LIGHT ENGINE
| EP731C | 18° Lens |
| EP732C | 25°Lens |
| EP733C | 38 Lens |
| EP734C | 60° Lens |
| £P32C. E733C.BP4C embodied | |
| EP73SC | 15° |
| EP736C | 25° |
| EP737C | 38° |
| EP738C | 60° |
| L45 | Hex Louver |
| L46 | Linear Louver |
| L47 | Spread Louver |
