Pex™ 4″ Round Trimless
Adjustable Smooth Reflector
Trim
Instructions

Pex™ Precision die-cast trims with Twist-&-Lock system for easy tool-free installation

Project name:________________
Fixture type:_________________
Date:______________________

Features

• 4″ Trimless Smooth Reflector.
• ELK430 includes spackle frame
• ELK415 requires spackle frame EL4SFR
• 35° Adjustability.
• Convenient twist-lock design for easy installation.
• Lamp: Koto™ LED Module.

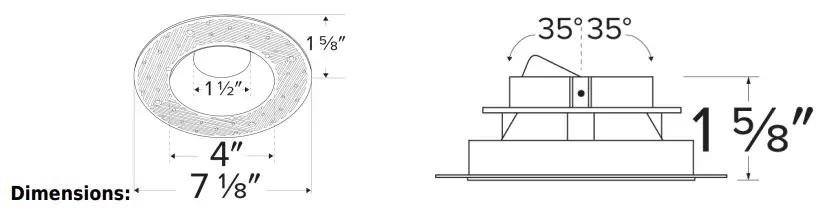

Technical Details

Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
Lamp: Koto™ LED Module.

Options

Product Number

Product Number Builder Example: ELK430W

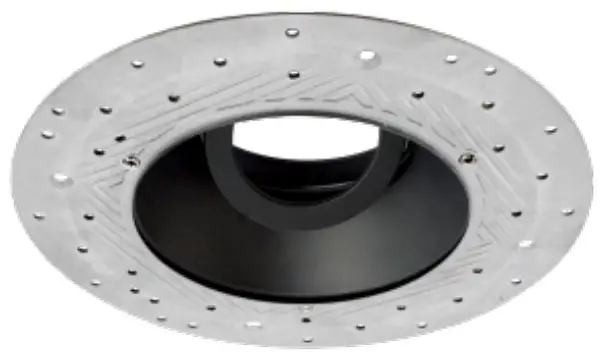

Pex™ 4″ Trimless Smooth Reflector ELK430

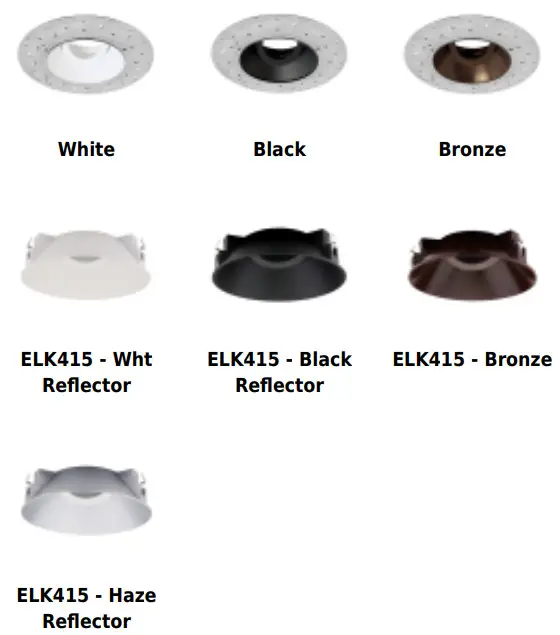

Finish
W White
B Black
BZ Bronze
H Haze

Compatible Products

For use with 4″ Koto Twist-&-Lock Trimless

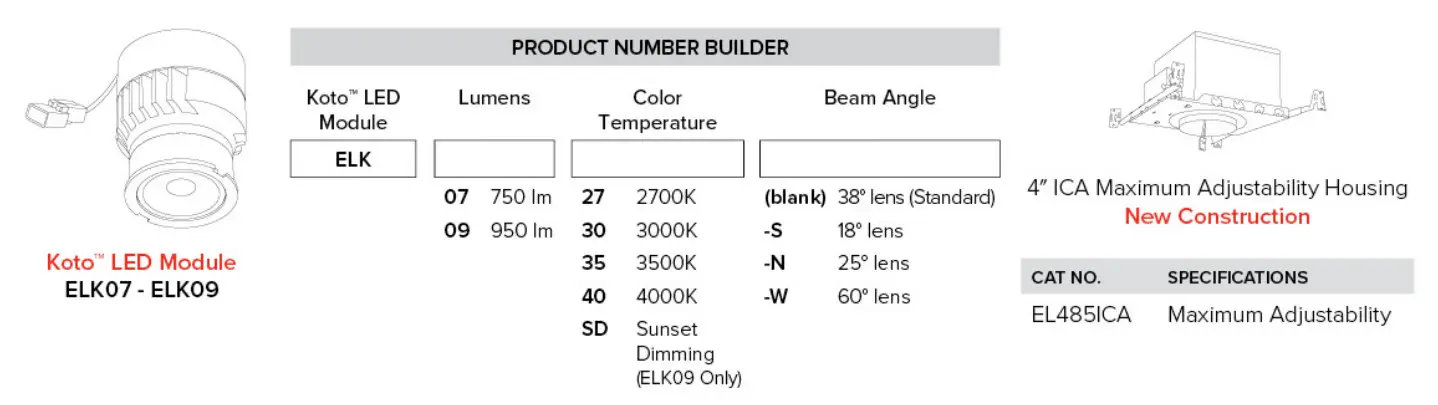

Koto”” LED Module & 4″ Dedicated LED ICA Housing

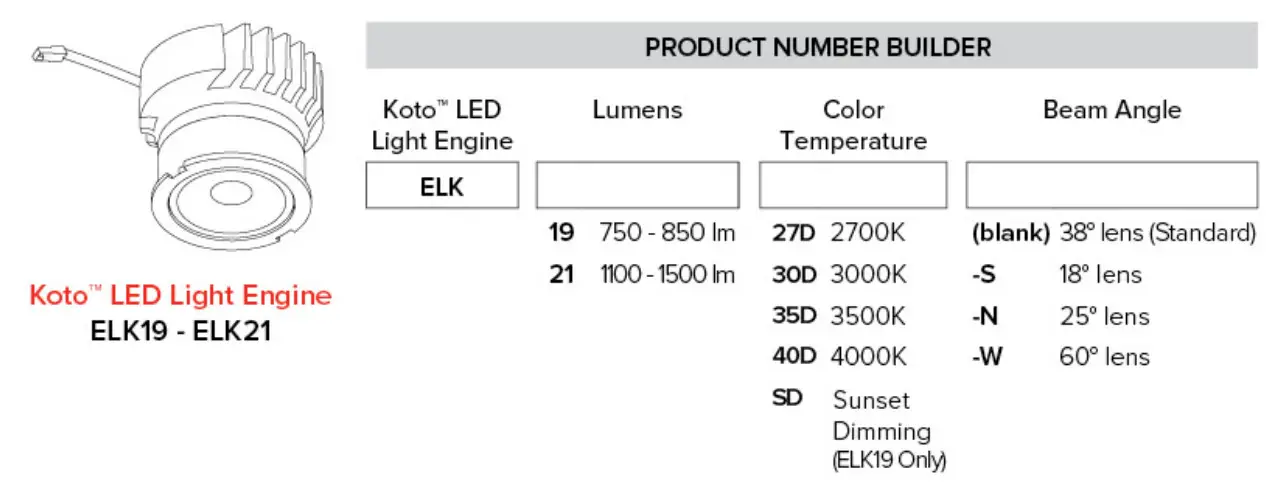

Koto Architectural LED Light Engine & 4″ Architectural ICA Housings

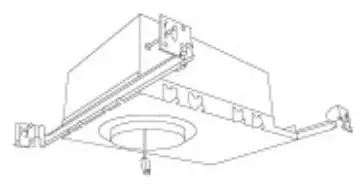

4″ High Lumen Maximum Adjustability ICA Housing 1500 Im (18.9W) w/ELK21 Series Module Not for use with ELK19 Series Module New Construction

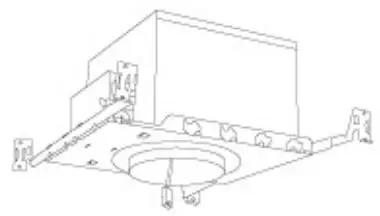

4″ Shallow Maximum Adjustability ICA Housing 850 Im (14.7W) w/ELK19 Series Module 1100 Im (14.7W) w/ELK21 Series Module New Construction

ACCESSORIES FOR KOTO LED MODULE & KOTO ARCHITECTURAL LED LIGHT ENGINE

	EP731C	18° Lens
	EP732C	25° Lens
	EP733C	38° Lens
	EP734C	60° Lens
	EP732C EP73X. EP734C hcluded

	EP735C	15°
	EP736C	25°
	EP737C	38°
	EP738C	60°

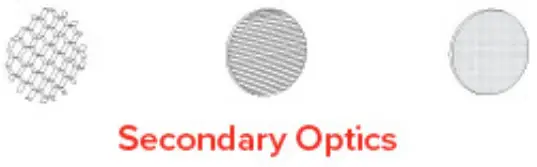

	L45	Hex Louver
	L46	Linear Louver
	L47	Spread Louver
