ELCO Lighting ELK415W Pex 4 Inch Round Trimless Adjustable Smooth Reflector Trim User Manual
Features
- 4″ Trimless Smooth Reflector.
- ELK430 includes spackle frame
- ELK415 requires spackle frame EL4SFR

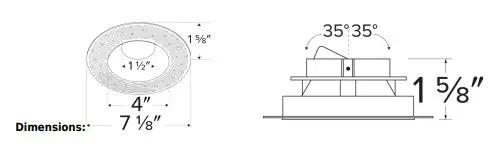

- 35° Adjustability.
- Convenient twist-lock desig
Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module. Lamp: Koto™ LED Module
Options

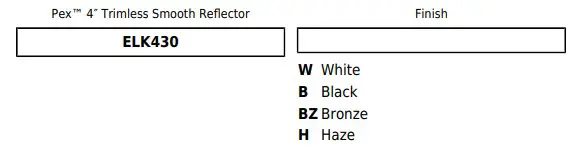

Product Number Builder Example: ELK430W

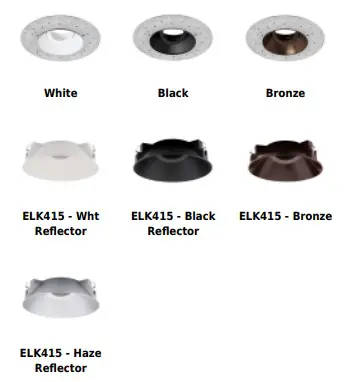

Item Description Finish
ELK415W Reflector only White
Product Number Builder Example: ELK430W
2042 E. Vernon Ave., Vernon, CA 90058 • Tel (323) 231-2600 Fax (323) 231-3200 • elcolighting.com
© ELCO Lighting 2022. All rights reserved • Rev. 17 Dec 2021 • ELCO Lighting reserves the right to make specification and design changes without notice

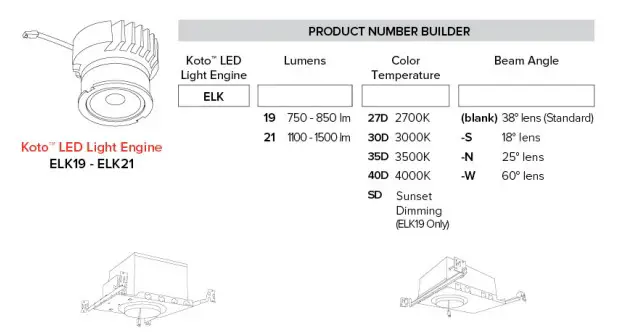

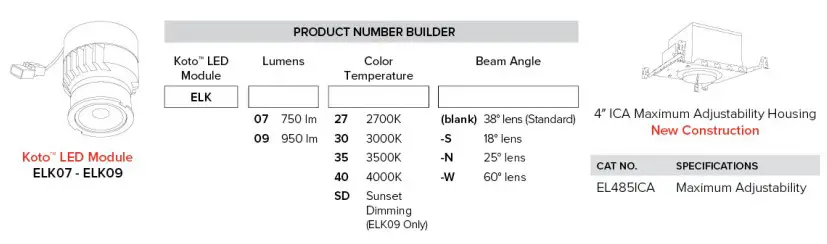

Kato™ LED Module & 4″ Dedicated LED ICA Housing
Kato™ Architectural LED Light Engine & 4″ Architectural ICA Housings
4″ High Lumen Maximum Adjustabi lity ICA Housing
1500 Im (18.9W) w!EL K21 Series Module
Not for use with ELK19 Series Module
New Construction
CAT NO. E4LK47ICA
E4LK48 ICAD
E4LK79ICAD
SPECIFICATIONS
15.7W – 120V – Triac/ELV
15.7W – 1201277V
0-10Vffriac/ELV
18.9W -120/277V
0-10Vffriac/ELV
CAT NO. SPECIFICATIONS
E4LK98ICA 120V – Tr iac/ELV
E4LK99ICAD 120/27N – 0 -10V/Triac/ELV

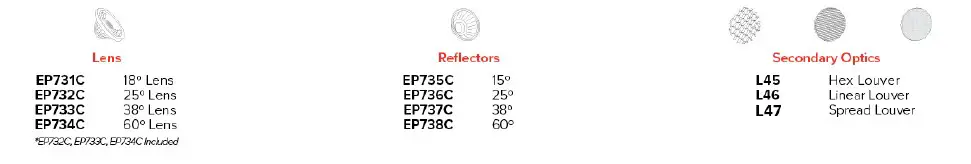

ACCESSORIES FOR KOTO~ LED MODULE & KOTO~ ARCHITECTURAL LED LIGHT ENGINE
