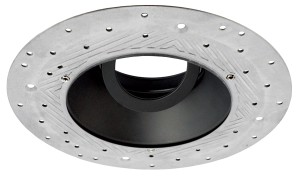

ELCO Lighting - logoELK415B 4 Inch Pex Round Trimless Adjustable Smooth Reflector Trim
Instruction ManualELCO Lighting ELK415B 4 Inch Pex Round Trimless Adjustable Smooth Reflector

Features

  • 4″ Trimless Smooth Reflector.
  • ELK430 includes a spackle frame
  • ELK415 requires spackle frame EL4SFR
  • 35° Adjustability.
  • Convenient twist-lock design for easy installation.
  • Lamp: Koto™ LED Module.

Technical Details

Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
Lamp: Koto™ LED Module.

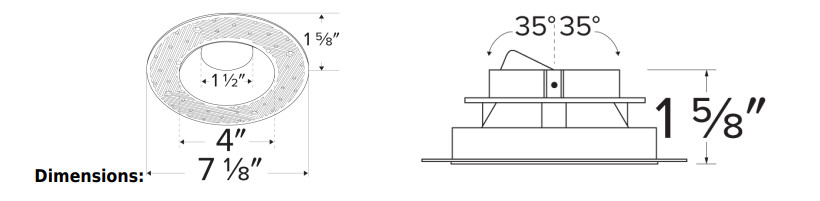

ELCO Lighting ELK415B 4 Inch Pex Round Trimless Adjustable Smooth Reflector - Figure 1

Options

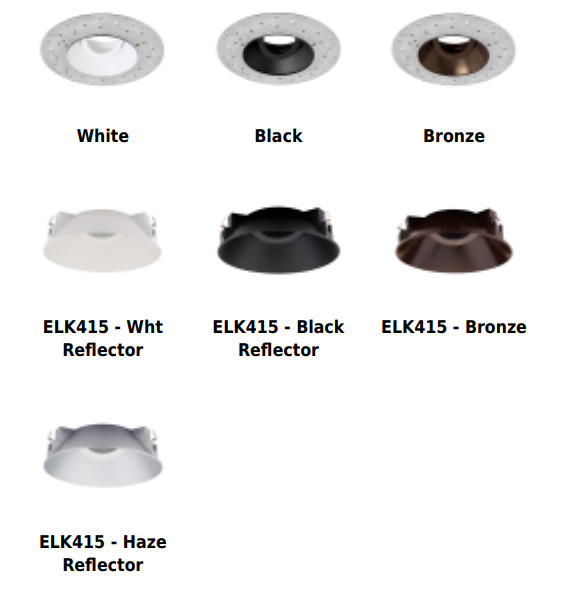

ELCO Lighting ELK415B 4 Inch Pex Round Trimless Adjustable Smooth Reflector - Figure 2

Product Number

ItemDescriptionFinish
ELK415BReflector OnlyBlack

Product Number Builder Example: ELK430W

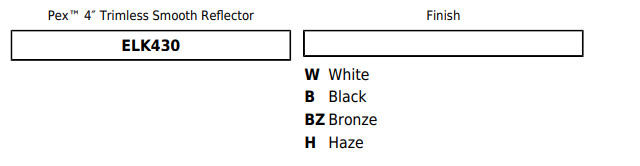

ELCO Lighting ELK415B 4 Inch Pex Round Trimless Adjustable Smooth Reflector - Figure 3

Koto™ LED Module & 4″ Dedicated LED ICA Housing

PRODUCT NUMBER BUILDER

ELCO Lighting ELK415B 4 Inch Pex Round Trimless Adjustable Smooth Reflector - Figure 4

Koto™ Architectural LED Light Engine &4″ Architectural ICA Housings
PRODUCT NUMBER BUILDER

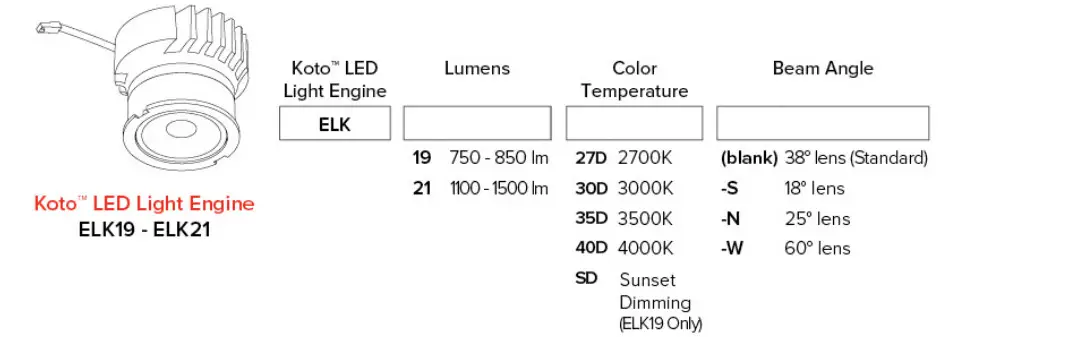

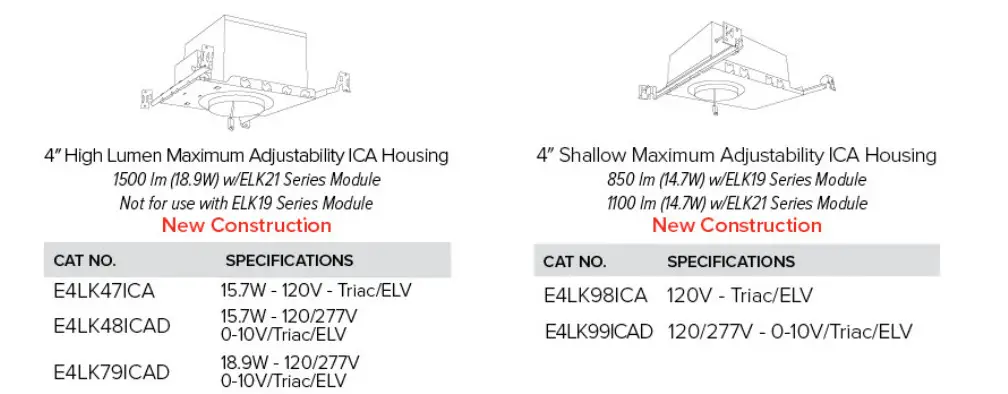

ELCO Lighting ELK415B 4 Inch Pex Round Trimless Adjustable Smooth Reflector - Figure 5ELCO Lighting ELK415B 4 Inch Pex Round Trimless Adjustable Smooth Reflector - Figure 6

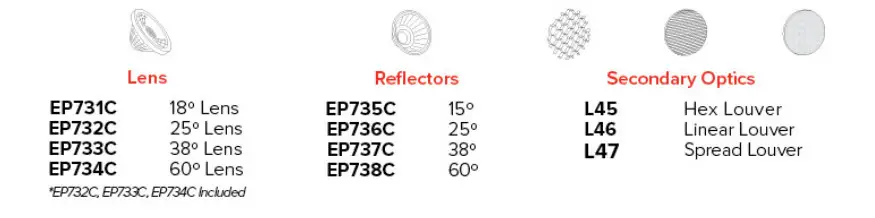

ACCESSORIES FOR KOTO LED MODULE & KOTO ARCHITECTURAL LED LIGHT ENGINE

ELCO Lighting ELK415B 4 Inch Pex Round Trimless Adjustable Smooth Reflector - Figure 7

2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600 Fax (323) 231-3200
elcolighting.com
© ELCO Lighting 2022. All rights reserved
Rev. 17 Dec 2021
ELCO Lighting reserves the right to make specification and design changes without notice.
