ELCO Lighting ELK4717W 4 Inch Unique Round Deep Reflector for Koto Module

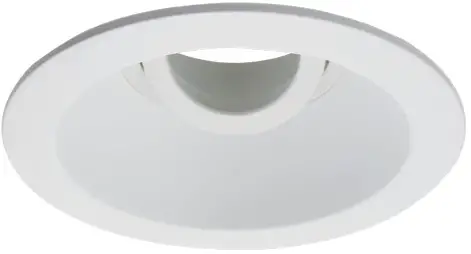

Urnique™ 4″ Round Deep Reflector for Koto™ Module

One Piece die-cast trims with Twist-&-Lock system for easy installation

• Project name———
• Fixture type———-
• Date——————-

Features

• Convenient Twist-&-Lock design for ease of installation.
• Diecast construction for lasting quality.
• 5″ O.D. – 3 7/8″ I.D. – 1 3/4″ H
• 35° Adjustability

Specifications

• Wet Location: UL Listed

Technical Details

• Construction: Diecast aluminum with a powder coated finish.
• Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module. Clips securely mount trim into the housing and keeps ring flush with ceiling.
• Lamp: Koto™ LED Module.

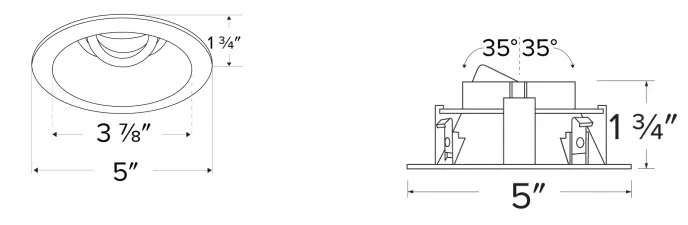

Dimensions

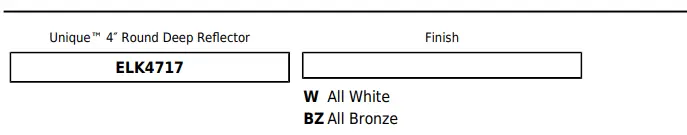

Product Number Builder

Example: ELK4717W

Options

Product Number

• Item: ELK4717W

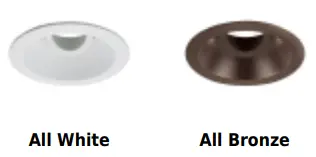

• Finish: All White

Compatible Products

For use with Koto System 4″ Trims

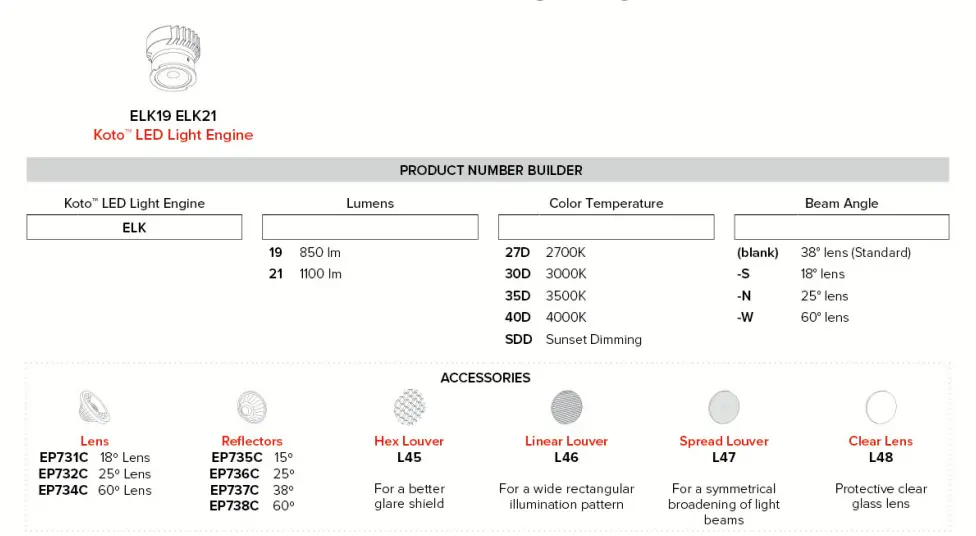

Koto” Commercial Construction LED Light Engine

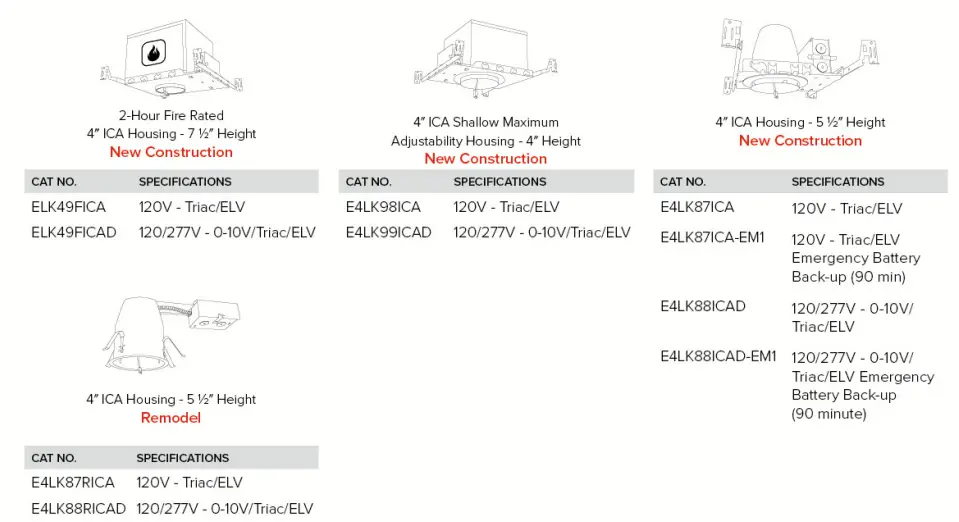

4″ Commercial Construction Koto” Dedicated LED ICA Housings

2042 E. Vernon Ave., Vernon, CA 90058

• Tel: (323) 231-2600
• Fax: (323) 231-3200
• elcolighting.com
• Tel: (323) 231-2600
• Fax: (323) 231-3200
• elcolighting.com

© ELCO Lighting 2022. All rights reserved

• Rev. 17 Dec 2021
• ELCO Lighting reserves the right to make specification and design changes without notice.
