ELCO Lighting ELK4714W 4 Inch Unique Square Reflector for Koto Module

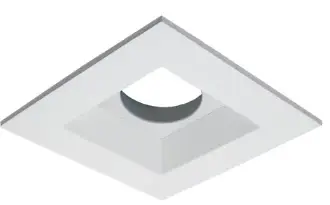

Unique™ 4″ Square Reflector for Koto Module
One Piece die-cast trims with Twist-&-Lock system for easy installation
Features
- Convenient Twist-&-Lock design for ease of installation.
- Diecast construction for lasting quality.
- 4 5/8″ O.D. – 2 7/8″ I.D. – 5/8″ H
- Square trim recommended for New Construction Housings only
Specifications
Wet Location UL Listed
Technical Details
- Construction: Diecast aluminum with a powder coated finish.
- Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module. Clips securely mount trim into the housing and keeps ring flush with ceiling.
- Lamp: Koto™ LED Module.

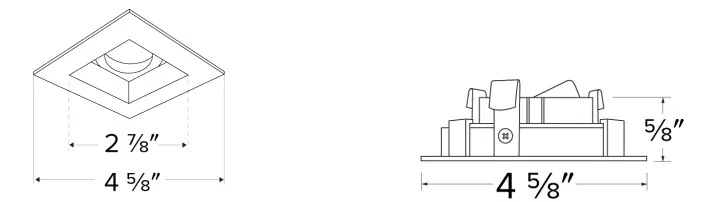

Dimensions
Options
Product Number

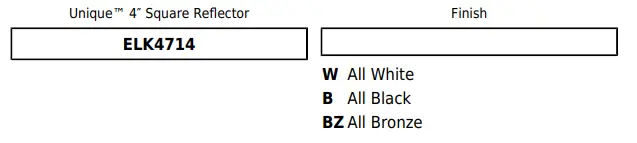

Product Number Builder
Example: ELK4714W

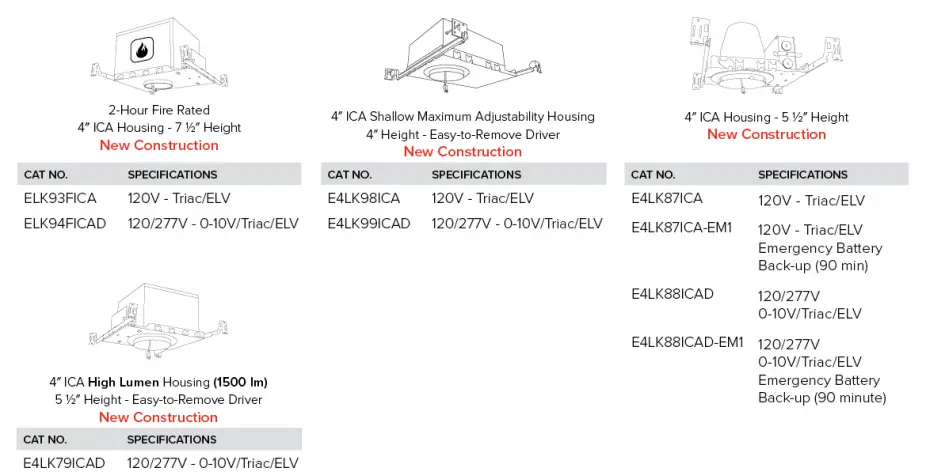

Compatible Products
For use with Koto” System 4″ Square Trims

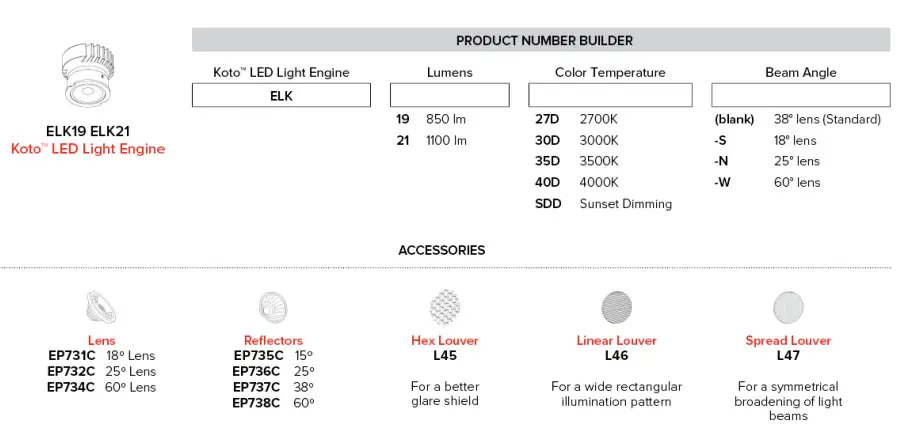

Koto Architectural LED Light Engine
4″ Architectural Koto” LED ICA Recessed Housings
