ELCO Lighting ELK4129BZ 4 Inch Pex Round Adjustable Gimbal
Instructions
Pex™ Precision die-cast adjustable trims with twist-&-lock system for easy Koto™ Module installation
Features
- 4″ Round Gimbal.
- 358° rotation.
- 35° tilt (for EL485ICA), 25° tilt (for EL490 Series).
- Convenient twist-lock design for easy installation.
- Lamp: Koto™ LED Module.
Technical Details
Construction: Diecast aluminum with a powder coated finish.
Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
Lamp: Koto™ LED Module.

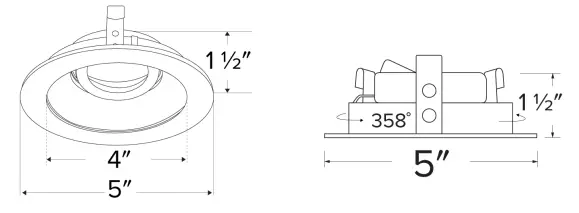

Dimensions:
Options
Product Number
Item Finish
ELK4129BZ All Bronze

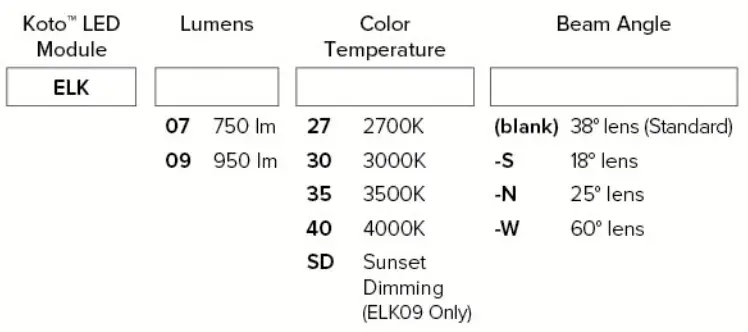

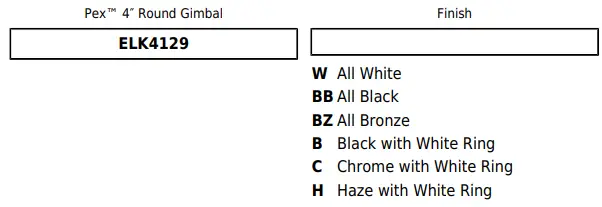

Product Number Builder
Example: ELK4129W
Kato™ LED Module

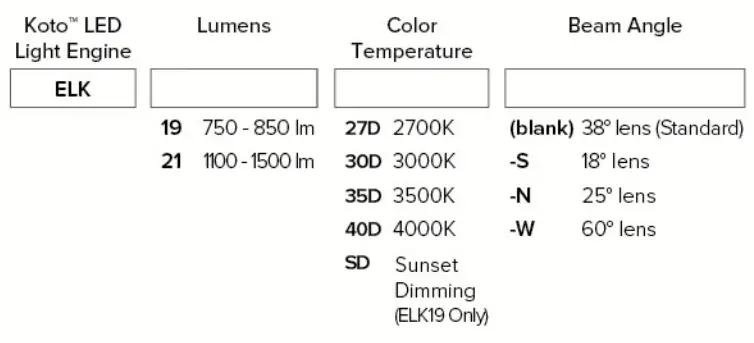

PRODUCT NUMBER BUILDER
ACCESSORIES
Lens
- EP731C 18° Lens
- EP732C 25° Lens
- EP733C 38° Lens
- EP734C 60° Lens
Reflectors
- EP735C 15°
- EP736C 25°
- EP737C 38°
Secondary Optics
- L45 Hex Louver
- L46 Linear Louver
- L4 7 Spread Louver

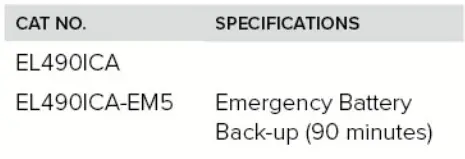

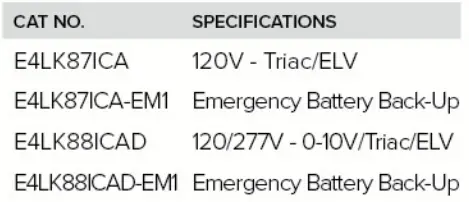

4″ Koto™ Dedicated LED ICA Housings
New Construction
4″ ICA Maximum Adjustability Housing
4″ ICA Housing
4″ ICA Housing
Remodel
2-Ho ur Fire Rated 4″ ICA Housing
New Construction
Koto™ Architectural LED Light Engine
PRODUCT NUMBER BUILDER
ACCESSORIES
Lens
- EP731C 18° Lens
- EP732C 25° Lens
- EP733C 38° Lens
- EP734C 60° Lens
Reflectors
- EP735C 15°
- EP736C 25°
- EP737C 38°
- EP738C 60°
Secondary Optics
- L45 Hex Louver
- L46 Linear Louver
- L4 7 Spread Louver

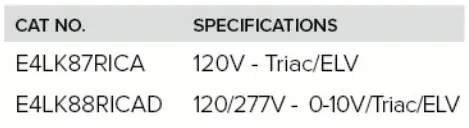

4″ Koto™ Architectural Recessed Housings

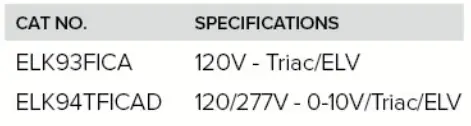

4″ High Lumen Maximum Adjustability ICA Housing 1500 Im (18.9W) w/ELK21 Series Module Not for use with ELK19 Series Module
4″ Shallow Maximum Adjustability ICA Housing 850 Im (14.lW) w!ELK19 Series Module 1100 Im /14.lW) w!ELK21 Series Module
4″ Standard ICA Housing
750 Im (11.BW) w!ELK19 Series Module
950 Im (11.BW) w/ELK21 Series Module
4″ Standard ICA Housing
750 Im /11.BW) w/ELK19 Series Module
950 Im (11.BW) w!ELK21 Series Module
Remodel
2-Hour Fire Rated 4″ ICA Housing
750 Im (11.BW) w!ELK/9 Series Module
950 Im (11.BW) w!ELK21 Series Module
