Elco Lighting Elk3620w Pex 3 Inch Round Adjustable Slot Aperture User Manual

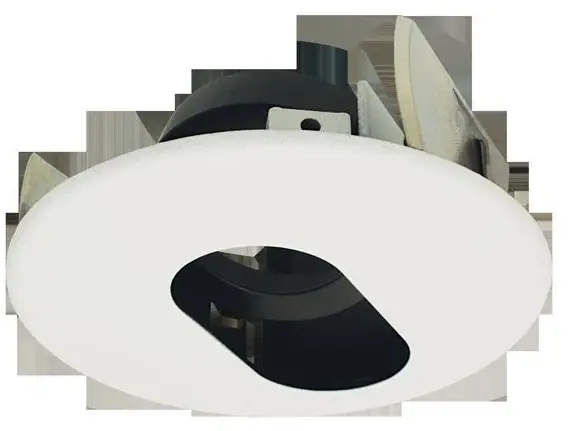

ELCO Lighting ELK3620W Pex 3 Inch Round Adjustable Slot Aperture

Features

• 45° Adjustability.
• 4 3/8″ O.D.
• Convenient twist-lock design for easy installation.
• Lamp: Koto™ LED Module.
• Recommended to be used with Maximum Adjustability Housings

Technical Details

• Construction: Diecast aluminum with a powder-coated finish.
• Installation: Twist-lock design allows for easy mounting onto the Koto™ LED Module.
• Lamp: Koto™ LED Module only.

Dimensions

Product Number

Item Finish

• ELK3620W Black Slot/White Ring

2042 E. Vernon Ave., Vernon, CA 90058 • Tel (323) 231-2600 Fax (323) 231-3200 • elcolighting.com
© ELCO Lighting 2022. All rights reserved • Rev. 03 Feb 2022 • ELCO Lighting reserves the right to make specification and design changes without notice.
