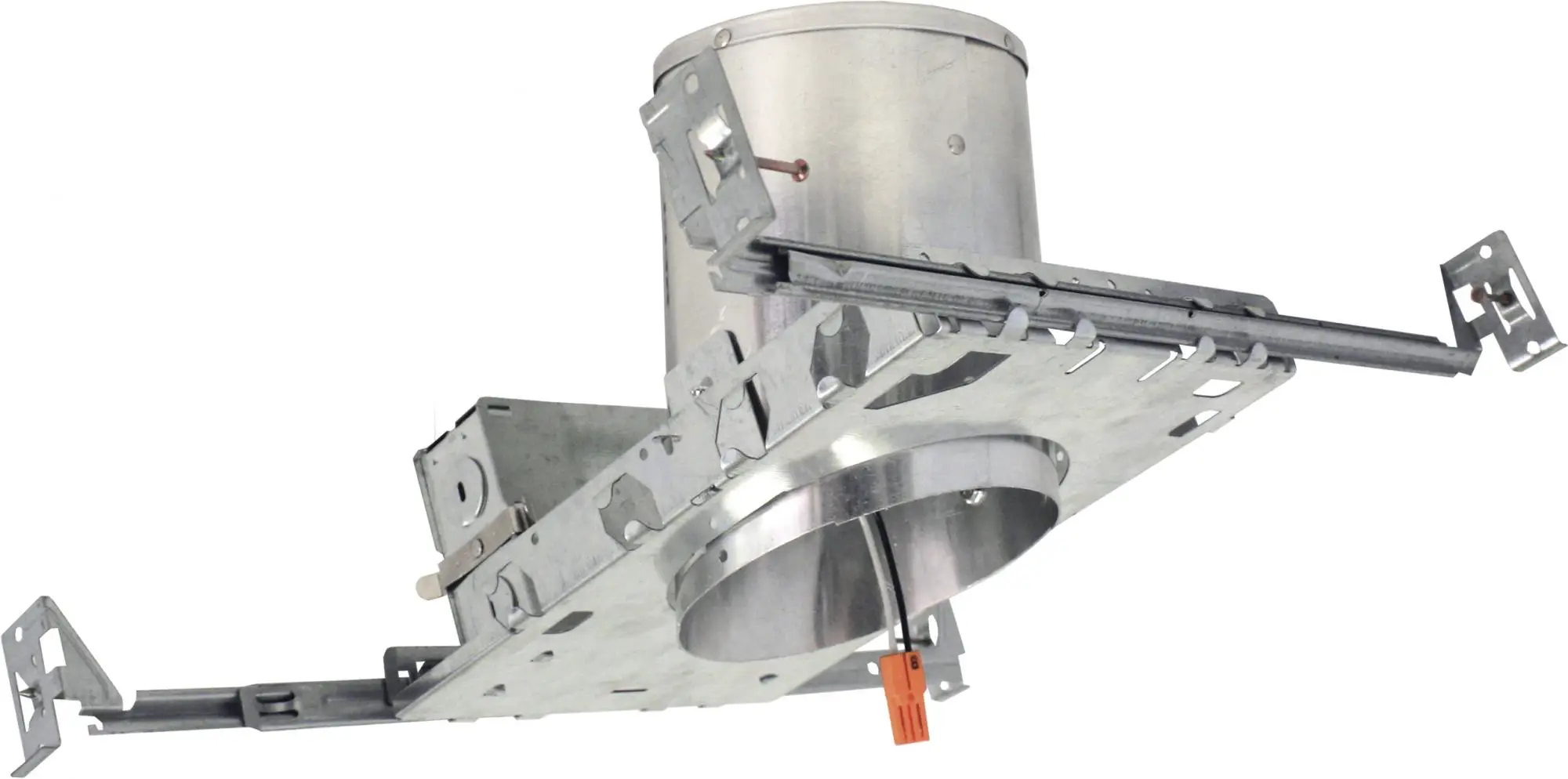

ELCO Lighting EL470ICA 4 Inch LED IC Airtight Sloped Ceiling Single Wall New Construction Housing

ELCO Slant allows for installation in sloped ceilings ranging from 2/12 (10°) to 6/12 (26.5°). Can be used in insulated ceilings. Fits in 2″ x 8″ joist construction.

Features

• Allows for direct contact with insulation.
• Aluminum Construction: Single Wall Housing.
• Designed for use in 2/12 to 6/12 sloped ceilings.
• California Title 24 (JA8-2016-E).

Specifications

• Wattage 14W
• Voltage 120V
• Damp Location Listed

Technical Details

Construction:

• IC Rated for Direct Contact with Insulation.
• Designed for use in 2/12 to 6/12 sloped ceiling. Housing adjusts to accommodate up to 3/4” ceiling thickness. Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.
• Installation: Designed for ceiling plenums where 2×8 joists or taller are used. High-strength hanger bars can easily be nailed to joists. A template for hole cutout is provided with each housing. Suitable for T-grid and drop ceiling applications. See the installation sheet for detailed information.
• Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade-size conduit knockouts and four pry-out knockout slots for easy Romex installation.
• Hanger Bars: Pre-installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up to 24″ and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. The integral leveling flange allows for single-person installation while aligning the housings with the joists.
• Electrical: Rated for 120V input.
• Compatible Trims: EL42330W, EL42530W.

Listings:

• UL Listed for Damp Location.
• UL Listed for Direct Contact with Insulation and Combustible Material.
• UL Listed for Feed Through.
• AirTight Per ASTM E-283.
• California Title 24 (JA8-2016-E).

Warranty: ELCO Products are built to last. 5-year Limited warranty.

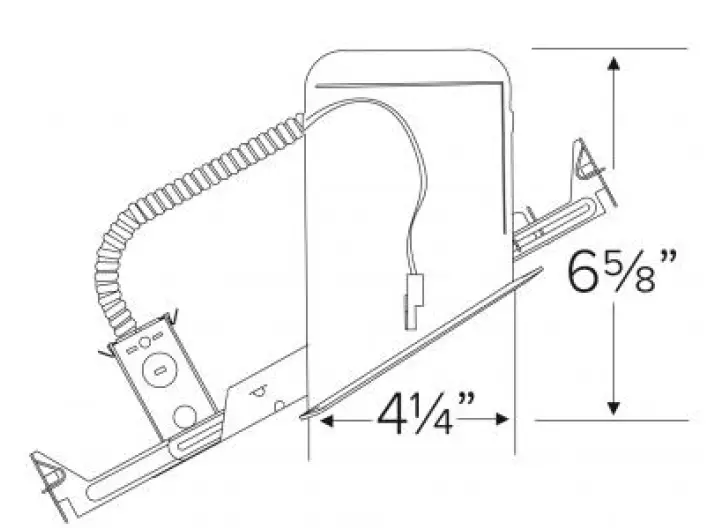

Dimensions

Product Number

• Item /Watts /Voltage
• EL470ICA /14W/ 120V

4″ LED Sloped Inserts

2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600
Fax (323) 231-3200
elcolighting.com
© ELCO Lighting 2022. All rights reserved
Rev. 25 Aug 2021
ELCO Lighting reserves the right to make specification and design changes without notice
