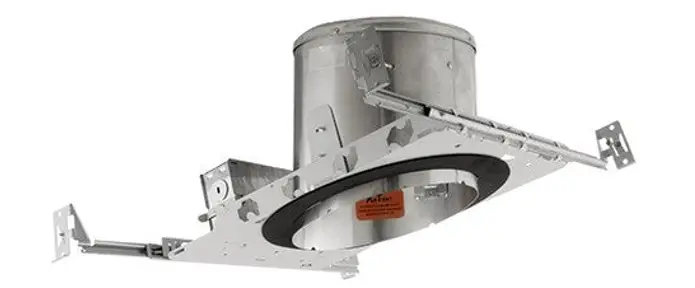

EL918ICA 6 Inch Sloped Ceiling Medium Base IC Airtight Single Wall New Construction Housing
User Manual

ELCO Slant allows for installation in sloped ceilings ranging from 2/12 (10°) to 6/12 (26.5°). Can be used in insulated ceilings. Fits in 2″ x 8″ joist construction.

Features

• Airtight aluminum Single Wall Construction.
• Integral thermal protector guards against improper lamping.
• Designed for use in 2/12 to 6/12 sloped ceiling.
• Socket: Medium base E26.
• Compatible with Medium Base Incandescent, CFL or LED
• Lamp MAX. 75W. Works with LED Quick-Connect Inserts with PSA30 Socket Adapter.

Specifications

Technical Details

Construction:
IC Rated for Direct Contact with Insulation.
Designed for use in 2/12 to 6/12 sloped ceilings.
Housing adjusts in the frame to accommodate up to 1 1/4” ceiling thickness.
Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2×8 joists or taller are used. High-strength hanger bars can
easily be nailed to joists. A template for hole cutout is provided with each housing. Suitable for T-grid and drop
ceiling applications. See the installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade-size conduit knockouts and four pry-out knockout slots for easy romex installation.
Hanger Bars: Pre-installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T- Bars. Spans up to 24″ and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.
Electrical:

• Rated for 120V or 277V input.
• For 277V step down to 120V housing consult factory.

Trims: Compatible with ELCO Line Voltage Slope Trims.
Listings: UL Listed for Damp Location.
UL is Listed for Direct Contact with Insulation and Combustible Material.
UL is Listed for Feed Through.
Meets restricted air flow requirements (Per ASTM E-283 Standard).

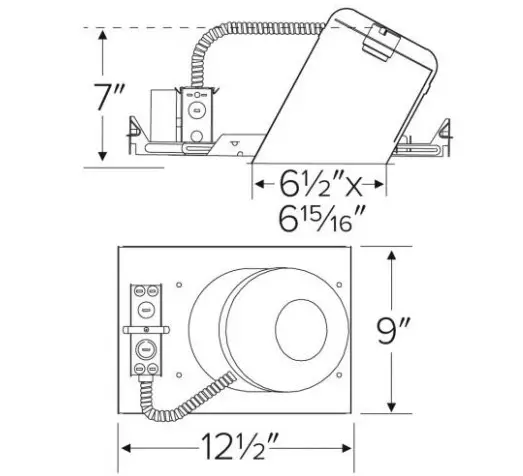

Dimensions

Product Number

2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600 Fax (323) 231-3200
 elcolighting.com
© ELCO Lighting 2022. All rights reserved
Rev. 25 Aug 2021
ELCO Lighting reserves the right to make specification and design changes without notice.
